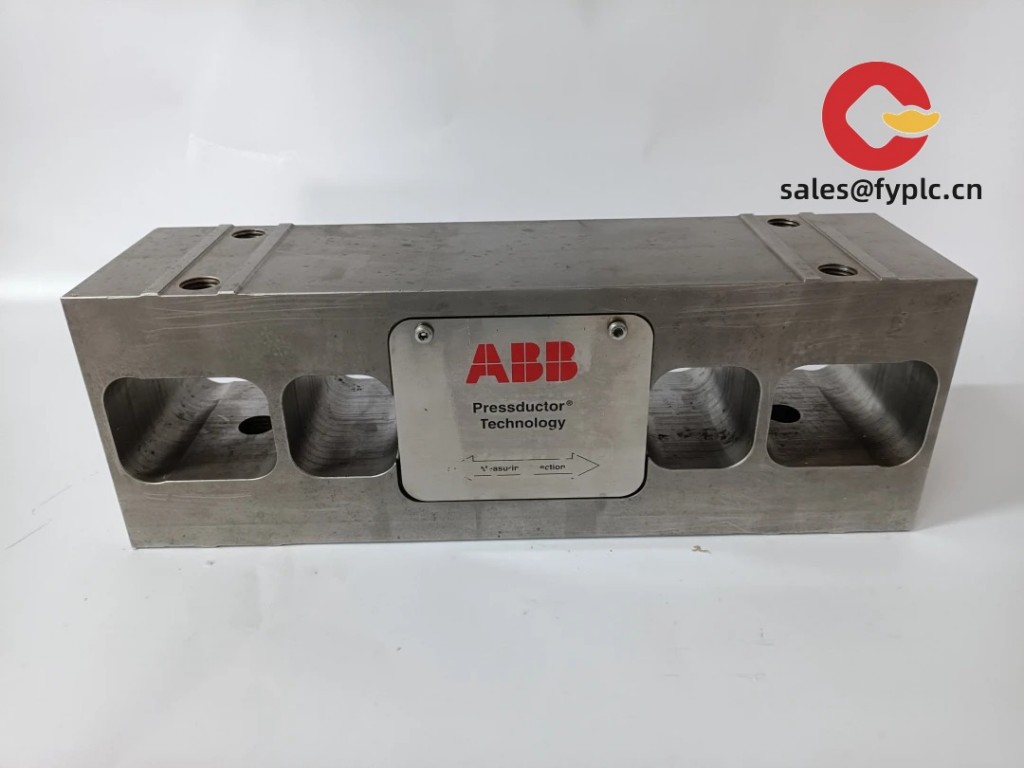

ABB PFCL201CE-10.0kN — Compact Force Transducer for Dynamic Load Monitoring
Let’s cut to the chase: the PFCL201CE-10.0kN isn’t just another load cell—it’s ABB’s answer to high-precision, low-profile force measurement in space-constrained industrial automation setups. From my experience supporting integrators on packaging lines and hydraulic test rigs, this model stands out when you need repeatable ±0.1% FS accuracy *without* sacrificing mechanical robustness or mounting flexibility.
Key Features
- Integrated signal conditioning: Outputs a clean, amplified 4–20 mA analog signal—no external amplifier needed. One thing I appreciate is how much it simplifies cabinet wiring, especially in retrofit projects where panel space is tight.
- Compact, flush-mount design: Only 25 mm thick with M12 threaded ends (10.0 kN version). You might notice that it fits neatly between servo actuators and custom tooling plates where traditional S-beam or canister cells simply won’t clear.
- Stainless steel construction & IP67 rating: Holds up well in washdown environments—seems to be a favorite among food-grade conveyor tension monitoring applications.
- Temperature-compensated electronics: Zero shift stays under ±0.02% FS/°C across its operating range. In many cases, that means skipping quarterly recalibration unless ambient conditions are unusually volatile.
- Factory-calibrated & NIST-traceable: Comes with individual calibration certificate (including sensitivity, nonlinearity, hysteresis data) — useful when your QA team asks for proof before commissioning.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand / Model | ABB PFCL201CE-10.0kN |
| HS Code | 9026.20.80 (Measuring devices for mechanical quantities) |
| Rated Capacity | 10.0 kN (≈ 1020 kgf) |
| Power Requirements | 24 V DC ±10%, 35 mA typical |
| Dimensions (L × W × H) | 90 mm × 42 mm × 25 mm (M12 × 1.25 threads both ends) |
| Weight | ≈ 210 g |
| Operating Temperature | −10 °C to +70 °C (compensated range: 0–50 °C) |
| Signal Output | 4–20 mA, 2-wire loop-powered, SIL2 capable |
| Communication Interface | None (analog-only); optional fieldbus versions exist (e.g., PFCL201CI with IO-Link), but not applicable to CE-10.0kN |
| Installation Method | Axial tension/compression via threaded ends; requires rigid, parallel mounting surfaces — no side-load tolerance beyond ±1% FS |
Application Fields
This transducer shows up where precision meets practicality: robotic end-of-arm tooling (EoAT) force feedback loops, servo-controlled press-fit stations, inline spring testing jigs, and even OEM-built leak-test fixtures where force ramping must stay within ±0.5 N of setpoint. One customer in Sweden used it to replace a bulky strain-gauge-based solution on a vacuum-forming mold clamp — cut installation time by 60% and eliminated two signal conditioners from their control cabinet.
Advantages & Value
- Reduced integration risk: Pre-calibrated, pre-wired, and compatible with most PLC analog inputs — avoids the guesswork often tied to sourcing third-party signal conditioners.
- No hidden compatibility traps: Works seamlessly with Siemens S7-1200/1500, Rockwell CompactLogix, and Beckhoff CX series without special configuration blocks.
- Long-term TCO savings: While not the cheapest entry-level cell, its stability typically extends recalibration intervals to 12–18 months — and downtime per recalibration drops significantly since no disassembly is required.
- Local support leverage: ABB’s regional service centers can verify calibration or provide replacement units fast — something we’ve seen make a real difference during urgent line-down scenarios.
Installation & Maintenance
Mount it in a standard 23″ DIN rail cabinet with ≥150 mm clearance around the unit for airflow — though honestly, heat buildup rarely becomes an issue given its low power draw. Always torque the M12 threads to 25 N·m (use a calibrated wrench; over-torquing distorts the sensing element). Avoid routing power cables alongside the 4–20 mA output wire — keep them separated by at least 100 mm or use shielded twisted pair if running parallel over >2 m. For routine care: inspect threads and sealing surfaces every 6 months, wipe the housing with isopropyl alcohol if exposed to oils or dust, and log zero-point drift annually. Firmware updates aren’t applicable here (it’s analog-only), but ABB does release updated calibration procedures — worth checking their portal once per year.
Quality & Certifications
CE marked (EMC Directive 2014/30/EU, LVD 2014/35/EU), RoHS 2011/65/EU compliant, and UL Recognized (E350422) for industrial control equipment. It carries ABB’s standard 365-day warranty — covering material defects and workmanship, including replacement if drift exceeds spec under normal operating conditions. Note: warranty doesn’t cover damage from overtightening, side-loading, or exposure beyond IP67-rated conditions (e.g., submersion or steam cleaning).
Our Order Placement Process and Guarantees
- Warranty: Full 365-day coverage from date of delivery.
- Delivery: Typically ships within 1 week if in stock (we hold strategic inventory in EU and US hubs); maximum lead time is 30 days — never longer, even during peak season.
- Payment: 50% advance via wire transfer or credit card; balance due before dispatch.
- Shipping: Fedex, UPS, or DHL Express — all with real-time tracking and insurance included. No PO boxes accepted; signature required on delivery.
