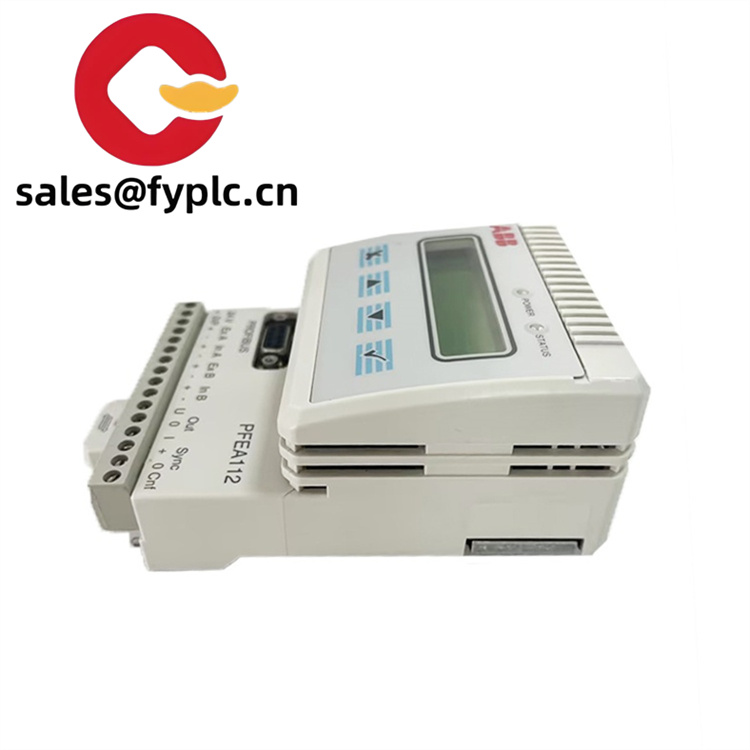

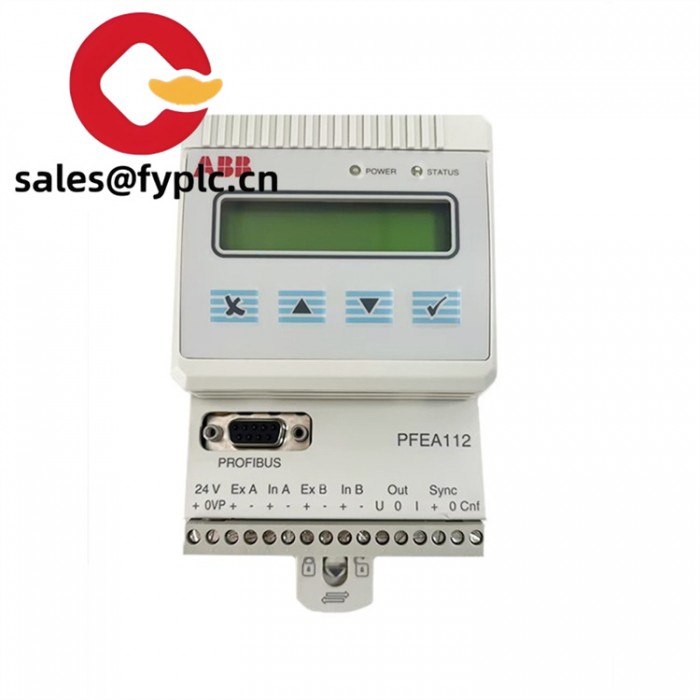

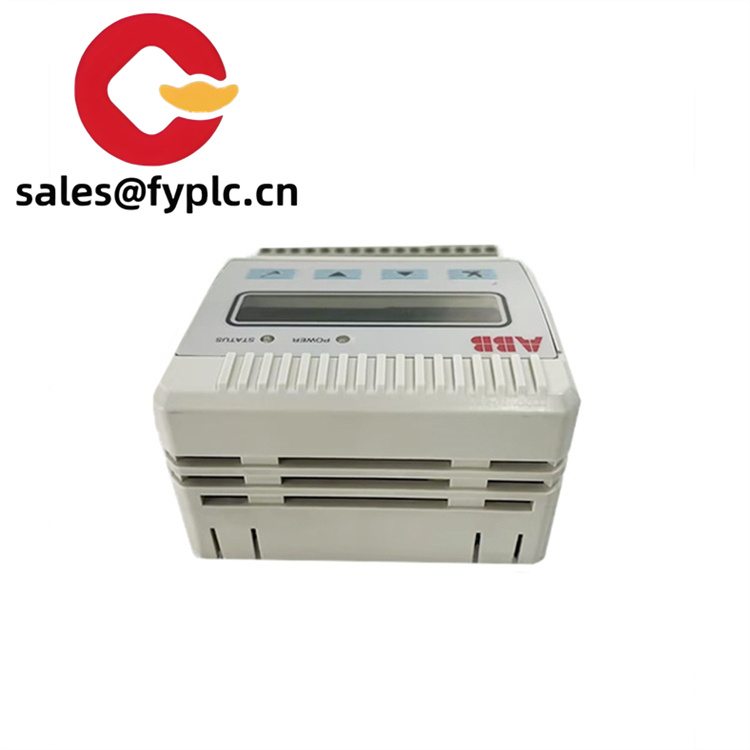

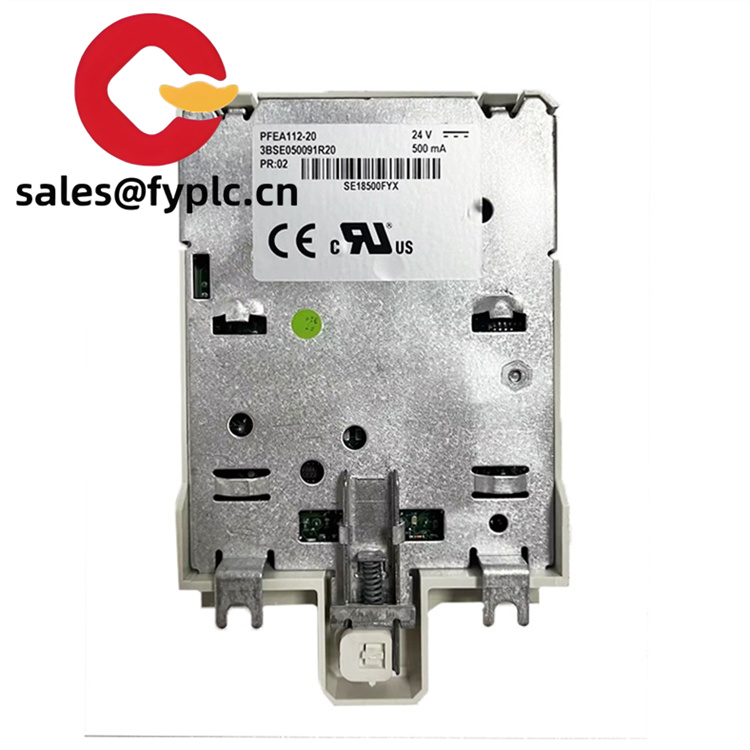

ABB PFEA112-20-3BSE030369R002 | Tension Controller Sensor Automation Spare Parts
PFEA112-20-3BSE030369R002
Engineered by ABB, a renowned name in industrial technology, the PFEA111 – 65 3BSE050090R65 is tailored for applications such as web handling systems, paper mills, and textile manufacturing. In web handling, for instance, maintaining the right tension on the moving web materials is essential to prevent wrinkling, tearing, or improper winding. The PFEA111 – 65 comes into play here, accurately measuring the tension and providing the necessary feedback to the control systems, ensuring that the web moves smoothly through the production process. In paper mills, it helps in controlling the tension of the paper pulp during the papermaking process, which is vital for producing uniform – quality paper sheets. Similarly, in textile manufacturing, it ensures that the threads are under the correct tension during weaving, knitting, or spinning operations, contributing to the production of high – quality fabrics.
|
Label
|
Specification
|
|
Model Number
|
PFEA111 – 65 3BSE050090R65
|
|
Brand
|
ABB
|
|
Type
|
Compact Tension Measurement Unit
|
|
Input Voltage
|
24 V DC (for IP 65 – unit (NEMA 4))
|
|
Operating Temp
|
+5 °C to +55 °C (operating); -40 °C to +70 °C (non – operating)
|
|
Communication Method
|
Equipped with RS – 485 Modbus – RTU for seamless data exchange
|
|
Mounting
|
Enclosure designed for wall mounting
|
|
Weight
|
Approximately 1.9 kg
|
|
Certifications
|
Meets international standards, ensuring reliability and safety
|
|
Dimensions
|
180 x 120 x 100 (height x width x depth in mm)
|
|
IP Rating
|
IP65, protecting against dust and water jets, suitable for harsh industrial environments
|
|
Protocols Supported
|
RS – 485 Modbus – RTU
|
PFEA112-20-3BSE030369R002
The ABB PFEA111 – 65 3BSE050090R65 offers a plethora of functional strengths that set it apart in the industrial landscape. Engineered with advanced microprocessor – controlled technology, it ensures unparalleled accuracy in tension measurement. This high precision is vital as even the slightest deviation in tension can lead to product defects or inefficiencies in industrial processes. The unit has been designed to be highly resilient, with an IP65 protection class. This means it can withstand harsh industrial environments, including exposure to dust, water jets, and mechanical vibrations. Operators benefit from its robust construction, which is made from durable materials that can endure the rigors of continuous industrial use.
Interoperability is another key advantage of the PFEA111 – 65. With its RS – 485 Modbus – RTU communication interface, it can be seamlessly integrated into existing industrial control systems. Whether it’s a large – scale Distributed Control System (DCS) or a smaller – scale Supervisory Control and Data Acquisition (SCADA) setup, this tension measurement unit can communicate effectively with other components, enabling real – time monitoring and control of tension levels. Its modular design also allows for easy maintenance and upgrades. If a component within the unit needs replacement or an upgrade is required to meet changing process requirements, it can be done with relative ease, minimizing downtime and reducing maintenance costs.
PFEA112-20-3BSE030369R002
The ABB PFEA111 – 65 3BSE050090R65 finds extensive use in a wide range of industrial applications. In the packaging industry, it is used to control the tension of packaging materials such as films and papers. Maintaining the right tension ensures that the packaging is neat, secure, and free from wrinkles, which is crucial for product presentation and protection. In the printing industry, it plays a vital role in controlling the tension of the printing media, be it paper, plastic, or fabric. This helps in achieving high – quality prints with accurate registration and sharp images. In both these industries, the PFEA111 – 65 addresses the common challenge of maintaining consistent tension during the continuous movement of materials, which is essential for ensuring product quality and production efficiency.
Several models are closely related to the ABB PFEA111 – 65 3BSE050090R65. The PFEA111 – 20 – A model with perhaps a different set of features, suitable for applications with less demanding tension measurement requirements. PFEA112 – 65 (3BSE050091R65) – Another tension – related module that might offer additional functionality or a different configuration for specific industrial needs. PFCL201CE – 50KN – A product that could potentially be used in tandem with the PFEA111 – 65 for certain tension – related applications, perhaps providing additional load – bearing or sensing capabilities. 3BHL000391P0101 – A board that may be related in terms of the overall system integration, potentially providing supplementary functions like signal processing or communication support. 3BSE022366R1 – A control card that could be used in the same industrial setup as the PFEA111 – 65, working together to manage and control the overall tension – related processes.
