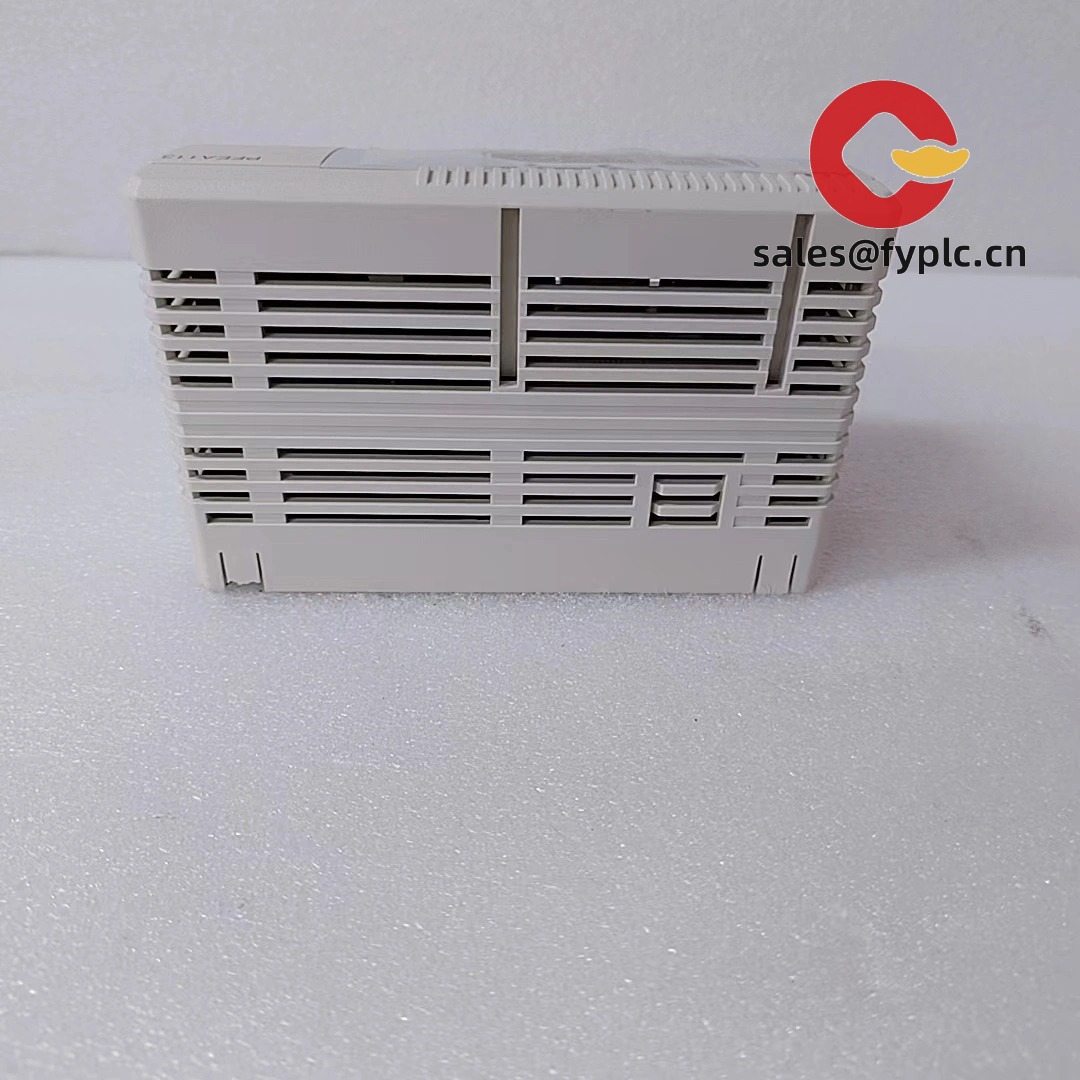

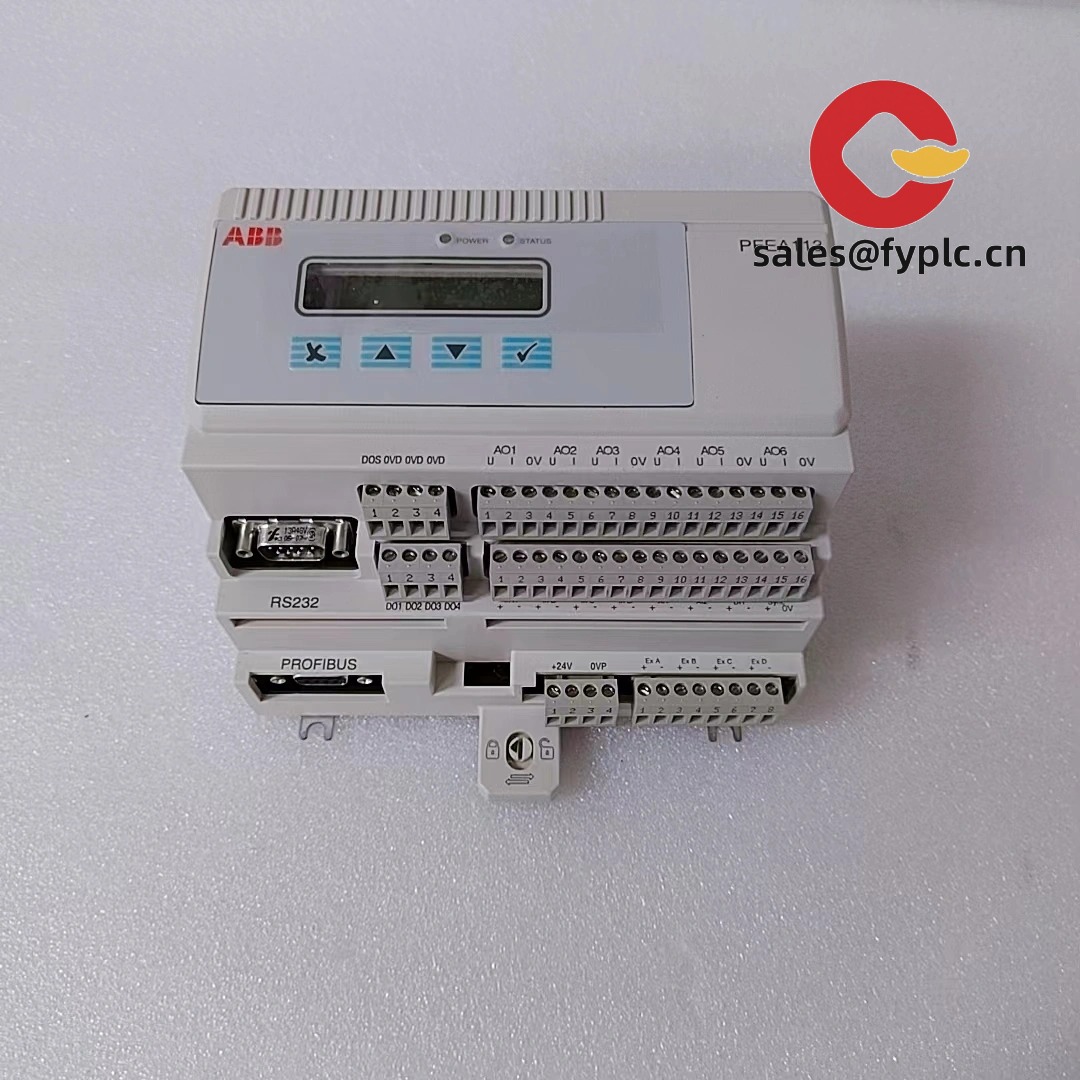

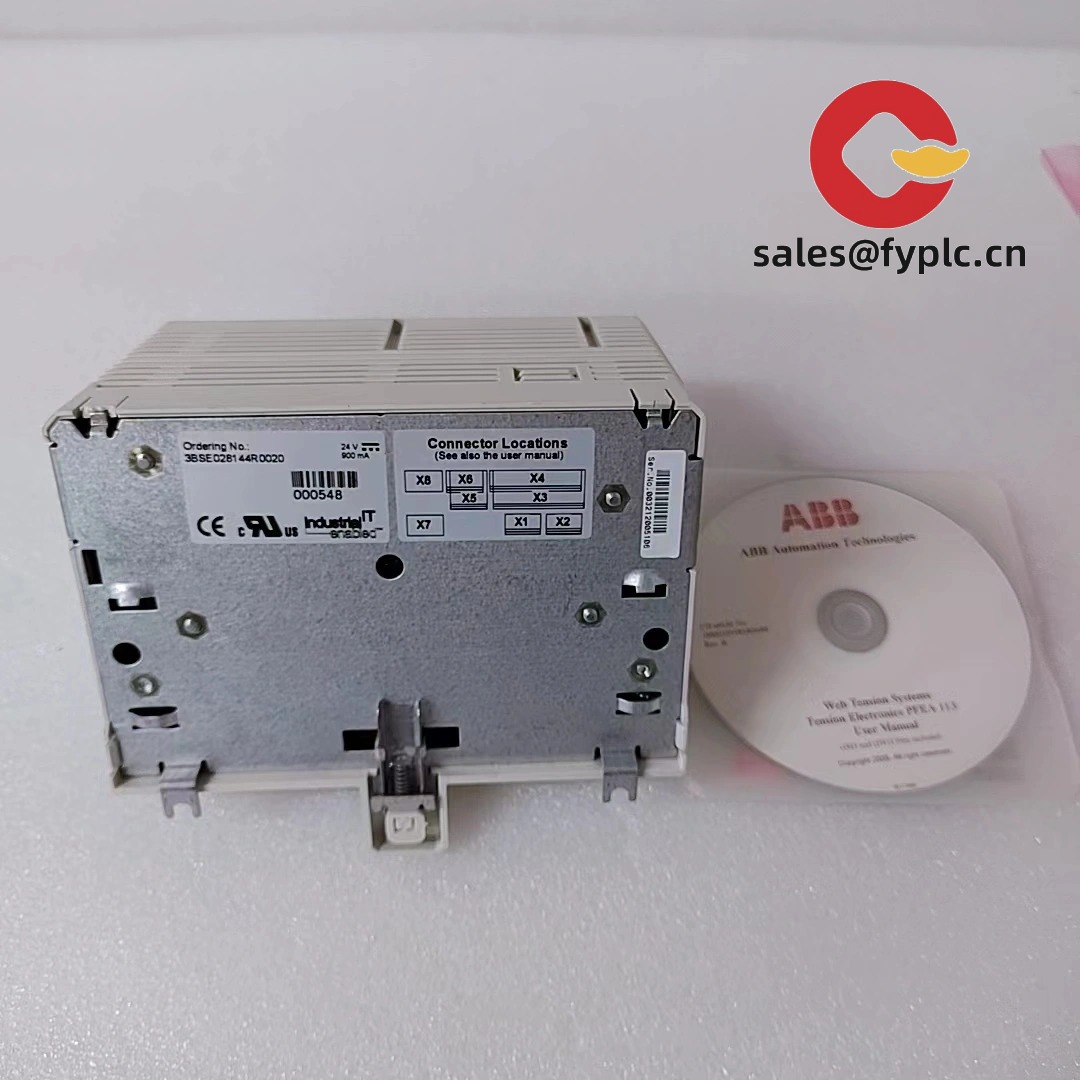

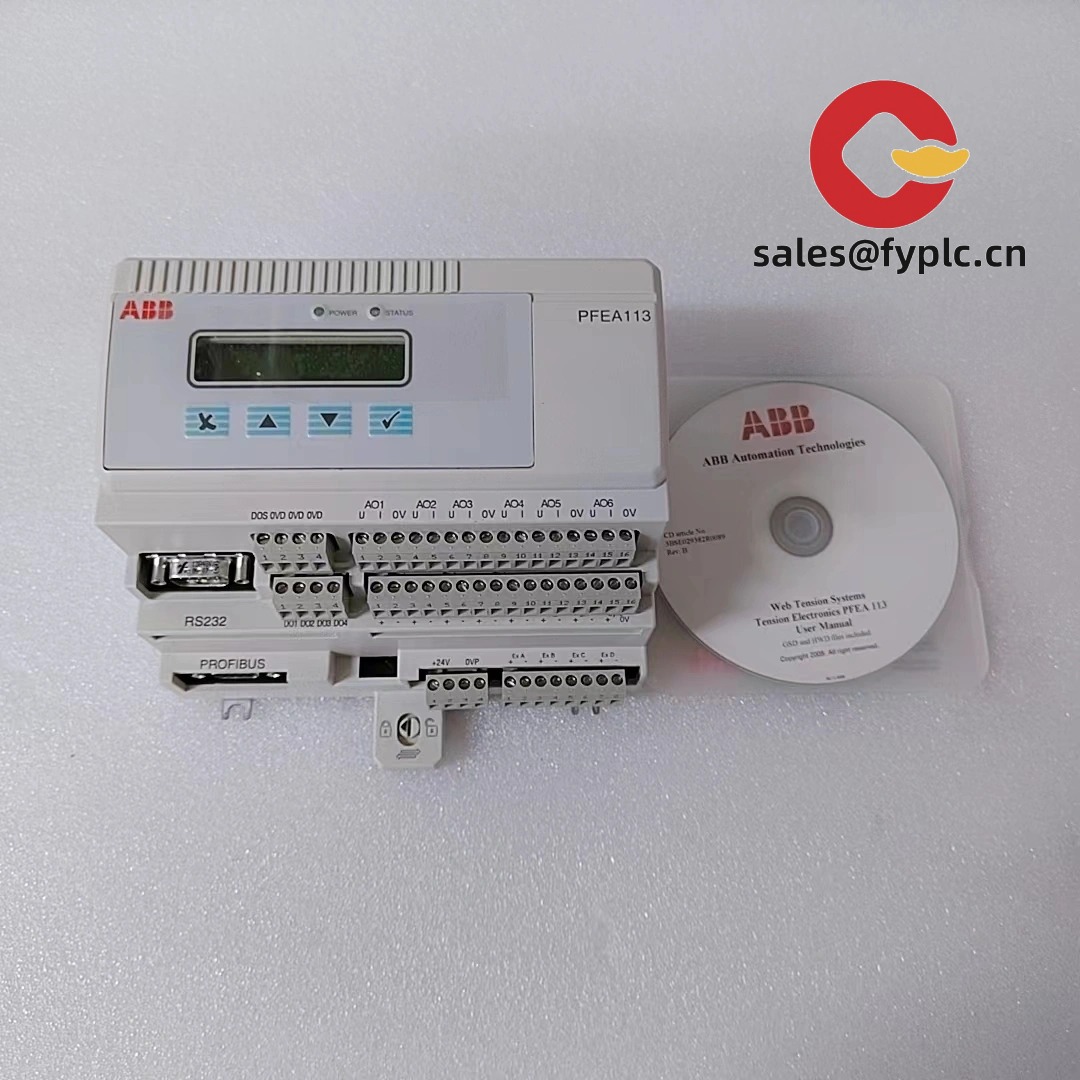

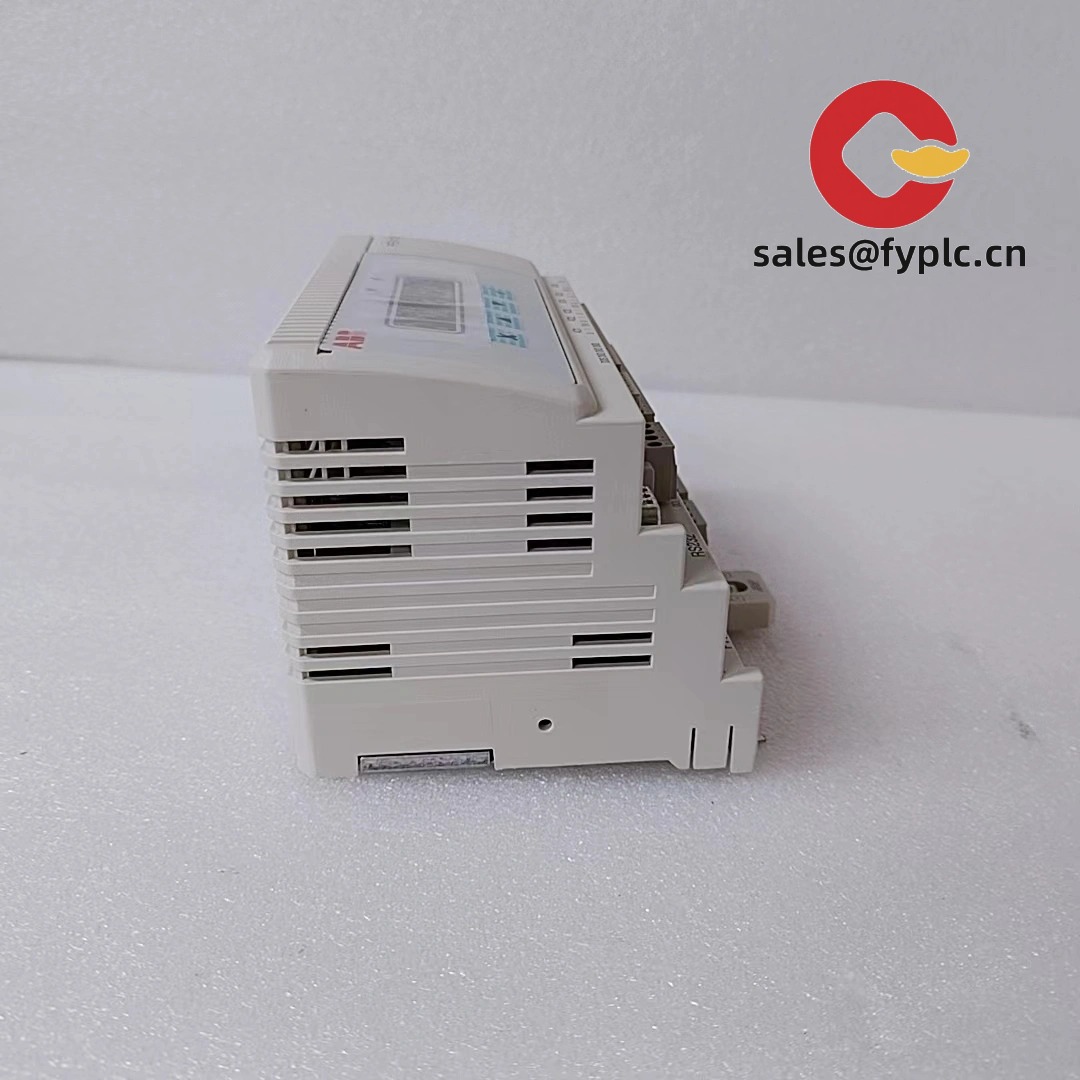

ABB PFEA113-20 Profibus DP Slave Module: Your AC500 PLC’s Fieldbus Workhorse

You know how frustrating it gets when field devices drop off the network during critical production runs? From my experience troubleshooting bottling lines and conveyor systems, the PFEA113-20 solves exactly that headache. It’s ABB’s no-nonsense Profibus DP slave module for AC500-S PLCs – think of it as the reliable translator between your controllers and valves, drives, or sensors on the shop floor. One thing I appreciate is how it handles noisy factory environments; last month a food processing plant avoided $20k in downtime because this module kept communication stable despite nearby welding equipment.

Why Field Engineers Keep This Module in Their Toolkit

• → Real-time Profibus DP communication – Cuts cycle times to 1ms for fast-moving assembly lines. Typically handles up to 124 slave devices without breaking a sweat.
• → DIN-rail simplicity – Snap it beside your AC500 CPU in under 30 seconds. No proprietary tools needed, which matters when you’re crawling in a cramped control cabinet at 2 AM.
• → Diagnostic LEDs that actually help – Green/yellow indicators show bus status, device errors, and power issues instantly. Saved me hours last week tracing a faulty temperature sensor in a chemical tank.
• → Hot-swap capable – Replace it without killing power to the whole PLC rack. In many cases, this alone justifies the investment for continuous-process plants.

Technical Snapshot (No Fluff, Just Facts)

Where It Pulls Its Weight

This isn’t some lab-curious gadget – it’s built for the grime and grind of real industry. Picture a wastewater treatment plant where level sensors chatter over Profibus to control pumps (one customer told me it survived 18 months in 90% humidity with zero failures). Or automotive paint shops where precise robot coordination depends on millisecond timing. Even in food packaging lines, it’s become the go-to for connecting barcode scanners and fill-level detectors to AC500 systems. You might notice it’s less common in ultra-high-precision semiconductor fabs – those usually need EtherCAT – but for 80% of discrete manufacturing? It’s rock solid.

What Procurement Actually Cares About

Let’s be real – your boss isn’t paying for “innovative solutions.” They want fewer midnight callouts. This module delivers through ABB’s ecosystem compatibility (no weird adapters needed for AC500), and the 365-day warranty means if a batch has issues, we’ll swap it fast. Most buyers don’t realize the hidden savings: because it uses standard Profibus cabling, you avoid costly fiber optics in medium-distance runs. And when we ship via FedEx/DHL (1-week delivery for stock units), your maintenance team isn’t stuck waiting with idle machines. Payment’s straightforward too – 50% upfront, balance when it ships.

Keep It Running Smoothly (The Practical Way)

Mount it on standard DIN rail (35mm) with at least 25mm clearance on both sides – I’ve seen too many failures from cramming modules together in cramped cabinets. Ventilation matters more than datasheets admit; keep ambient temps below 55°C where possible. Wire it using shielded twisted-pair cable with proper grounding at one end (not both!). For maintenance? Check terminal screws annually – vibration loosens them. Update firmware only when fixing specific bugs (ABB’s site has clear patch notes), and occasionally clean dust from the vents with compressed air. No routine calibration needed, which is a win.

Certified for Real-World Use

It carries CE, UL 61131-2, and RoHS compliance – no surprises during factory audits. The manufacturing follows ISO 9001, which in practice means consistent quality batch-to-batch. And that 365-day warranty? Covers defects in materials/workmanship, excluding physical damage from improper installation. One note of caution: extreme voltage spikes can still fry it, so consider adding surge protection in lightning-prone areas.
