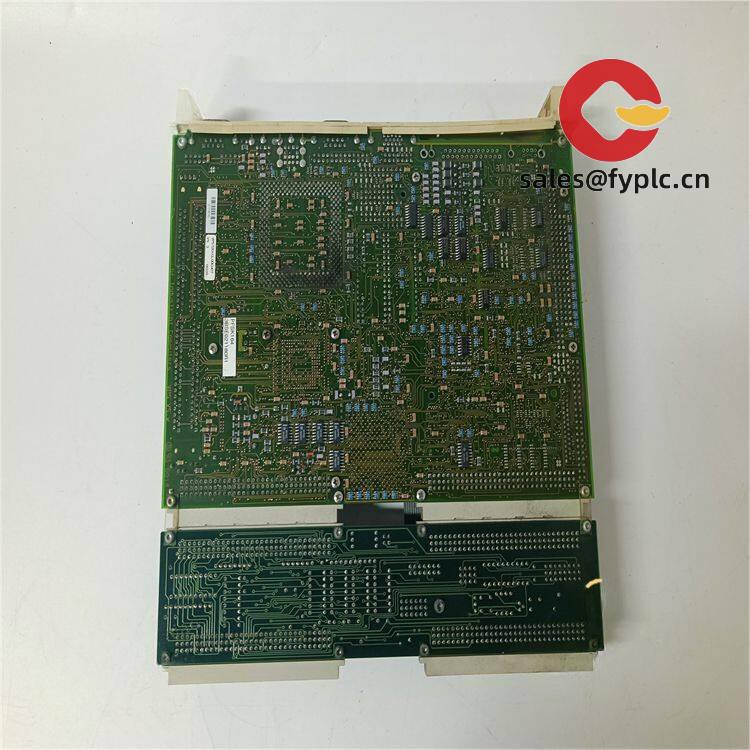

ABB PFSK164 (3BSE021180R1) – Reliable spare module for ABB Advant / 800xA control cabinets
The ABB PFSK164 with part number 3BSE021180R1 is a genuine ABB spare designed for long-life operation in distributed control system cabinets. From my experience with ABB’s 3BSE-series hardware, this module is typically used as a pluggable board within the Advant/800xA ecosystem, powered by the host backplane and installed on a DIN-rail carrier or termination unit. One thing I appreciate is how ABB keeps the form factor consistent across revisions—maintenance teams can swap units quickly without rewiring or re-engineering the panel layout. You might notice the clear labeling and keyed connectors that reduce service mistakes during urgent turnarounds.
Company’s Order Placement Process and Guarantees
- Warranty: 365 days
- Delivery: 1 week if in stock; no more than one month at the latest
- Payment: 50% advance payment; full payment before delivery
- Express options: FedEx, UPS, DHL
- Each unit is function-checked before dispatch and packed for ESD protection to minimize transit risk.
Key Features
- Genuine ABB spare (3BSE021180R1) – Helps ensure fit, firmware alignment, and long-term serviceability within ABB DCS cabinets.
- Backplane-powered design – Typically receives SELV/PELV power via the host system; no separate field supply needed, which simplifies wiring.
- Drop-in replacement – Form and connectors are designed for fast swap-outs; minimizes downtime during unplanned stops.
- Industrial-grade build – Suited for 24/7 process environments; stable operation under cabinet-rated temperatures in most cases.
- Traceable revision control – ABB’s R1 revision makes compatibility checks straightforward against your installed base or BOM.
- Service-friendly labeling – You might notice clear silkscreening and keyed mating that reduce handling errors.
Technical Specifications
| Brand / Model | ABB PFSK164 (Part No. 3BSE021180R1) |
| HS Code (reference) | 8538.90 – Parts suitable for use with industrial control equipment |
| Power Requirements | Powered via host backplane (SELV/PELV). No separate external supply in typical installations. |
| Dimensions & Weight | Compact board-level module for ABB carriers; typically < 0.5 kg. Fits standard ABB control cabinet layouts. |
| Operating Temperature | Typically 0 to +55 °C when installed in a ventilated cabinet; storage usually -25 to +70 °C. |
| Signal I/O Types | Low-voltage control/logic-level interfacing through system backplane; not intended for high-power field loads. |
| Communication Interfaces | System backplane bus within ABB Advant / 800xA architecture; external fieldbus handled by host communication modules. |
| Installation Method | Pluggable into ABB carrier or termination unit on DIN rail; observe ESD handling procedures. |
Application Fields
In many cases, PFSK164 is stocked as a maintenance spare for ABB DCS cabinets across:
- Oil & gas processing (compressor stations, separation units, tank farms)
- Chemical & petrochemical plants (batch and continuous units)
- Power generation and utilities (boiler balance-of-plant, water treatment)
- Pulp & paper, metals, mining, and marine automation cabinets
A maintenance engineer at a combined-cycle plant told us they keep one PFSK-series spare per cabinet row—swaps are typically under 15 minutes during a controlled stop, which keeps production impacts modest.
Advantages & Value
- Reliability: Factory-grade ABB hardware with stable lifecycle support reduces nuisance trips.
- Compatibility: Aligns with ABB cabinet mechanics and backplane topology, limiting engineering changes.
- Cost control: A true drop-in spare saves on integration hours and avoids field rewiring risks.
- Technical support: We assist with part identification by cross-checking your 3BSE BOM and installed revisions before shipment.
Installation & Maintenance
- Cabinet environment: Install in a clean, ventilated control cabinet; avoid condensation and corrosive atmospheres.
- Mounting: Plug into the specified ABB carrier/termination unit on DIN rail; confirm slot position as per your cabinet drawings.
- Wiring: Since power is via backplane, verify carrier connectors are seated and field wiring is strain-relieved.
- Safety: Power down the cabinet section if required by your LOTO procedures; use ESD wrist strap and antistatic packaging.
- Routine care: Quarterly dust removal with dry air (oil-free); visual inspection for discoloration or loose connectors.
- Firmware/assets: In most cases there’s no standalone firmware; still, document serials/revisions and update your asset registry.
Quality & Certifications
- Manufactured under ABB’s quality system (typically ISO 9001)
- CE conformity for industrial control environments (typical for ABB 3BSE-series modules)
- RoHS alignment for many recent production lots; legacy spares may differ by revision
Commonly Paired ABB Components
While exact pairings depend on your cabinet design, PFSK164 spares are often kept alongside:
- AC 800M controllers (e.g., PM861/PM864 series)
- S800 I/O carriers and termination units (TU8xx series)
- Communication modules (e.g., CI854A for PROFIBUS, CI851/CI853 depending on network)
- System accessories: TB8xx base plates, redundant power units, cabinet spares
Tip: Send us your installed base list or a cabinet photo of the rating label. We’ll confirm PFSK164 3BSE021180R1 against your revision and suggest a matching spare strategy per cabinet row.
