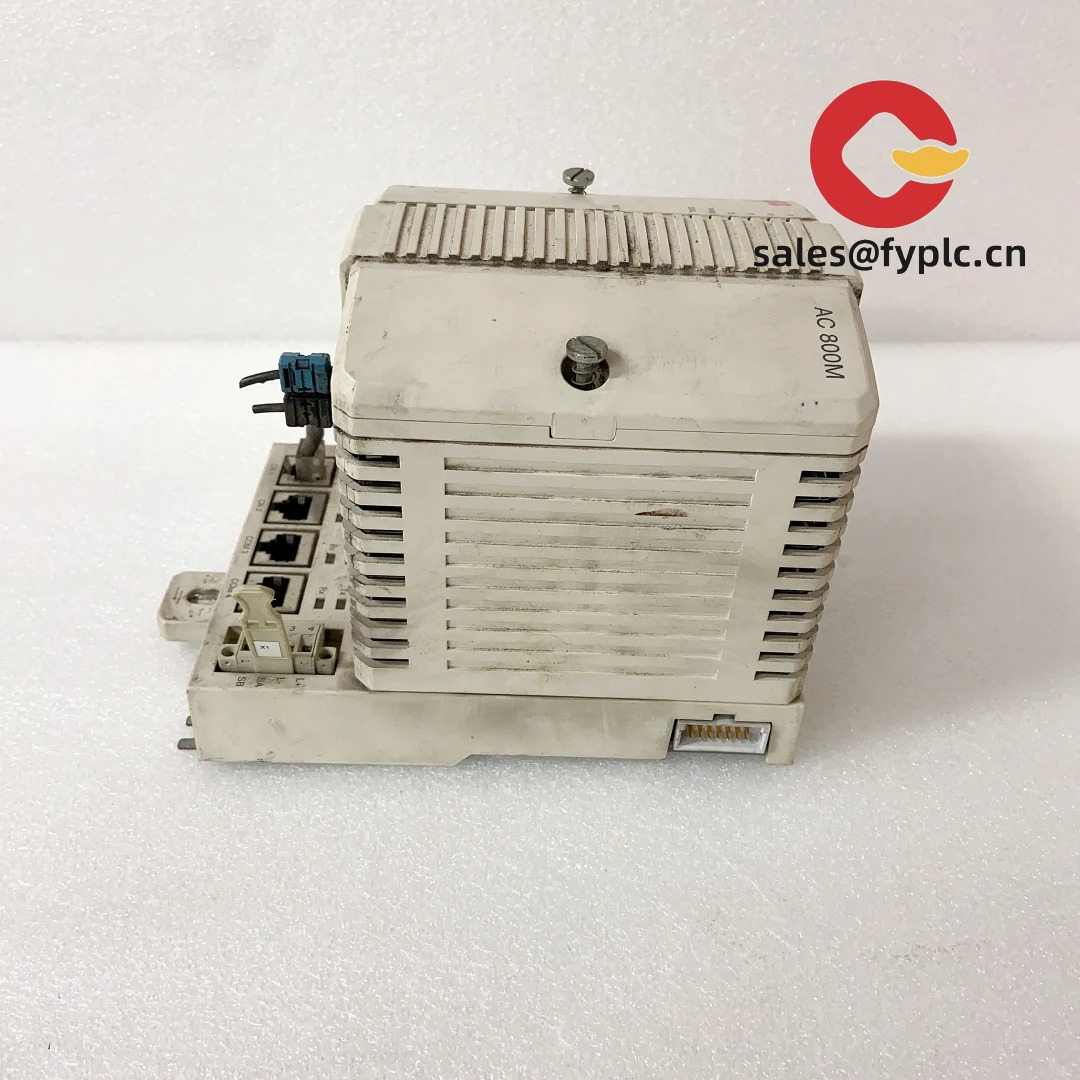

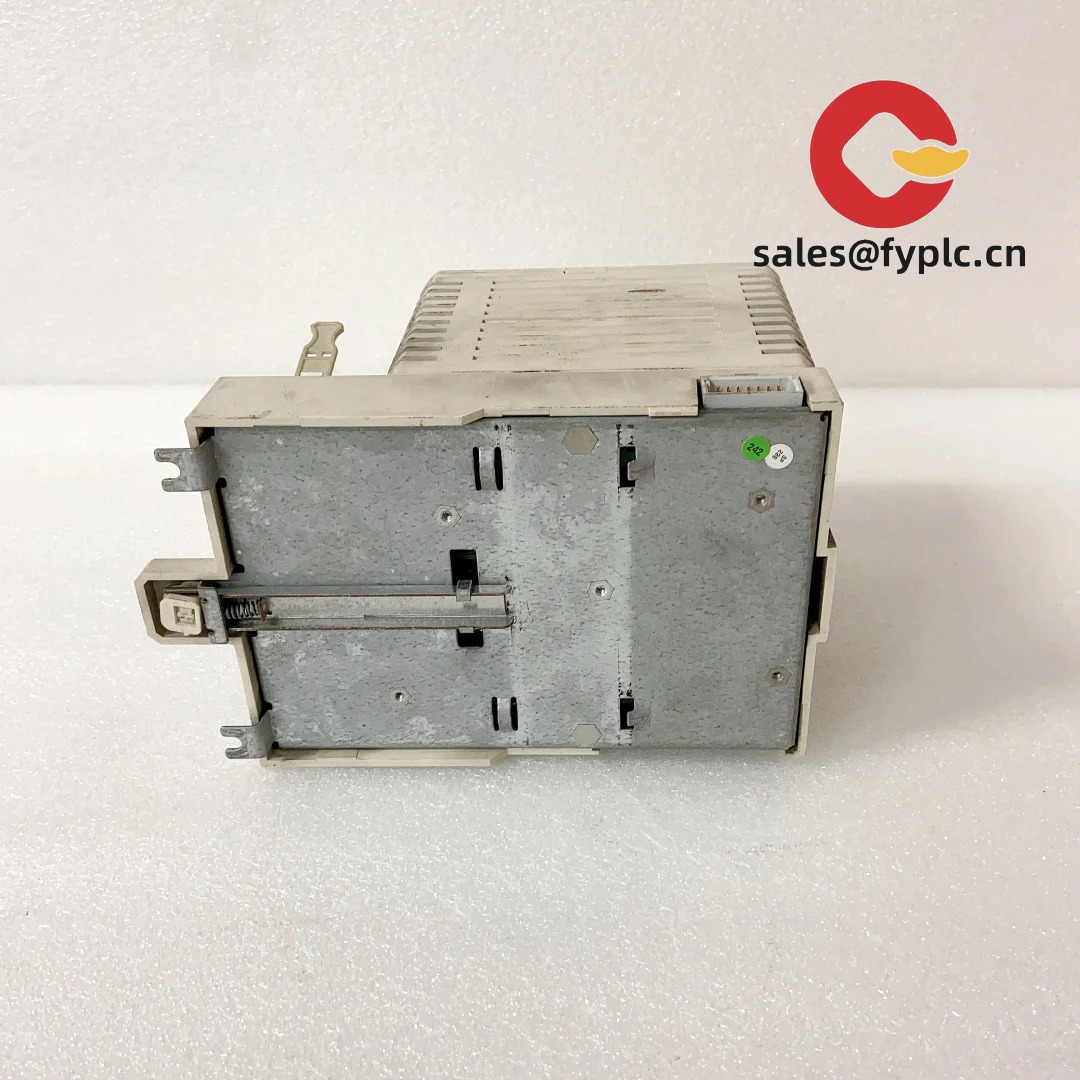

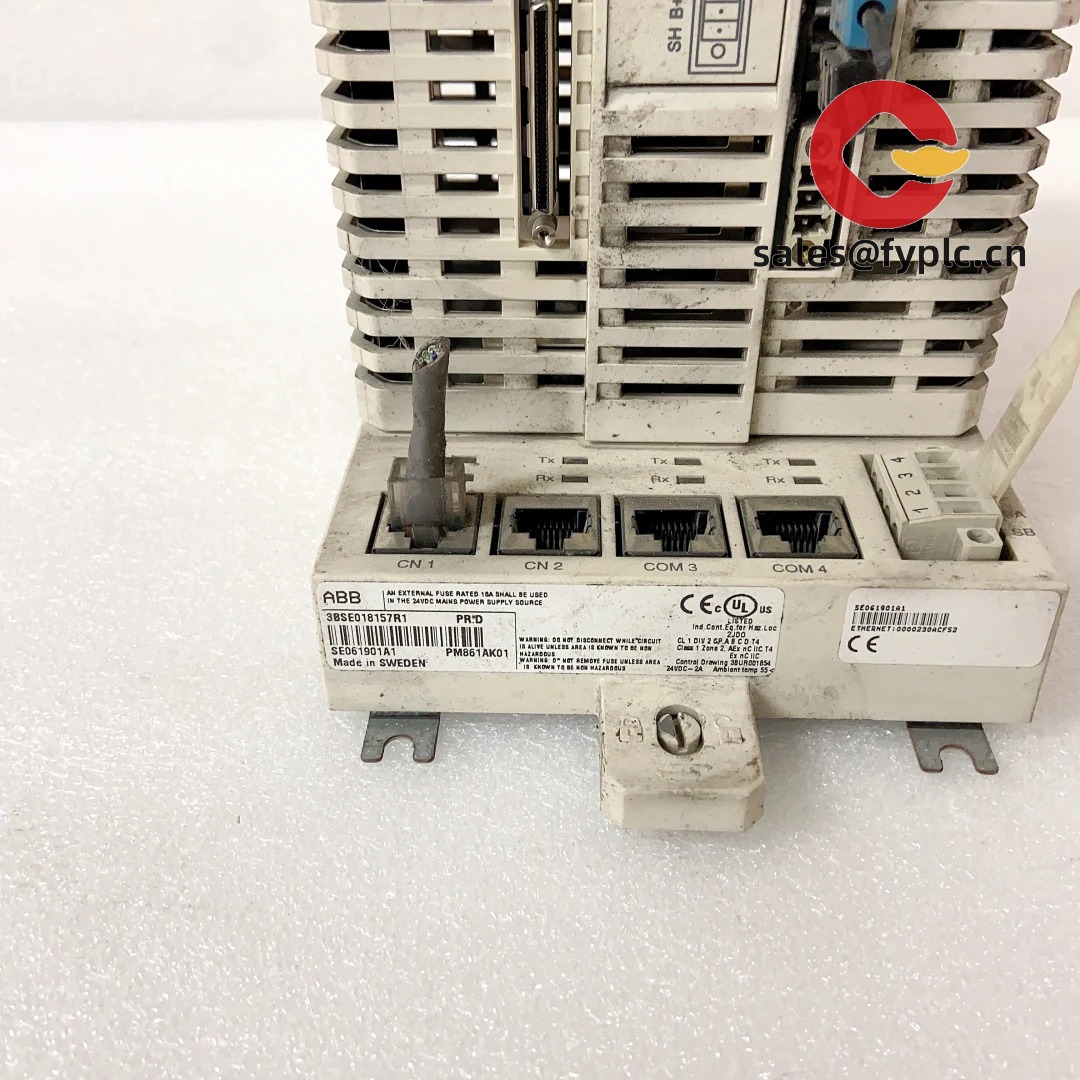

ABB PM861AK01-3BSE018157R1: Your Fail-Safe Symphony Plus Controller for Critical Processes

Let’s cut to the chase—this isn’t just another CPU module. If you’ve ever lost sleep worrying about controller failures halting your production line, the ABB PM861AK01-3BSE018157R1 is the redundancy workhorse you need. From my experience troubleshooting refinery outages, this Symphony Plus module’s hot-swap capability alone has saved clients thousands in downtime. One thing I appreciate is how it handles processor swaps without dropping a single I/O point—typical in continuous processes like chemical reactors where even 500ms of lag risks batch spoilage.

Key Features That Actually Matter

• True Hot-Swap Redundancy—Swap failed CPUs on-the-fly without stopping your process. I’ve seen this prevent $200k+ losses during unplanned maintenance in pulp mill control rooms.
• 15ms Cycle Time (Typical)—Handles complex regulatory control loops smoothly, though heavy logic might push it to 20ms. Not for ultra-high-speed packaging lines, but perfect for most process automation.
• Integrated Ethernet/IP & Modbus—Talks to legacy PLCs and modern HMIs without gateways. Saved a pharmaceutical client weeks of integration headaches last quarter.
• Extended Temp Tolerance (-40°C to +70°C)—Survives harsh environments where standard CPUs choke. One user in Alberta runs it in unheated compressor shelters year-round.

Technical Specifications You Can Verify

Where It Earns Its Keep

You’ll typically find this module in the nerve centers of places where failure isn’t an option: offshore oil platforms managing flare systems, water treatment plants controlling chemical dosing, or food processing lines running 24/7. One wastewater plant engineer told me it survived three lightning strikes last monsoon season—thanks to ABB’s galvanic isolation design. It’s not overkill for small batch processes, but if your operation runs >95% uptime, this redundancy pays for itself fast.

Why Procurement Teams Keep Ordering It

Forget “future-proof” buzzwords—this delivers concrete savings. Compatibility with older ABB 800xA systems means you’re not forced into forklift upgrades. The 365-day warranty (uncommon in industrial controllers) covers firmware glitches that usually bite after 6 months. And from what I’ve seen, the real value is in reduced engineering hours: no PhD needed to configure redundancy, and ABB’s Connect IT software cuts commissioning time by ~30%. One plant manager calculated $18k saved per installation in avoided consultant fees.

Installation & Maintenance Reality Check

Mount it in standard 19″ cabinets with at least 50mm clearance on both sides—ABB’s thermal design needs that airflow. Avoid placing near VFDs; I’ve debugged noise issues from ignoring that. Routine checks? Monthly firmware audits (critical after ABB’s 2023 security patches), and blow out dust every 6 months with compressed air below 30 PSI. Pro tip: Tag spare modules with installation dates. One refinery learned the hard way that unused CPUs degrade faster in humid storage.

Certifications & Guarantees That Hold Up

CE, UL 61010-2, IEC 61508 SIL 2 certified—no shortcuts here. RoHS 3 compliant since 2020 models. Warranty’s straightforward: 365 days from shipment, covering defects but not lightning or coolant spills (sorry, we’ve seen both). Delivery’s tight too: 1 week if in stock, max 4 weeks otherwise. Payment’s 50% upfront, balance before FedEx/UPS/DHL ships it. No surprises.
