ABB REC650 1MRK008514-AA – High-Performance Transformer Protection Relay

If you’re managing substation automation or overseeing critical transformer protection in industrial or utility environments, the ABB REC650 is one of those relays that tends to show up where reliability really matters. From my experience, it’s not just about tripping when it should—it’s about staying stable during disturbances, integrating cleanly into existing SCADA systems, and reducing downtime through smart diagnostics.

One thing I appreciate is how well this unit handles complex protection schemes—especially on medium to large power transformers. It seems to strike a balance between advanced functionality and practical usability, which typically makes commissioning less painful than with some other models in its class.

Key Features

• Differential and Overcurrent Protection: Offers comprehensive transformer protection including harmonic restraint, inrush detection, and thermal modeling—helpful in avoiding nuisance trips during startup.
• IEC 61850 Compliance (Edition 1 & 2): Supports GOOSE messaging and sampled values, making integration into modern digital substations more seamless. You might notice faster response times in peer-to-peer logic implementations.
• Flexible I/O Expansion: Can be paired with remote I/O units for larger installations, which comes in handy if your switchyard layout doesn’t allow for local mounting near CTs/VTs.
• Advanced Diagnostics & Event Recording: Includes oscillography, sequence-of-event (SOE) logging with 1ms resolution, and self-monitoring alarms—useful both for post-fault analysis and predictive maintenance planning.

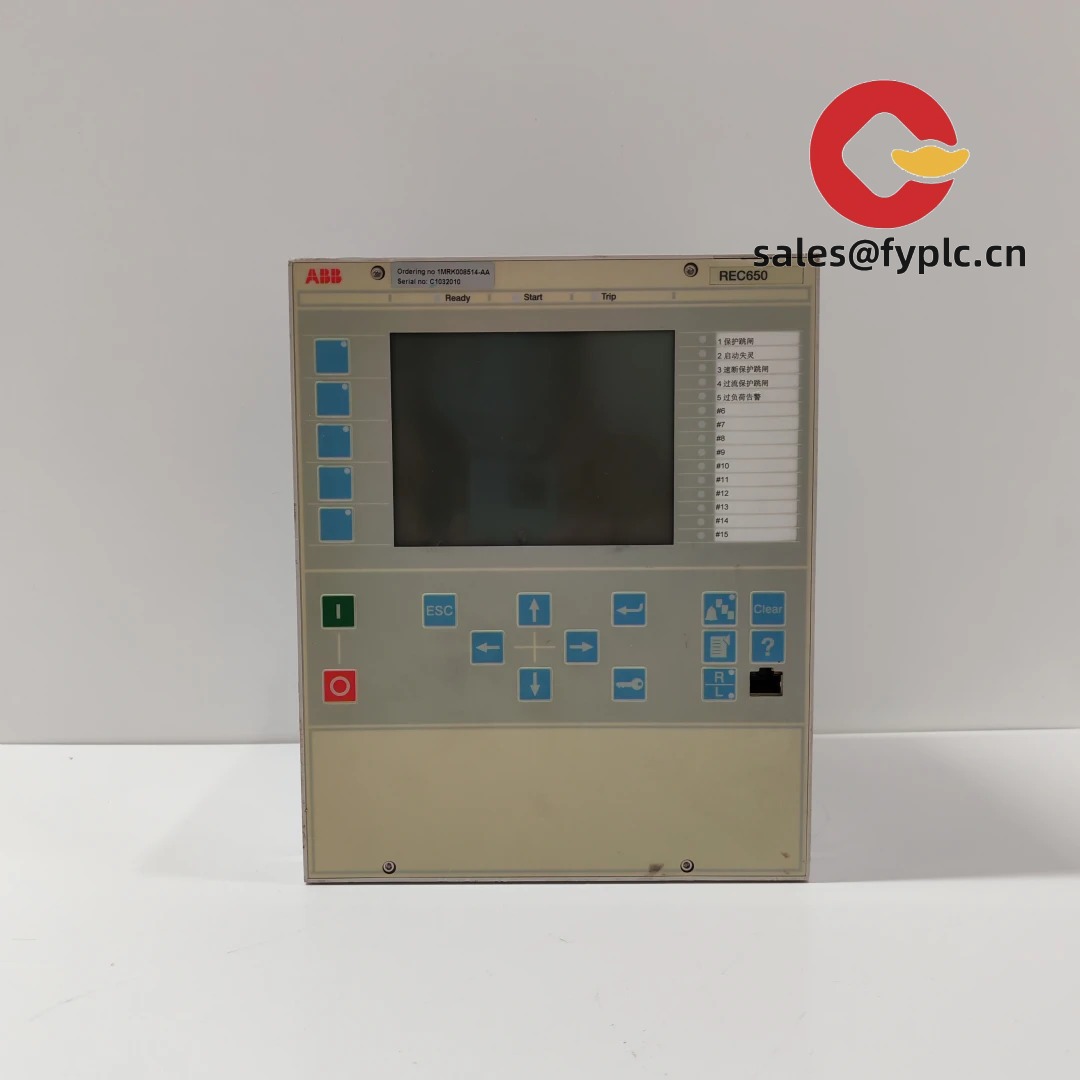

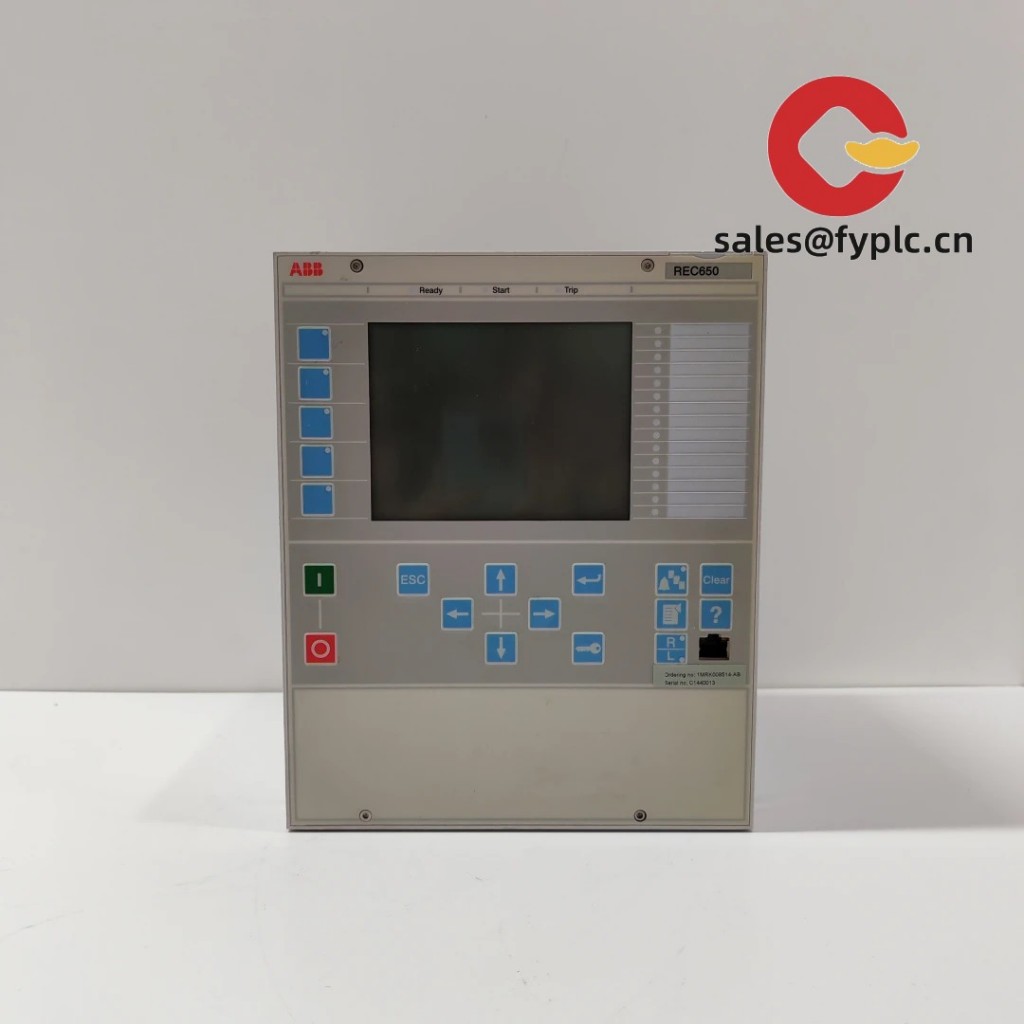

• User-Friendly HMI: Large graphical LCD with navigation keys simplifies local operation. In many cases, field engineers can troubleshoot without needing a laptop connected.

Technical Specifications

Parameter	Specification
Brand / Model	ABB / REC650 (1MRK008514-AA)
HS Code	8536.20.00 (Electrical apparatus for switching or protecting electrical circuits – relays)
Power Supply	88–264 V AC/DC, wide-range supply supports dual redundancy setups
Operating Temperature	-25°C to +70°C (suitable for harsh environments like outdoor switchyards)
Signal Inputs	Analog: Up to 8 current channels (CT), 6 voltage channels (VT) Digital: 16 standard, expandable via RIO

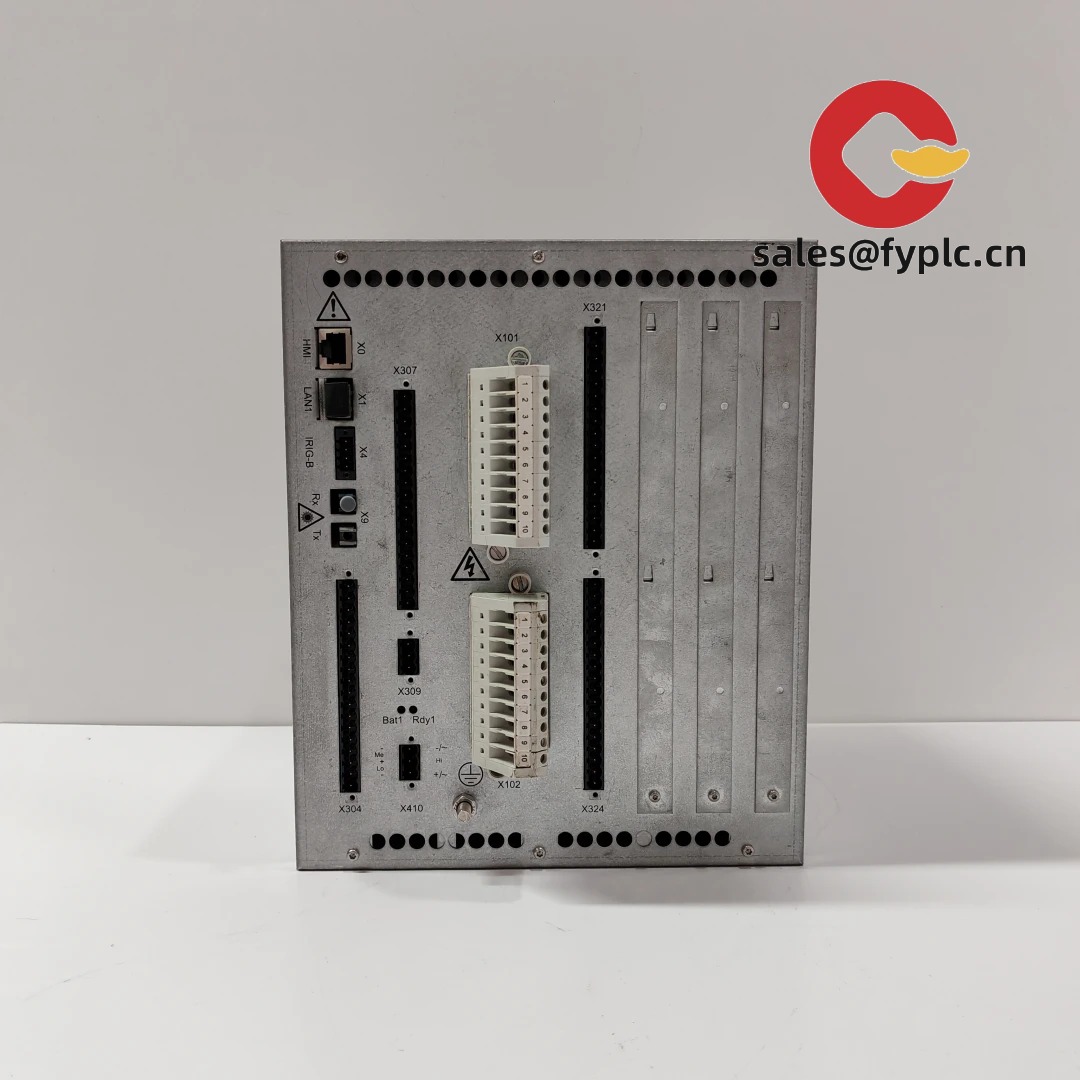

Communication Interfaces	Dual Ethernet ports (RJ-45) for IEC 61850 RS-485 for Modbus RTU (optional) USB port for configuration backup
Installation Method	Panel-mounted (19” rack compatible), front-mount design with plug-in modules
Dimensions & Weight	Approx. 482 x 210 x 296 mm (W×H×D), ~7.5 kg

Application Fields

This relay is commonly deployed in high-value applications where transformer failure could lead to major outages. Think transmission substations feeding urban grids, heavy industrial plants (like refineries or steel mills), and renewable energy interconnection points—say, wind farm collector stations feeding into the main grid. It’s also used in generator step-up (GSU) applications, though settings need careful tuning due to different fault characteristics.

A customer recently mentioned using it on a retrofitted hydro station—they liked that it replaced two legacy relays while adding better communication capabilities. That kind of consolidation tends to pay off in reduced panel space and wiring complexity.

Advantages & Value

Procurement teams often look at total cost of ownership, not just sticker price. In that light, the REC650 holds up well. Its long lifecycle (typically 15+ years in service), compatibility with ABB’s PCM600 toolset, and availability of firmware updates mean fewer forced upgrades down the road.

From a technical support standpoint, there’s a decent pool of engineers familiar with ABB protection logic, so training new staff isn’t usually a hurdle. Spare parts and documentation are generally accessible, which helps reduce mean time to repair.

Installation & Maintenance

Mounting should follow standard IEC 60255 cabinet practices—ensure adequate ventilation, especially if installed in enclosed panels with multiple heat-generating devices. The manual recommends at least 50 mm clearance on each side for airflow.

Wiring must use shielded twisted pairs for analog signals, with single-point grounding to avoid noise coupling. Digital comms (especially Ethernet) benefit from using industrial-grade cables with proper EMI shielding.

For maintenance: schedule annual checks of input calibration, inspect terminal torques every 2–3 years, and keep firmware updated—though only after testing in a non-critical environment first. Some users run automated test scripts via PCM600 to verify logic integrity without taking equipment offline.

Quality & Certifications

The REC650 carries CE, UL 508 recognition, and complies with IEC 60255 series standards for measuring relays and protection equipment. It’s RoHS compliant and designed under ISO 9001 quality management processes.

Each unit comes with a 365-day warranty covering defects in materials and workmanship. While failures are rare, replacement units are typically shipped within a week if stock is available—critical for minimizing outage duration.

Order Placement Process & Guarantees

Delivery takes about one week for in-stock units, with a maximum lead time of four weeks if backordered. We require a 50% advance payment to initiate order processing, with full payment due before shipment. Express delivery via FedEx, UPS, or DHL ensures fast transit and tracking visibility—important when coordinating site schedules.
