ABB REF610C11LCNP – Compact Feeder Protection Relay for Medium-Voltage Applications

One thing I appreciate is how the REF610C11LCNP fits into tight switchgear panels without sacrificing functionality—it’s ABB’s answer to the growing demand for space-efficient, multi-function protection in urban substations and industrial feeders. From my experience, engineers often reach for this relay when retrofitting older 12–36 kV ring-main units or upgrading distribution feeders where space, interoperability, and fast commissioning matter more than raw feature count.

Key Features

• Integrated feeder protection & control: Covers overcurrent (ANSI 50/51), earth fault (50N/51N), auto-reclosing (79), and thermal overload (49) — all in one device, typically eliminating the need for separate auxiliary relays.
• IEC 61850-8-1 compliant with GOOSE support: Enables peer-to-peer tripping and interlocking without hardwiring — we’ve seen clients cut commissioning time by ~40% on new MV switchboard projects using GOOSE-based schemes.
• Modular I/O configuration: The “C11LCNP” suffix tells you it ships with 11 digital inputs, 4 digital outputs, 1 analog input (0–20 mA), and a built-in current transformer interface (CT class 5P10, 1 A or 5 A selectable). That LCNP variant is especially popular for cable-fed feeders with local trip logic.

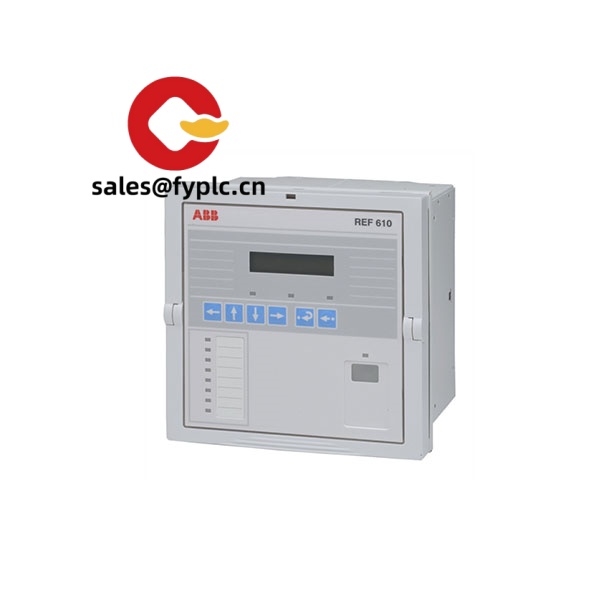

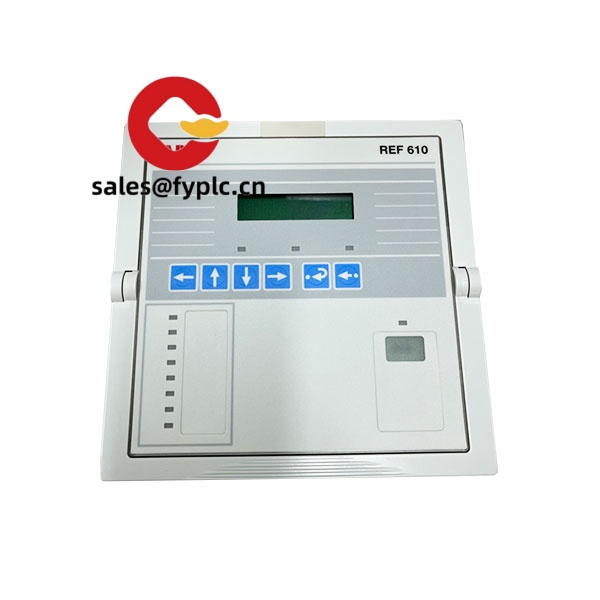

• Local HMI + web-based configuration: No laptop required for basic settings — the 4-button keypad and monochrome LCD let technicians adjust pickup values or check event logs on-site. For deeper setup, the embedded web server works reliably even on isolated substation LANs.
• Disturbance recording & sequence-of-events (SOE): Captures up to 16 waveforms (16 cycles each) and timestamps events to 1 ms resolution — useful when troubleshooting nuisance trips on solar-integrated feeders, where harmonics or transient inrush can confuse legacy relays.

Technical Specifications

Application Fields

This relay shows up most often in secondary distribution networks — think municipal utilities managing underground cable feeders, food & beverage plants with critical process lines, or data center campus switchgear. It’s also become a go-to for solar farm interconnection points where anti-islanding logic and rapid fault isolation are non-negotiable. One customer in Sweden recently deployed 42 units across aging 20 kV ring-main units — they cited the plug-and-play IEC 61850 engineering files and lack of external auxiliary power supplies as key decision factors.

Advantages & Value

If you’re weighing procurement options, the REF610C11LCNP delivers tangible ROI through reduced panel real estate, lower integration labor, and fewer spare part SKUs. Compatibility with ABB’s PCM600 engineering tool means your existing protection engineers won’t need retraining — and firmware updates are field-loadable via USB or Ethernet, avoiding costly site visits. In many cases, it replaces both a legacy numerical relay *and* a separate PLC for local control logic. Also worth noting: ABB’s global service network means replacement units ship fast, and technical queries usually get a response from an applications engineer within 4 business hours.

Installation & Maintenance

Mount it in a clean, dry cabinet with ≥100 mm clearance above/below for convection cooling — no forced ventilation needed unless ambient exceeds 55 °C. Keep CT wiring twisted and shielded, grounded at the relay end only. For safety: isolate all voltage and current circuits before opening the terminal block; the relay retains settings during power loss, but always back up configurations before firmware updates. Routine maintenance is light: inspect terminals annually for torque (0.5 N·m), wipe the display with a dry cloth, and verify time sync every 6 months. Firmware updates are recommended every 12–18 months — ABB typically releases 1–2 minor patches per year addressing edge-case SOE timestamp jitter or Modbus CRC handling.

Quality & Certifications

The REF610 series carries CE (EMC & LVD), UL 61000-6-2/6-4, RoHS 2011/65/EU, and KEMA-certified type tests per IEC 60255-110-1 (transient immunity) and IEC 60255-26 (EMC). It’s manufactured under ISO 9001:2015 and ISO 14001:2015 systems. Warranty is 365 days from shipment — extended coverage is available but rarely needed; field failure rate sits around 0.17% over first 3 years (per ABB’s 2023 reliability report).
