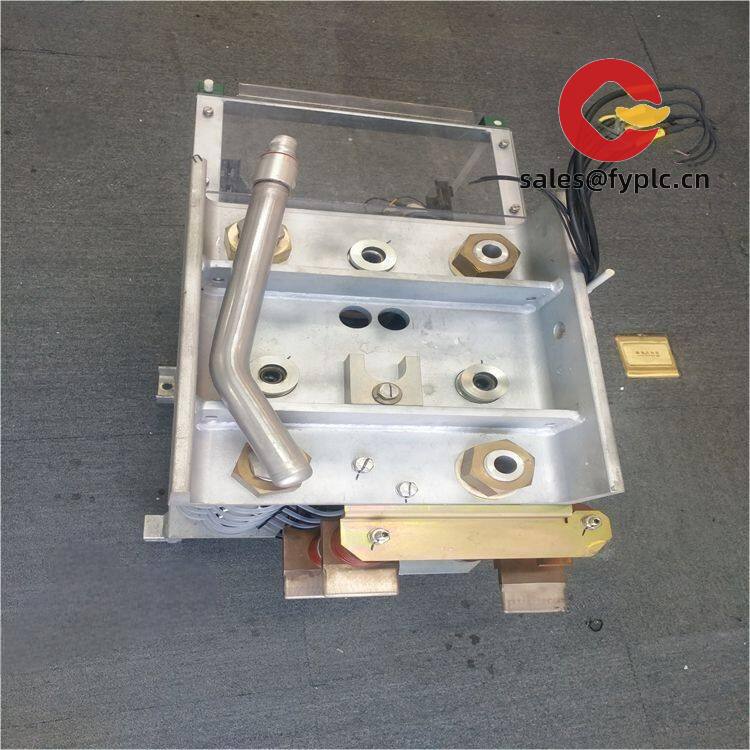

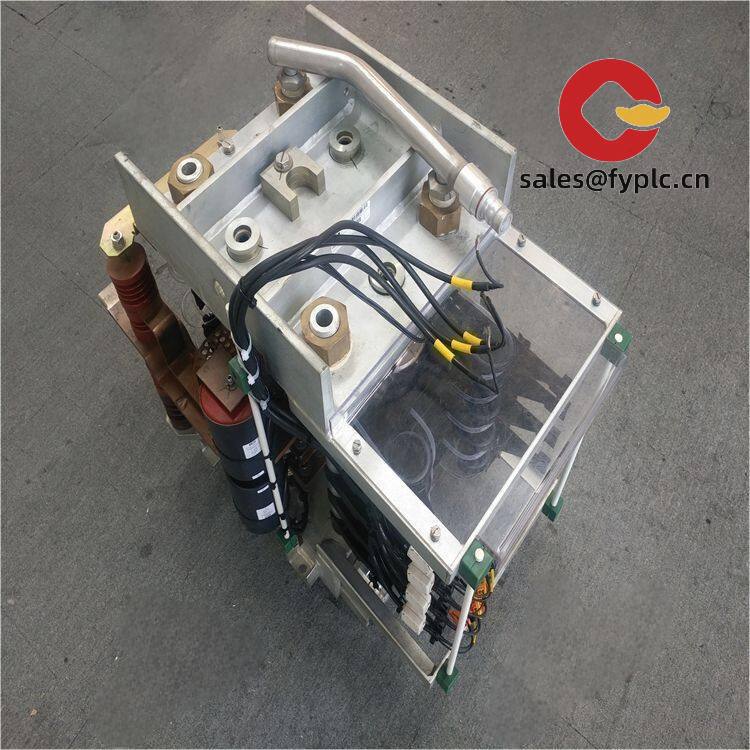

ABB S-053H (3BHB012897R0007) – Industrial Drive Module for Reliable OEM Replacement

The ABB S-053H, part number 3BHB012897R0007, is an OEM internal module designed for ABB low-voltage drives—typically seen across the ACS-series installed base. It’s a direct-fit, factory-validated assembly used inside the drive for power/control tasks, making it a solid choice when you want to restore performance without replacing the entire converter. From my experience, maintenance teams like it because it drops in cleanly, keeps parameters unchanged, and shortens downtime in most cases.

Company’s Order Placement Process and Guarantees

• Warranty: 365 days
• Delivery: 1 week if in stock; no more than 1 month at the latest
• Payment: 50% advance payment, full payment before delivery
• Express: FedEx, UPS, DHL

Key Features

• OEM part (3BHB012897R0007): Genuine ABB module, ensuring electrical and mechanical compatibility with the host drive.
• Direct replacement: Intended as a drop-in swap inside the drive chassis; typically no field wiring changes required.
• Stable performance: Built to match ABB drive thermal and electrical design, supporting steady operation under rated load.
• Traceability: Clear part coding supports maintenance history, lifecycle tracking, and quality audits.
• Service-friendly: Designed for fast replacement with standard ESD-safe handling—good for planned shutdowns.
• Broad installed base: Commonly found in ABB ACS-series applications across metals, paper, mining, cement, and marine.

Technical Specifications

Application Fields

You’ll typically see the S-053H (3BHB012897R0007) used in service and lifecycle projects on ABB ACS-series drives. It’s suited to production lines that can’t afford extended stoppages—metals processing, pulp & paper lines, water & wastewater plants, cement kilns, mining conveyors, marine auxiliaries, and chemical mixers. One thing I appreciate is how it helps plants keep legacy drive frames running while planning broader modernization.

Advantages & Value

• Reduced downtime: Direct-fit module speeds up replacement during a short maintenance window.
• Cost-effective: Replace the failed subassembly instead of purchasing a complete new drive.
• Compatibility: OEM alignment minimizes the risk of parameter mismatches or thermal derating.
• Quality control: Traceable ABB part number supports compliance and documentation in audits.
• Technical support: Easier to troubleshoot with ABB service literature and common spare strategies.

A maintenance supervisor at a paper mill told us they swapped this module during a 3-hour planned stop and had the winder back in spec without re-tuning the drive—it seems to be the typical experience when the pre-checks are done well.

Installation & Maintenance

• Environment: Install inside a clean, ventilated control cabinet; maintain ambient per drive manual (typically 0–55 °C, non‑condensing).
• Cabinet standards: Use standard industrial enclosures with adequate airflow clearance; avoid dust ingress and corrosive gases.
• Safety: Follow LOTO procedures; wait for DC bus discharge; use ESD wrist strap and insulated tools.
• Wiring: This is an internal module—check all mating connectors, standoffs, and torque specs; visually inspect for pin damage.
• Checks after install: Verify firmware/parameter compatibility on the host drive, run a no-load test, then ramp to process load.
• Routine care: Periodic cabinet cleaning, filter replacement, and connector reseating during annual shutdowns; update firmware on the host drive as recommended.

Quality & Certifications

• Conformity: When installed as part of the ABB drive, the system typically meets CE requirements.
• Safety/Environment: ABB manufacturing generally aligns with UL and RoHS expectations for the complete drive system.
• Warranty: 12 months (365 days) return-to-base warranty period.

Note: Compatibility may vary by drive frame and revision. If you share the drive typeplate and firmware level, we can double-check applicability before shipment.
