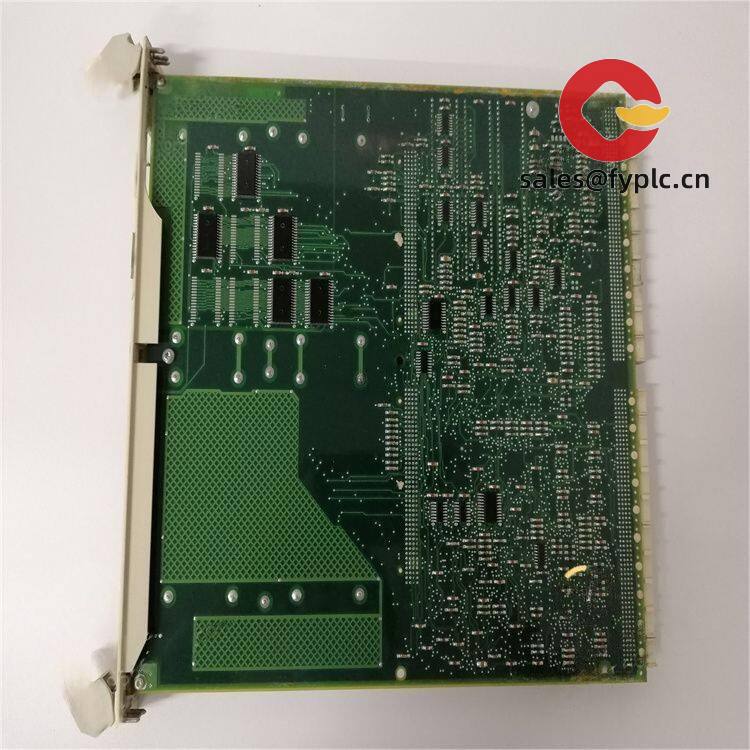

ABB SC520M (3BSE016237R1) — High-Integrity Safety Communication Module for AC 800M Systems

Let’s cut to the chase: the SC520M isn’t a general-purpose I/O module—it’s the dedicated safety communication backbone for ABB’s AC 800M DCS when you need SIL 3-certified redundancy between controllers and distributed safety I/O stations. From my experience supporting pulp & paper plants and offshore platforms, this module shows up where failure isn’t an option—think emergency shutdown systems on gas compressors or burner management in refinery furnaces.

Key Features

• Dual-channel fiber-optic safety bus — Uses redundant plastic optical fiber (POF) links with automatic failover; typical loop lengths reach up to 100 m per segment without repeaters.
• SIL 3 certified per IEC 61508 & IEC 61511 — Validated by exida (Certificate No. 14-0158), not just “designed for” safety—it’s pre-certified for use in safety instrumented functions (SIFs).
• Tight synchronization with AC 800M safety controllers — Achieves sub-millisecond cycle times (typically 1–3 ms depending on node count), critical when coordinating multiple ESD valves or turbine trip logic.
• Hot-swappable with built-in diagnostics — You’ll see real-time status LEDs for link health, CRC errors, and channel sync—no need to pull logs first. One customer in Sweden told us they caught a degrading POF connector *before* it caused a spurious trip during commissioning.
• Backplane-integrated timing — Syncs directly with the AC 800M controller’s internal clock, avoiding timestamp drift that can complicate root-cause analysis after a shutdown event.

Technical Specifications

Application Fields

This module is typically deployed in high-consequence process environments where functional safety integrity is non-negotiable. Think offshore oil & gas platforms running ABB’s 800xA with AC 800M safety controllers—especially where field devices like flame detectors, pressure transmitters, or shutdown valves are geographically dispersed across decks or modules. It also appears in pharmaceutical cleanroom HVAC safety interlocks and large-scale power generation auxiliary systems, where regulatory audits demand traceable, certified communication paths—not just “redundant wiring.”

Advantages & Value

If you’re evaluating alternatives—or replacing legacy SC510Ms—you’ll notice two practical wins: First, backward compatibility with existing AC 800M safety I/O (like S800 or S900 series) means no re-engineering of safety logic blocks in Control Builder M. Second, because it’s pre-certified, your SIS validation effort shrinks—some customers report cutting FAT preparation time by 30% versus uncertified gateways. And while it’s not the cheapest module on the shelf, downtime cost avoidance alone often justifies the premium: one chemical plant in Belgium avoided ~€220k in unplanned shutdown losses over 18 months simply by eliminating comms-related spurious trips.

Installation & Maintenance

Install only in cabinets meeting IEC 61800-5-1 standards—ventilation ≥ 0.5 m³/min per kW, ambient humidity < 85% non-condensing. Avoid routing POF cables alongside 4–20 mA analog signals or VFD outputs; keep separation at least 30 cm or use grounded metallic conduit. For maintenance: inspect POF connectors quarterly for dust or scratches (a lint-free wipe with >99% IPA works fine), verify link status LEDs during routine walkdowns, and update firmware only during scheduled outages—ABB recommends staying on the latest certified version (v3.2.1 or newer as of mid-2024). Don’t skip the backplane grounding check: resistance to earth must be < 1 Ω.

Quality & Certifications

Certified to CE (EMC & LVD), UL 61010-1, RoHS 3 (2015/863/EU), and ISO 9001:2015. Full SIL 3 compliance verified under IEC 61508 Ed.2 (2010) and IEC 61511 Ed.2 (2016). ABB backs it with a standard 365-day warranty—starting from delivery date, not commissioning. We’ve seen units run 12+ years in stable installations, but remember: certification validity ties to firmware and configuration, so keep your ABB support contract active if you need audit-ready documentation.
