ABB SC560 digital expansion sub control module

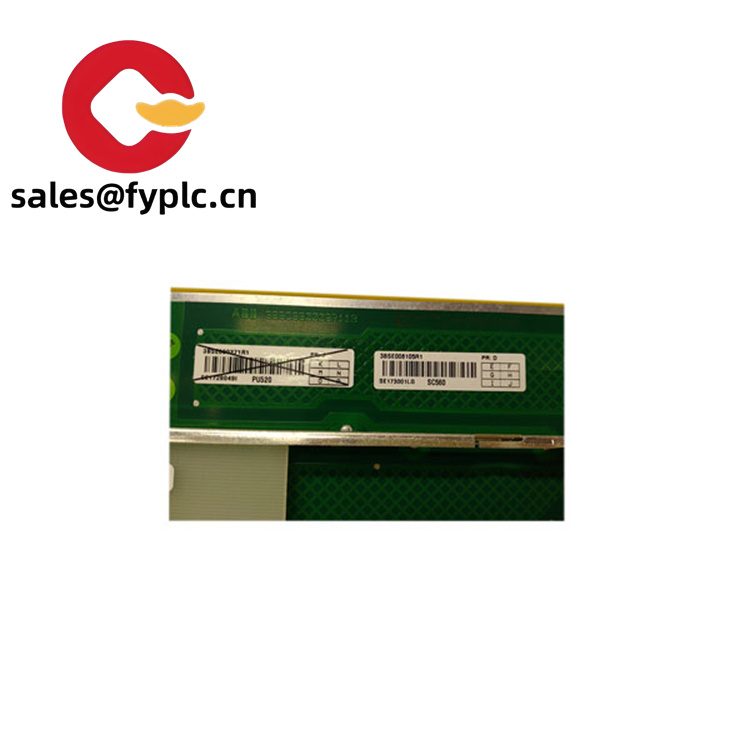

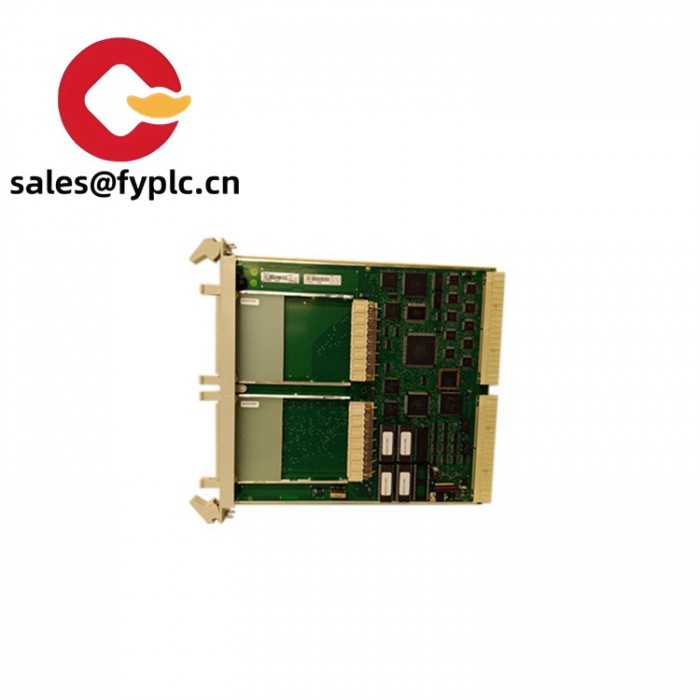

SC560

The ABB SC560 is a high – performance servo controller, serving as the nerve center of servo systems. Its primary function is to precisely regulate the movement of servo motors, enabling accurate positioning, velocity control, and torque management. Designed to seamlessly integrate with a wide range of servo motors and other automation components, the SC560 can execute complex motion profiles with exceptional accuracy and repeatability. Whether it’s powering the intricate maneuvers of robotic arms in manufacturing, facilitating the smooth operation of conveyor systems in logistics, or ensuring the high – speed and precise machining of parts in CNC operations, the ABB SC560 plays a pivotal role in optimizing industrial processes.

Label	Specification
Model Number	SC560
Brand	ABB
Type	Servo Controller
Input Voltage	380 – 480 V AC, three – phase
Output Power	Up to 30 kW
Control Modes	Position control, Velocity control, Torque control, Electronic gearing, Camming
Communication Protocols	EtherCAT, PROFINET, Modbus TCP, CANopen
Feedback Types Supported	Sin/Cos encoders, incremental encoders, absolute encoders (SSI, BiSS – C)
Operating Temperature	– 10°C to + 50°C
Mounting Options	Panel mount, Rack mount
Weight	Approximately 4 kg
Certifications	CE, UL, cUL, RoHS, IEC 61800 – 3
Dimensions	250 x 150 x 180 mm (Length x Width x Depth)

SC560

The ABB SC560 truly excels in real – world industrial applications, owing to its outstanding performance features. With multiple control modes at its disposal, it offers unparalleled flexibility to adapt to different application requirements. In precision manufacturing, the position control mode can achieve sub – micron level positioning accuracy, ensuring that components are assembled with extreme precision. Its high – speed processing capabilities enable rapid response, allowing it to handle complex and dynamic motion profiles with ease. For instance, in high – speed pick – and – place operations in the electronics industry, it can swiftly adjust the motor’s speed and position to meet tight cycle times while maintaining accuracy, significantly boosting production efficiency.
​

SC560

One of the key strengths of the ABB SC560 is its extensive support for communication protocols. EtherCAT provides high – speed, deterministic communication, enabling seamless integration into advanced automation networks and ensuring real – time control and monitoring. PROFINET offers reliable connectivity for industrial Ethernet – based systems, facilitating interoperability with a wide range of devices. Modbus TCP and CANopen ensure compatibility with legacy systems, making it convenient to retrofit the controller into existing setups. This versatility in communication allows for centralized control and monitoring of the servo system through human – machine interfaces or programmable logic controllers.
