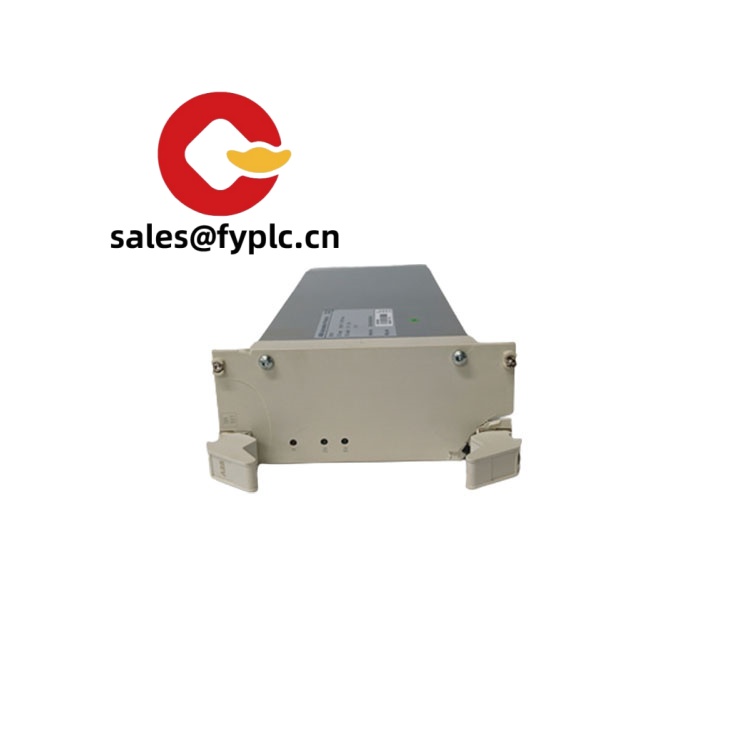

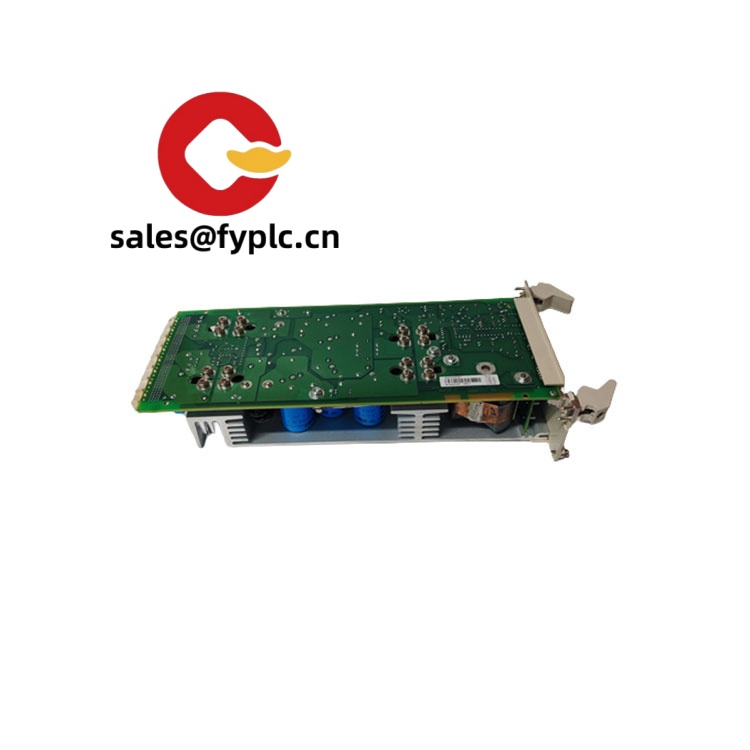

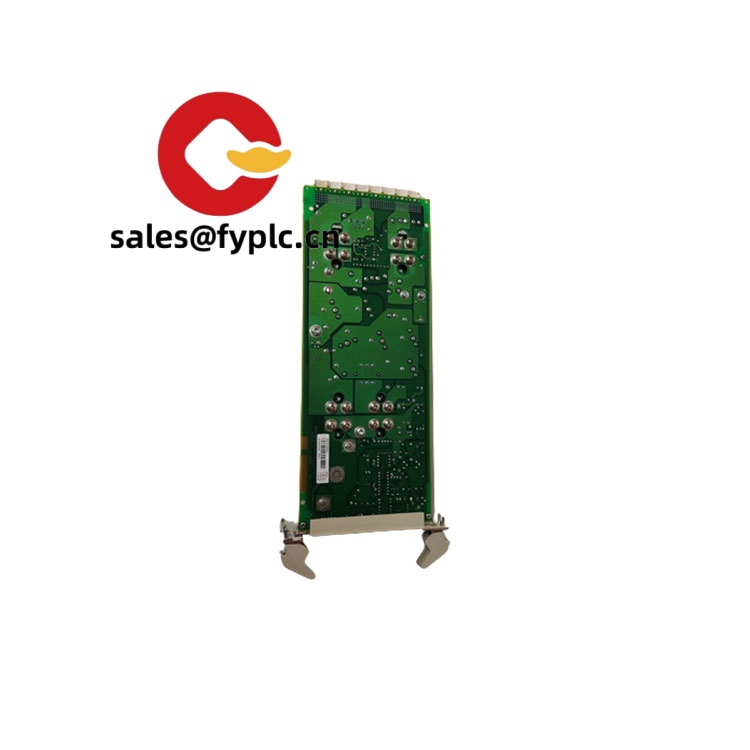

ABB SR511 (3BSE000863R0001) – Relay Interface Module for S800 I/O / AC 800M Control Systems

The ABB SR511, model 3BSE000863R0001, is a relay interface module used within ABB S800 I/O-based control systems (commonly paired with AC 800M). From my experience, plants typically deploy the SR511 to cleanly switch discrete field loads and to provide galvanic isolation between sensitive controller backplanes and on/off devices in the field. You might notice that it follows the familiar S800 footprint, so it drops onto a TU8xx terminal base without fuss and keeps panel layouts clean.

Company’s Order Placement Process and Guarantees

• Warranty: 365 days
• Delivery time: 1 week for in-stock; no more than one month at the latest
• Payment: 50% advance payment, full payment for delivery
• Express delivery: FedEx, UPS, DHL

Key Features

• Relay isolation for field signals – Typically used to separate controller electronics from inductive loads, reducing noise and extending I/O life.
• Direct fit to S800 I/O terminal bases – Plugs onto TU8xx series bases; installation is straightforward in most cabinets.
• 24 VDC system power – Draws power through the S800 backplane; no extra power brick in many cases.
• Service-friendly form factor – Hot-swap style handling in typical S800 setups helps minimize downtime during replacement.
• Clear status indication – You typically get local LEDs per channel or per module, making troubleshooting much quicker onsite.
• Industrial temperature performance – Designed for control cabinets in process and factory environments.
• Compatibility with AC 800M architectures – Keeps your system standard, especially when mixed with DI/DO/AI/AO S800 modules.

Technical Specifications

Note: The SR511 is a supporting relay interface used in the S800 I/O ecosystem. Exact channel counts and contact ratings vary by wiring and final configuration; for critical sizing (load current, inrush, and switching voltage), it’s best to verify against your installed base and ABB documentation.

Application Fields

The SR511 is typically chosen wherever discrete field loads need clean isolation and dependable switching tied to ABB S800 I/O:

• Process automation with AC 800M (oil & gas, chemicals, pulp & paper)
• Water & wastewater facilities (pump starters, valve actuators, local alarms)
• Power generation balance-of-plant (fans, dampers, interlocks)
• Factory automation lines (light stacks, relays to MCCs, solenoids)
• Metals, mining, and cement plants where robust relay isolation extends I/O longevity

A maintenance supervisor told me they swapped an SR511 in under 10 minutes without re-terminating wires, which seems to be the real-world benefit of keeping everything in the S800 family.

Advantages & Value

• System compatibility – Maintains standardization with S800 I/O and AC 800M, simplifying spares and engineering.
• Reliability under load – Relay isolation typically reduces stress on controller outputs and helps with inductive kickback.
• Lower lifecycle cost – Fewer non-standard parts and less panel rework; quicker swap times during outages.
• Predictable support – Well-documented within ABB’s S800 ecosystem; easy for technicians familiar with the platform.

Installation & Maintenance

• Cabinet environment – Mount on DIN rail with the TU8xx terminal base. Provide ventilation; keep within typical -20…+55°C ambient and avoid condensation.
• Wiring – Follow ABB terminal base drawings; use correctly rated conductors and ferrules. Keep relay loads within rated limits; add surge suppression on inductive loads.
• Grounding & EMC – Bond panel ground properly; route high-voltage and signal wiring separately to reduce noise.
• Safety – Isolate 24 VDC and field power before handling. Observe ESD precautions when inserting/removing modules.
• Routine checks – Periodically verify contact operation, tighten terminals, clean dust, and confirm firmware/alignment with your control strategy where applicable.

Quality & Certifications

• Manufacturer quality systems typically aligned with ISO 9001
• CE conformity and RoHS alignment are common for S800 modules
• UL/CSA recognition available on many ABB modules in this family
• Warranty: 365 days
