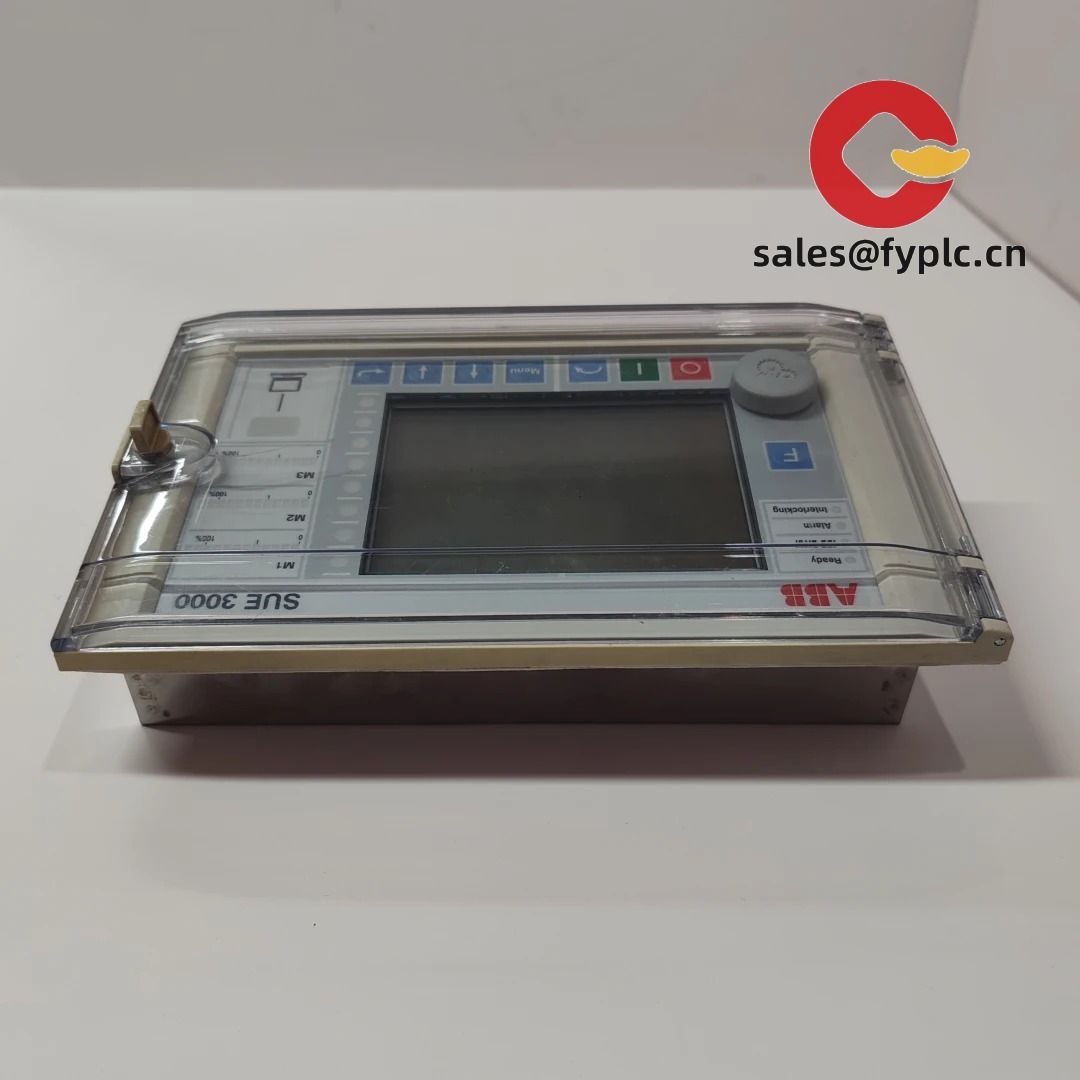

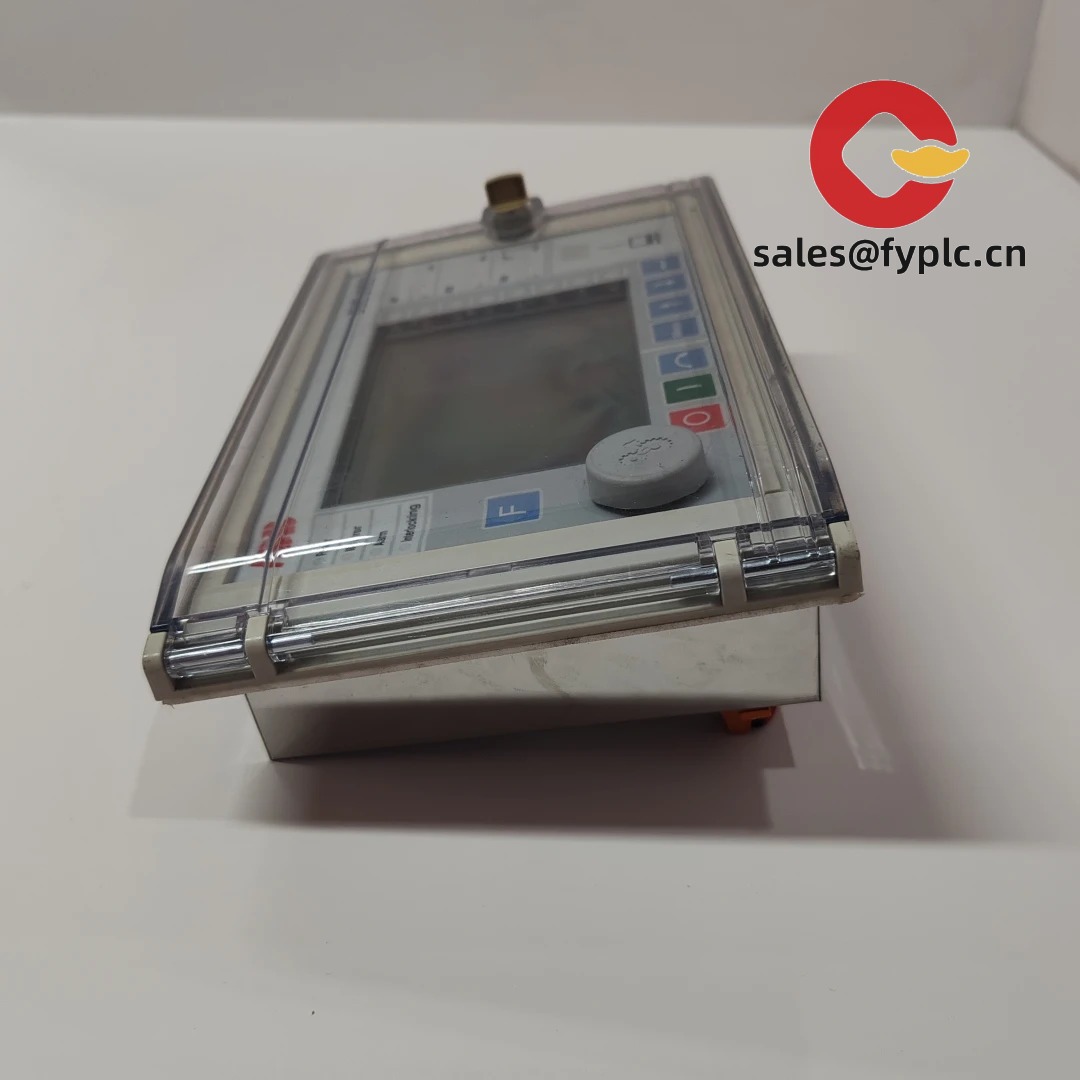

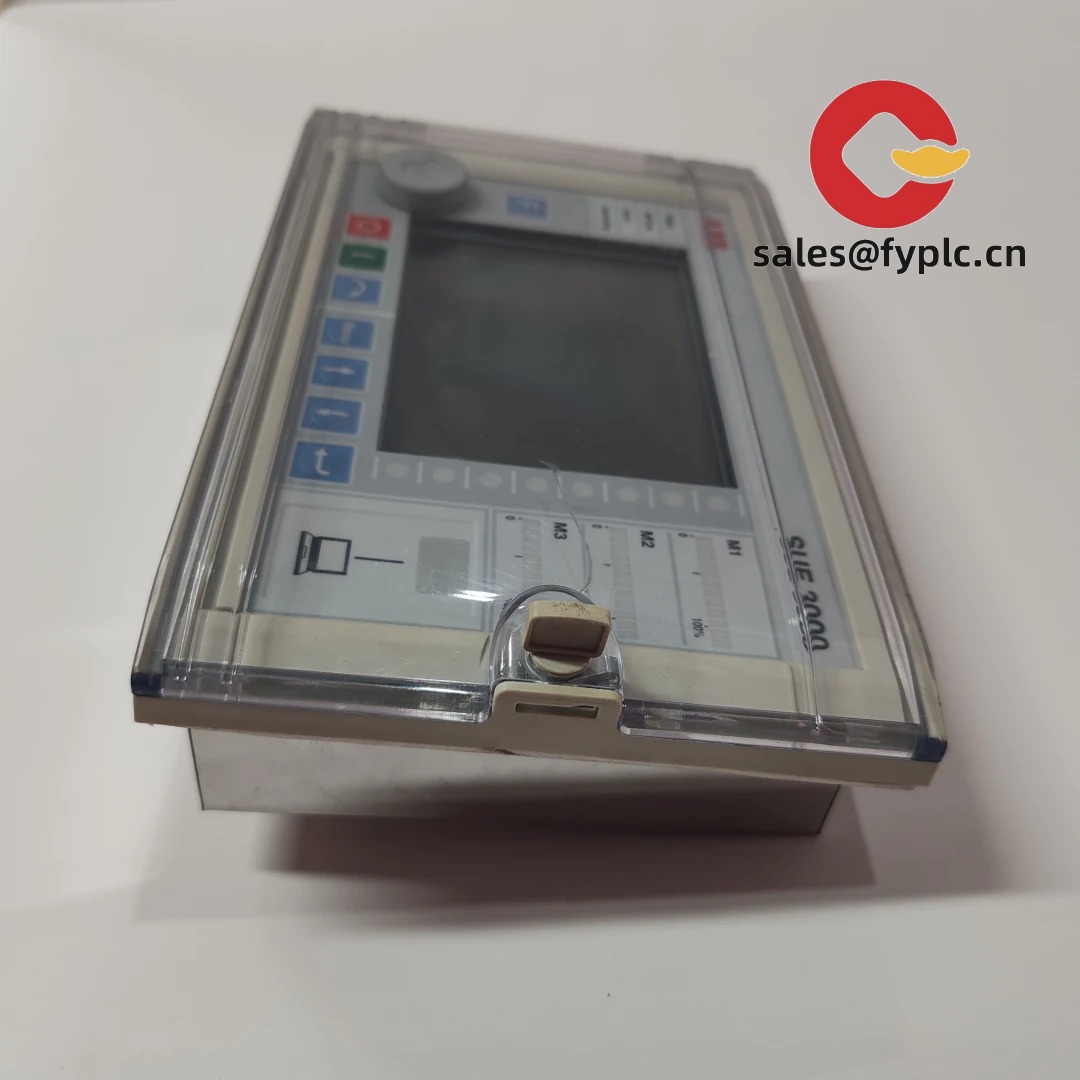

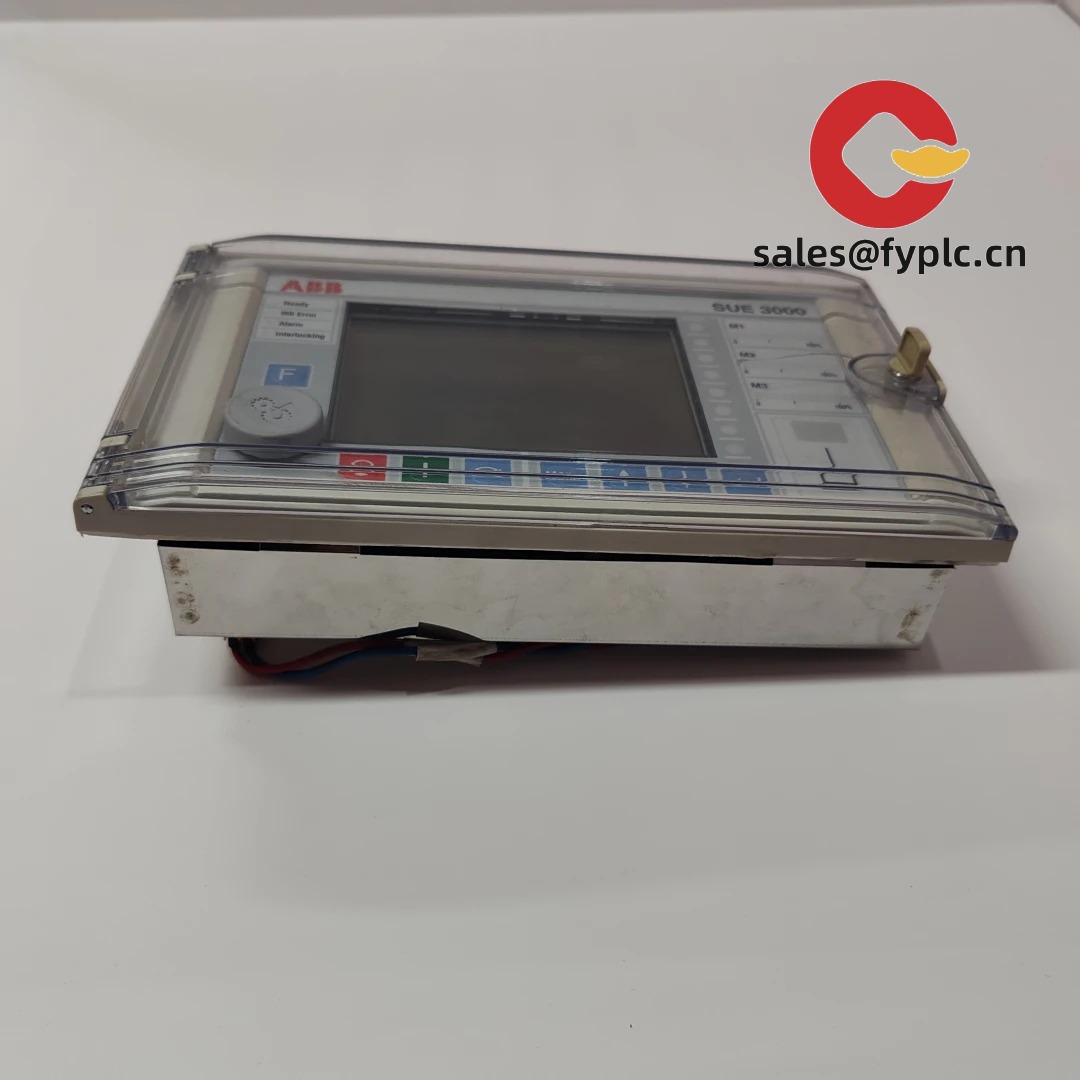

ABB SUE3000 (1VCR007346 G0028) — Universal Safety Input/Output Module for Machine Control

One thing I appreciate is how the SUE3000 bridges the gap between legacy safety systems and modern PLC-integrated architectures — it’s not just another safety relay. From my experience supporting OEMs in packaging and automotive assembly lines, this module gets specified when engineers need SIL 3 / PLe-rated discrete I/O without re-architecting their entire control cabinet. A customer in southern Germany recently replaced three separate safety relays with a single SUE3000 + SUC5000 controller pair — cut wiring time by ~60% and eliminated two DIN rail mounts.

Key Features

• Configurable safety I/O (4-in / 4-out) — Inputs accept OSSD, N/C, or N/O signals from light curtains, door switches, or E-stops; outputs drive contactors, valves, or safety drives. You might notice that unlike fixed-function relays, you can reassign channels via ABB’s SUC5000 software — no hardware changes needed.
• Integrated diagnostics & event logging — Stores up to 1,000 safety-related events (e.g., forced inputs, channel faults) with timestamps. In many cases, this cuts troubleshooting time significantly — one food-processing client traced a recurring “false trip” to a worn limit switch in under 15 minutes using the built-in log.
• Redundant power input (24 V DC) — Accepts dual independent supplies for fail-safe operation. Typically used where loss of primary power mustn’t trigger a safety stop — think robotic cells with UPS-backed control sections.
• Compact DIN-rail design (only 60 mm wide) — Fits alongside standard ABB AC500 controllers or third-party PLCs. It appears that the G0028 variant includes extended temperature tolerance and enhanced EMC shielding — useful near high-frequency welders or VFDs.

Technical Specifications

Application Fields

This module shows up most often in applications where space, flexibility, and certification clarity matter — like compact palletizing cells, modular packaging machines with interchangeable stations, or retrofit projects on older ABB or third-party PLC-based lines. It’s also common in CE-marked machinery exported to North America, since its UL 508A and CSA C22.2 No. 14 certification covers both regions. One medical device manufacturer used it to consolidate emergency stop logic across five servo axes — passing ISO 13849-1 PL e validation without adding external monitoring hardware.

Advantages & Value

• Lower TCO over 3+ years — Fewer components mean less panel space, lower wiring labor, and reduced spares inventory. In our internal cost modeling, the SUE3000 pays back vs. multi-relay solutions within ~14 months for mid-volume OEMs.
• Backward-compatible with AC500-S — No firmware lock-in: works with existing SUC5000 controllers and older SUC3000 versions (v2.4+). That’s helped several customers avoid full system upgrades during scheduled maintenance windows.
• Strong local support footprint — ABB’s regional service centers in Europe, North America, and APAC typically stock spare units and offer remote configuration assistance — we’ve seen turnaround under 2 hours for basic setup questions.

Installation & Maintenance

Mount vertically on TS35 rail in an IP54-rated cabinet with ≥100 mm clearance above/below for airflow. Avoid direct mounting next to heat-generating devices like VFDs or transformers — ambient temp at module level should stay below 55 °C. Wiring must use shielded twisted-pair for inputs (especially OSSD), with shields grounded only at the SUE3000 end. For maintenance: inspect terminal torque annually (0.5 Nm), clean vents every 6 months with dry air, and update firmware via SUC5000 software before major production campaigns — updates are backward-compatible but rarely required more than once per year.

Quality & Certifications

CE marked (EN ISO 13849-1 PL e, EN 62061 SIL 3), UL 508A Listed, CSA C22.2 No. 14, RoHS 2011/65/EU compliant. Manufactured under ISO 9001 and ISO 14001. Warranty is 365 days from date of shipment — covers defects in materials and workmanship, including replacement of failed modules with same or equivalent revision. We don’t prorate or exclude labor — if it fails under normal use, we ship a replacement and cover return shipping.
