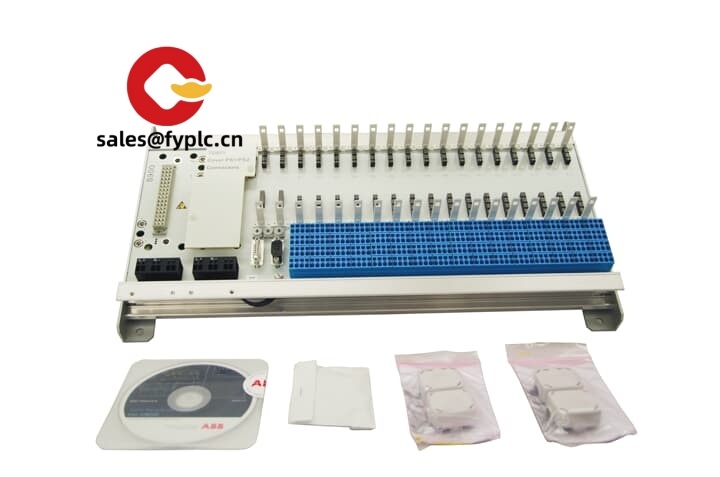

ABB TU921S (3KDE175111L9210) – S900 I/O Termination Unit for clean, reliable field wiring

If you’re building or expanding an ABB Freelance/800xA system with S900 I/O, the TU921S is the compact termination unit that tidies up field connections and keeps maintenance straightforward. From my experience, it’s the kind of passive hardware you install once and hardly think about again—until you need fast channel tracing or a clean swap of an I/O module.

Company’s Order Placement Process and Guarantees

• Warranty: 365 days
• Delivery: 1 week when in stock; no more than one month at the latest
• Payment: 50% advance payment; full payment before delivery
• Express options: FedEx, UPS, DHL

Key Features

• Purpose-built for ABB S900 I/O – Pairs with S900 input/output modules to present neat, clearly labeled terminal points for field wiring.
• Passive, no-setup design – No firmware or configuration. It simply routes signals between the module and field, which typically improves reliability.
• DIN-rail mounting – Quick to clip into standard control cabinets; ideal for tight panels and modular expansions.
• Service-friendly layout – You might notice that channel IDs and terminal groupings make commissioning and loop checks faster in many cases.
• Supports mixed signal types – Works with the S900 module you choose (DI, DO, AI, AO, HART-capable analog), so one wiring base can fit multiple I/O strategies.
• Robust industrial build – Designed for cabinet environments common to process plants, utilities, and OEM skids.

A maintenance supervisor at a water treatment site told us the TU921S made fault-finding “a five‑minute job,” because the terminal layout mirrors the S900 module channels one-to-one. That sounds small, but during a shutdown it’s the difference between calm and chaos.

Technical Specifications

Related or Supporting Products

• ABB TU920 / TU910 – Alternative S900 termination units with differing terminal layouts or wiring density, depending on module families.
• ABB S900 I/O Modules (examples: DI930, DO930, AI930, AO930 series) – Choose the module type, then pair it with TU921S for field termination. The TU carries the wiring; the module defines the signal type.
• Freelance AC 900F / 800xA Controllers – System controllers that interface to S900 I/O via the appropriate communication modules.
• Shielded signal cable & 24 VDC field supply – Common accessories for analog loops and proximity sensors in process cabinets.

Installation & Maintenance

• Cabinet environment: Install on a grounded DIN rail in a ventilated enclosure. Maintain typical 0…55°C ambient and keep the TU away from high-EMI devices where possible.
• Wiring practice: Use ferrules on stranded conductors; separate analog, digital, and power lines. For analog/HART, shielded twisted pairs are usually the safe choice.
• Grounding & shielding: Terminate shields per site EMC policy (one end or both ends as specified) to reduce noise on low-level signals.
• Terminal torque: Tighten to the manufacturer’s standard for small screw terminals; re-check after first thermal cycle.
• Service tips: Since TU921S is passive, there’s no firmware. Routine checks typically include inspecting terminal tightness, labeling, and verifying channel continuity during planned outages.
• Replacement: Module hot-swap practices apply to the S900 I/O module; the TU usually stays in place unless damaged.

Quality & Certifications

• Certifications: Typically CE-marked and RoHS-compliant; UL/cUL recognition in many cases depending on the installation and region.
• Manufacturing Quality: ABB products are produced under ISO 9001 quality systems.
• Warranty: 12 months (365 days) from shipment, covering manufacturing defects under normal use.

If you’re standardizing on S900 I/O, TU921S seems to be the practical, low-risk choice for clean wiring and easy servicing. It keeps the system modular so expansions or signal mix changes are simple later on.
