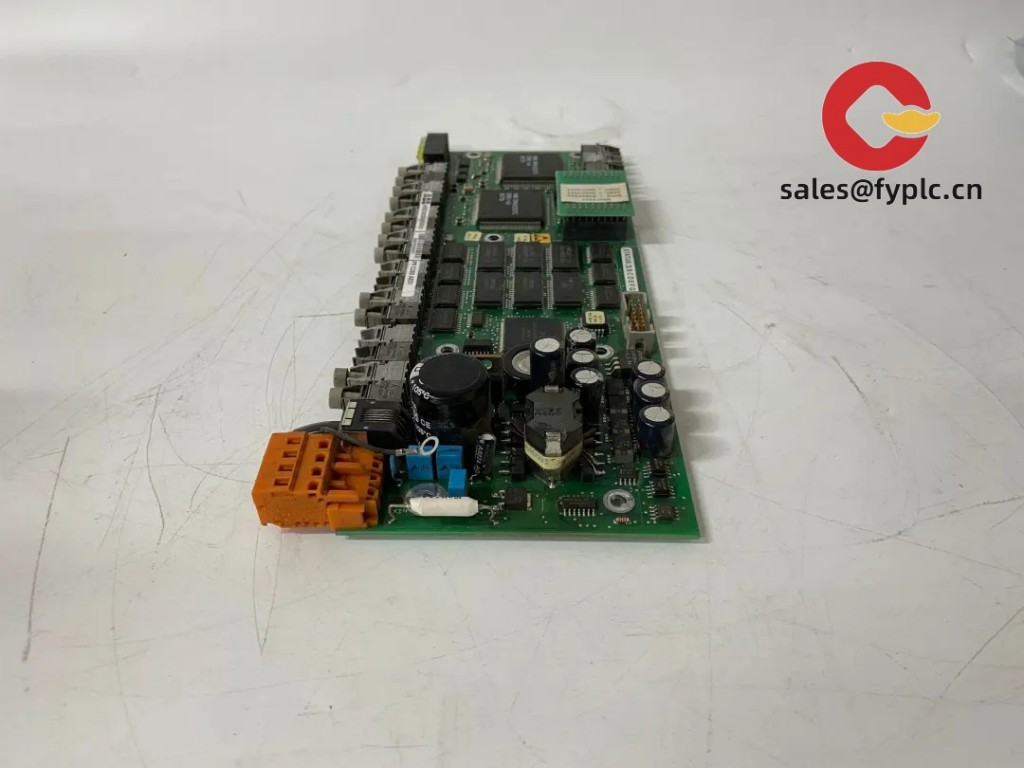

ABB UAC317AEV1 – Advanced Control Module for Industrial Automation Systems

If you’re managing distributed control systems in power generation or heavy process industries, the ABB UAC317AEV1 typically shows up as a reliable player. It’s not just another module on the rack—it serves as a communication and interface processor within ABB’s Symphony® Plus (S+), handling critical signal coordination between subsystems. From my experience, this unit tends to appear in turbine control retrofits or when upgrading legacy Advant controllers.

Key Features

• Digital I/O & Communication Gateway: Manages discrete signals while acting as a bridge between Modbus devices and the main DCS—useful if you’re integrating third-party equipment without overloading the central controller.
• Redundancy Support: Designed for dual-channel setups, so system uptime improves significantly during failover scenarios. One thing I appreciate is how seamlessly it handles switchover in live environments.
• Real-Time Processing: Offers deterministic response times under typical load conditions, which matters when dealing with interlocks or emergency shutdown sequences.
• Firmware Flexibility: Supports field-upgradable firmware via engineering stations, though caution is advised—some users report issues when skipping intermediate versions.
• Backward Compatibility: Seems to be compatible with older ACxxx series racks, making it a cost-effective upgrade path instead of full cabinet replacement.

Technical Specifications

Application Fields

The UAC317AEV1 pops up most often in mid-tier automation roles—think boiler control panels in district heating plants, auxiliary monitoring in combined cycle power stations, or safety logic in water treatment facilities. In many cases, it replaces aging AC31 modules where improved diagnostics and faster scan rates are needed. You might notice that it’s rarely used standalone; rather, it integrates tightly into larger S+ architectures, especially where legacy Modbus slave devices need centralized supervision.

Advantages & Value

Procurement-wise, going with an original ABB module like this one usually pays off in reduced integration risk. While third-party clones exist, they tend to lack certified firmware validation, which can delay commissioning. This model supports standard ABB engineering tools (Control Builder S+), meaning your team won’t need extra training. Also, spare part pooling across existing ABB sites becomes easier—something maintenance managers tend to highlight during audits.

Installation & Maintenance

Install only in clean, dry enclosures meeting IP20 standards. Make sure there’s at least 50 mm clearance on both sides for heat dissipation—these units don’t have fans, so convection cooling is key. Wiring should use shielded twisted-pair cables for digital inputs, grounded at one end to avoid ground loops. For maintenance, periodic checks of terminal tightness every 18 months help prevent intermittent faults. Firmware updates should be done through authorized engineers using verified .hex files; random flashing could brick the processor.

Quality & Certifications

Certified to CE, UL 60950-1, and compliant with RoHS directives. Built under ISO 9001-controlled processes at ABB facilities. Comes with a 365-day warranty covering defects in materials and workmanship. No coverage for damage due to incorrect voltage input or improper handling—so double-check those power supplies before energizing.

Order Notes: Delivery takes about one week for in-stock units; otherwise, no more than a month. Payment requires 50% upfront, balance before shipment. We ship globally via FedEx, UPS, or DHL—your choice.
