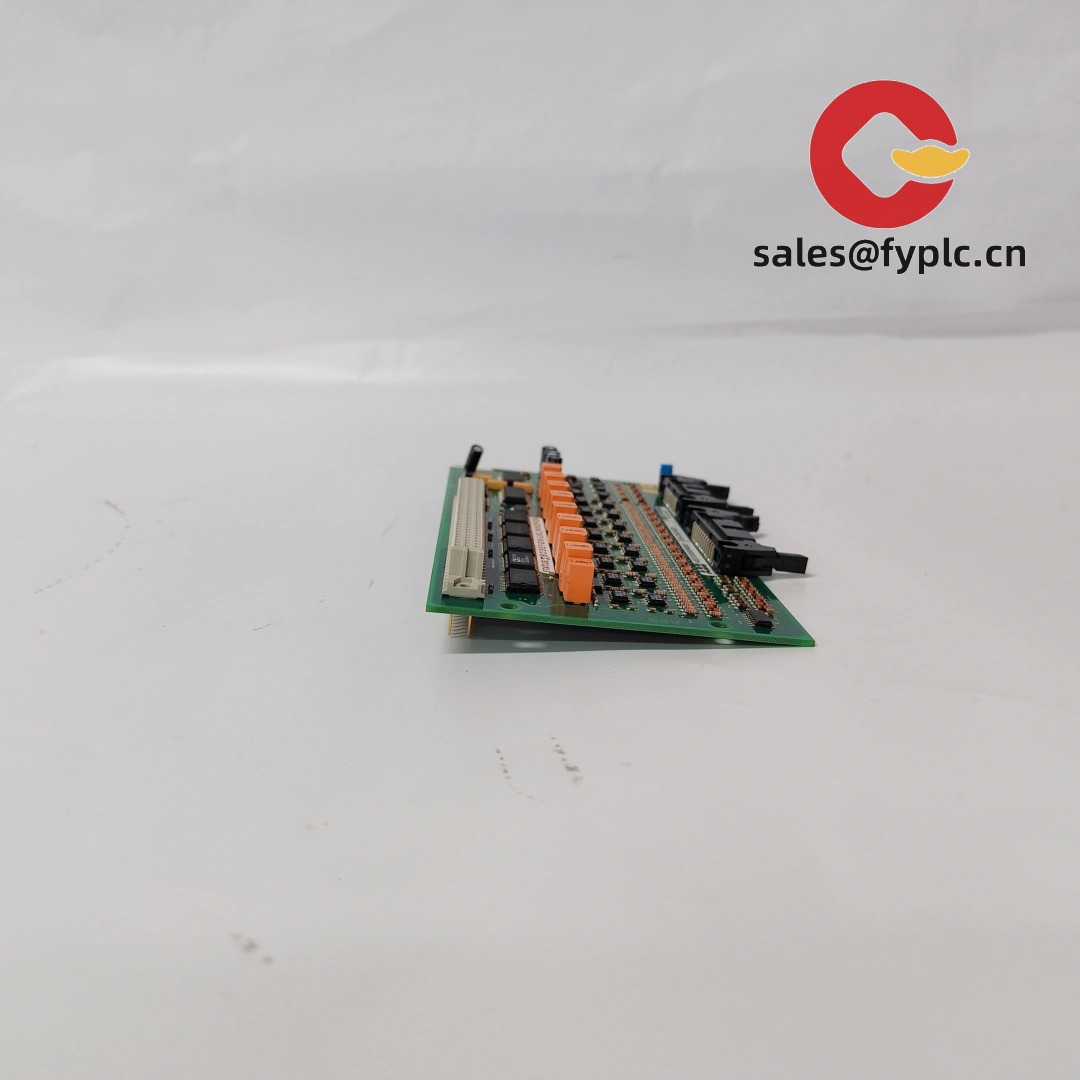

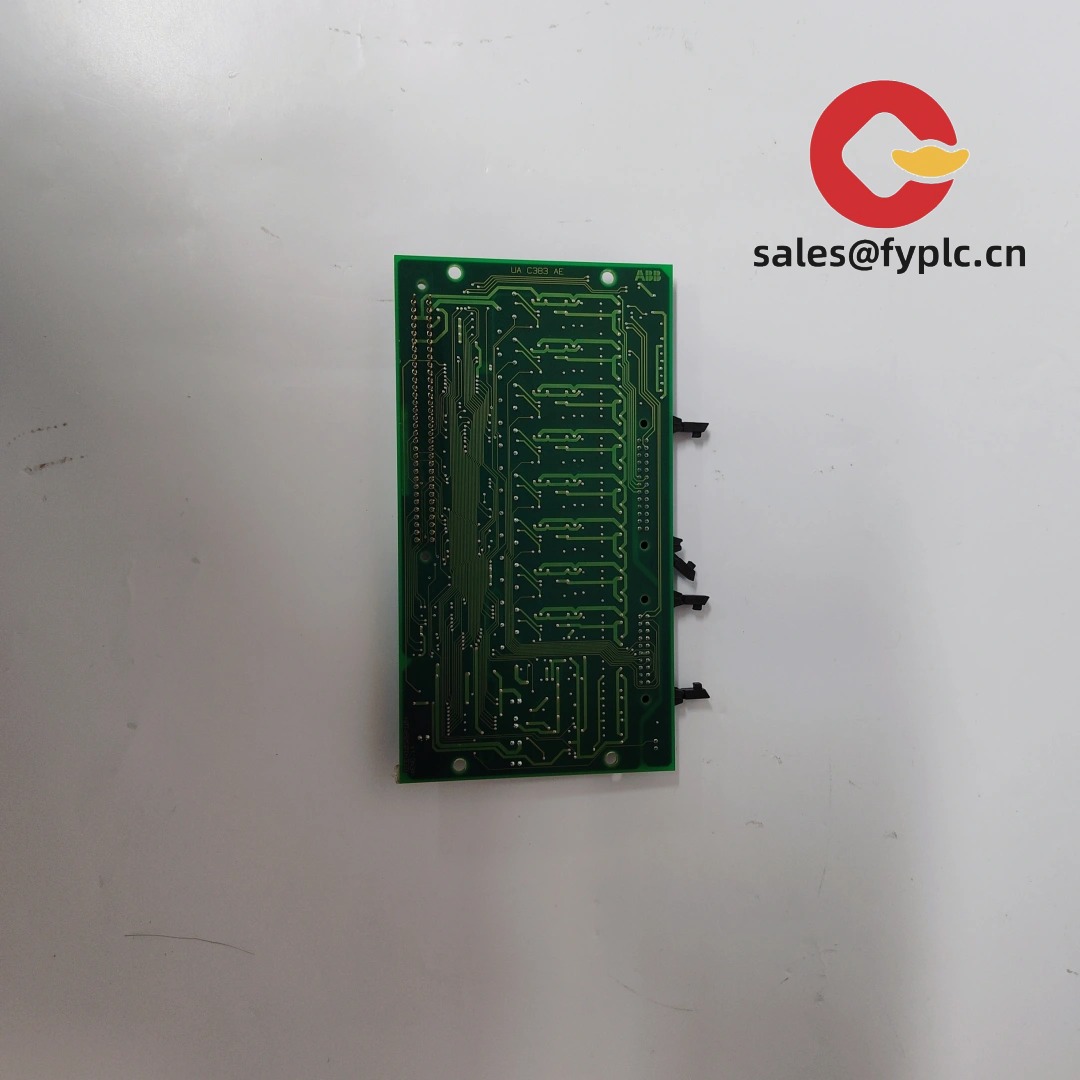

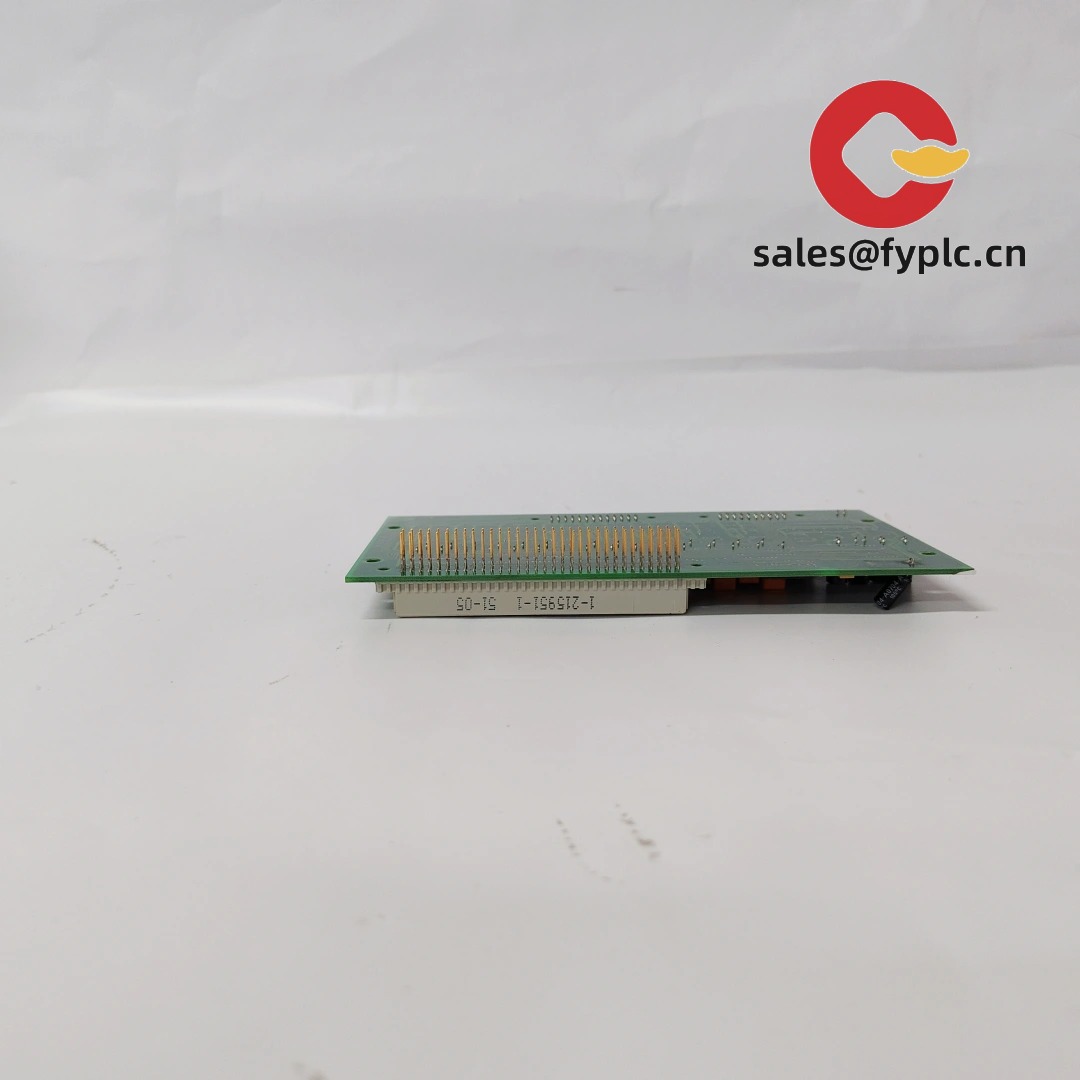

ABB UAC383AE01 — Universal Analog Controller for Modular Process Automation

Let’s cut to the chase: the UAC383AE01 isn’t just another analog I/O module—it’s ABB’s compact, field-configurable controller designed to sit right inside AC 800M or Freelance control cabinets and handle signal conditioning, scaling, alarm logic, and basic closed-loop control without pulling in a full PLC cycle. From my experience supporting mid-sized water treatment plants and packaging lines, this unit shines where you need deterministic analog response—say, regulating pH with a 4–20 mA probe or managing valve position feedback under fast-changing load conditions.

Key Features

• Configurable analog processing — Each of its 4 universal inputs (voltage/current/thermocouple/RTD) and 2 outputs can be independently scaled, filtered, and assigned alarms or math functions (e.g., min/max hold, rate-of-change limit) via Control Builder M — no ladder logic required.
• Integrated safety logic — Includes configurable “safe output” modes (e.g., last value, fixed value, ramp-to-zero) triggered by communication loss or internal fault — useful when interfacing with SIL-2-rated actuators in HVAC or pump control.
• Real-time diagnostics — Built-in self-test reports open-circuit, short-circuit, and out-of-range conditions on each channel, visible both locally (LED status per channel) and via system diagnostics in ABB’s 800xA.
• Hot-swap capable — You might notice that it slides into standard AC 800M I/O racks without powering down the backplane — a real time-saver during plant maintenance windows.
• EMC-hardened design — Rated for industrial environments with ±2 kV surge immunity (IEC 61000-4-5) and 1500 Vrms channel-to-bus isolation — we’ve seen it run reliably next to VFDs in compressor skids without added filtering.

Technical Specifications

Application Fields

This controller shows up most often where analog integrity matters more than raw compute power: continuous emissions monitoring systems (CEMS) needing linearized gas sensor outputs, food & beverage fill-level controllers using load-cell signals, or boiler feedwater systems where a single UAC383AE01 handles drum level, feed flow, and steam pressure — all feeding clean, pre-processed data into the main DCS. It’s less common in discrete manufacturing, but one customer in Sweden used six of them across a modular bioreactor skid to decouple sensor conditioning from their central PLC — reducing scan time jitter by ~18 ms per loop.

Advantages & Value

• No hidden integration tax — Unlike third-party analog modules, it’s natively recognized in Control Builder M with drag-and-drop function blocks and automatic address mapping. In many cases, engineering time drops by 30–40% compared to configuring generic HART multiplexers.
• Long-term spare parts visibility — ABB maintains UAC383AE01 in active production (as of Q2 2024), and firmware updates are bundled with AC 800M releases — no surprise obsolescence like what happened with some legacy S800 variants.
• Lower TCO over 5+ years — Because it shares the same diagnostics infrastructure and cabling standards as other AC 800M I/O, spares inventory, training, and troubleshooting workflows stay unified. One pharma client reported cutting annual calibration labor by ~22 hours after switching from mixed-vendor analog cards.
• Strong local support footprint — If your site is in North America, Europe, or APAC, ABB typically offers 4-hour remote diagnostics SLA and next-business-day hardware replacement for critical failures — something harder to guarantee with niche analog vendors.

Installation & Maintenance

Mount it in a well-ventilated cabinet meeting IEC 61800-5-1 (IP20 minimum). Keep ambient temperature below 55 °C — we’ve seen thermal drift creep in if placed directly above a 3 kW VFD drive without spacing. Use shielded twisted-pair cable for analog inputs (drain wire grounded at controller end only), and avoid routing alongside 400 V AC power cables — separation of ≥200 mm helps keep noise below 5 µV RMS.

For maintenance: calibrate annually using ABB’s certified test set (UAC-CAL-01), clean vents every 6 months with low-pressure dry air, and check firmware version against ABB’s official release notes — v3.2.1 (released March 2024) adds improved cold-junction compensation for thermocouple inputs. No field firmware updates are possible without Control Builder M and an engineering laptop — so plan those during scheduled shutdowns.

Quality & Certifications

The UAC383AE01 carries CE (2014/30/EU, 2011/65/EU), UL 61010-1 (File E170736), RoHS 3 compliant, and meets IEC 61508 SIL-2 for hardware fault tolerance (per ABB’s FMEDA report). It’s manufactured in ABB’s Västerås facility (Sweden) under ISO 9001:2015 and ISO 14001:2015. Warranty is 365 days from shipment date — covers material defects and workmanship, excluding damage from improper installation or environmental abuse (e.g., condensation ingress due to missing cabinet seals).
