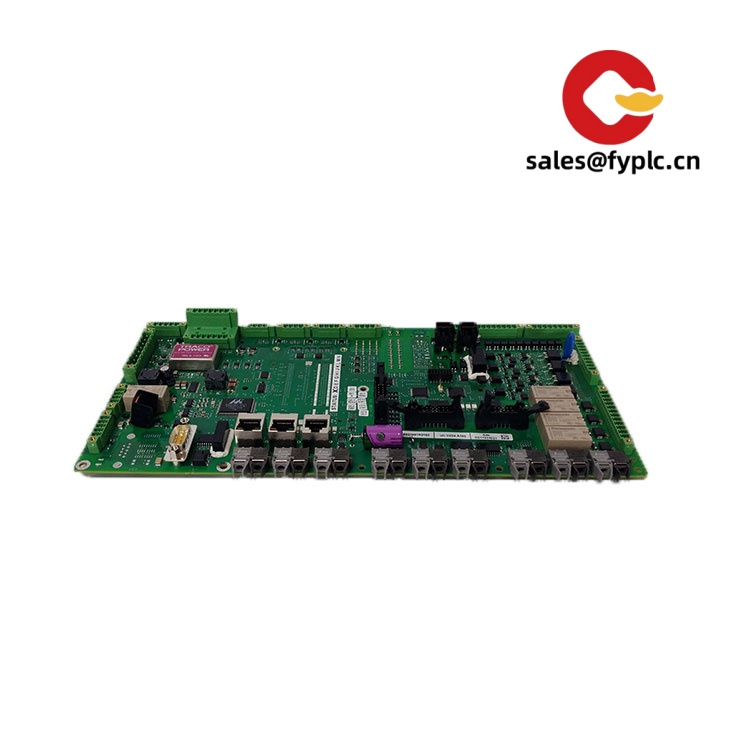

ABB UCD224A102 (3BHE023681R0102) – High‑speed Control Board for ABB Power Electronics and Drive Platforms

The ABB UCD224A102, part number 3BHE023681R0102, is a controller board typically used in ABB’s high‑performance control platforms for power electronics and converter applications. From my experience, it’s chosen as a core processing module when deterministic control, reliable fiber‑optic links, and tight integration with ABB racks are needed—think medium/high‑power drives, converter cabinets, and PEC-based process control where uptime matters more than anything.

Order Placement Process and Guarantees

• Warranty: 365 days
• Lead time: typically 1 week if in stock; no more than one month at the latest
• Payment: 50% advance payment; full payment prior to delivery
• Express delivery: FedEx, UPS, DHL

One thing I appreciate is how predictable the process is—especially helpful for maintenance windows. You might notice that we try to align shipment timing with site access or planned shutdowns to reduce commissioning friction.

Key Features

• High‑speed control core – Designed for fast, deterministic control loops in power electronics and drive systems.
• Backplane integration – Slides into ABB racks with standardized connectors for power, I/O, and inter‑module signaling.
• Fiber‑optic links (platform‑dependent) – In many cases supports optical interfaces to I/O or converter stages for noise immunity.
• Service/engineering access – Typically supports service access via the host platform for diagnostics, firmware, and tuning.
• Field-proven reliability – Designed for industrial duty cycles, with stable operation in cabinet environments.
• Lifecycle-friendly spares – A direct spare for installed bases using the UCD224 family, minimizing re‑engineering risk.

Technical Specifications

Brand / Model	ABB UCD224A102 (3BHE023681R0102)
HS Code	8538.90 (Parts suitable for use with apparatus of 85.37 – indicative)
Power Requirements	Backplane supplied, typically 24 VDC nominal (often 18–30 VDC range on ABB racks)
Operating Temperature	0 to +55 °C recommended ambient; non‑condensing environment (cabinet grade)
Signal I/O Types	High‑speed backplane signals; fiber‑optic links to converter/I/O (varies by host platform); electrical I/O via associated modules
Communication Interfaces	Platform‑dependent (e.g., service access via engineering port; optical field links); check installed system configuration
Installation Method	Card‑type module; installs in ABB rack/controller chassis; front‑panel fasteners for retention
Form Factor	Rack-mounted controller board (exact mechanical drawing available on request)

Notes: The UCD224A102 is commonly paired with ABB power electronics control platforms. Specific interfaces and performance are tied to the exact rack, firmware, and application configuration. If you share your installed base or firmware level, we can validate compatibility quickly.

Application Fields

• Medium and high‑power drive systems (AC/DC)
• Converter and rectifier control in metals, paper, and mining
• Winders, rolling mills, and web handling with fast control loops
• Power electronics test stands and PEC‑based R&D rigs
• Marine and utilities where fiber‑optic isolation is preferred

Advantages & Value

• Drop‑in compatibility – Keeps existing cabinets and wiring; reduces downtime and re‑engineering.
• Stable supply and serviceability – Easier lifecycle management for installed ABB bases.
• Noise‑robust architecture – Optical links and backplane signaling that typically perform well in harsh EMC environments.
• Lower total cost of maintenance – A targeted spare often avoids full controller migration costs.
• Technical support – We can help verify firmware pairing and slot mapping before you schedule the outage.

A maintenance manager from a metals plant told us this board “saved a weekend shutdown,” because it slotted in cleanly and passed loop checks on the first try. That’s usually the best measure—how quickly it gets you back in production.

Installation & Maintenance

• Cabinet & environment – Install in a clean, ventilated control cabinet; maintain ambient 0…55 °C and non‑condensing humidity.
• Power & grounding – Ensure stable 24 VDC backplane power and proper protective earth bonding to the rack and door.
• ESD handling – Use grounding straps and ESD-safe packaging when installing or removing the card.
• Wiring & optics – Route fiber‑optic and signal cables with minimum bend radius; segregate from power cabling where possible.
• Firmware alignment – Match board revision (A102) and firmware with the host system to avoid compatibility issues.
• Routine care – Periodic cabinet dust removal, connector reseat checks during planned shutdowns, and backup of controller configuration.

Quality & Certifications

• Manufacturer quality systems: typically ISO 9001
• Conformity: CE marking applicable to the host system; RoHS compliance commonly observed on modern spare builds
• Safety: UL/CSA recognition may apply at the assembly/system level
• Warranty: 365 days against defects in materials and workmanship

Helpful Procurement Tips

• Share the installed platform and firmware revision so we can confirm the UCD224A102 (3BHE023681R0102) is a fit.
• If you’re stocking spares, plan at least one per controller plus a buffer for high‑criticality lines.
• We can bench‑check and package to your site’s ESD/labeling standards upon request.
