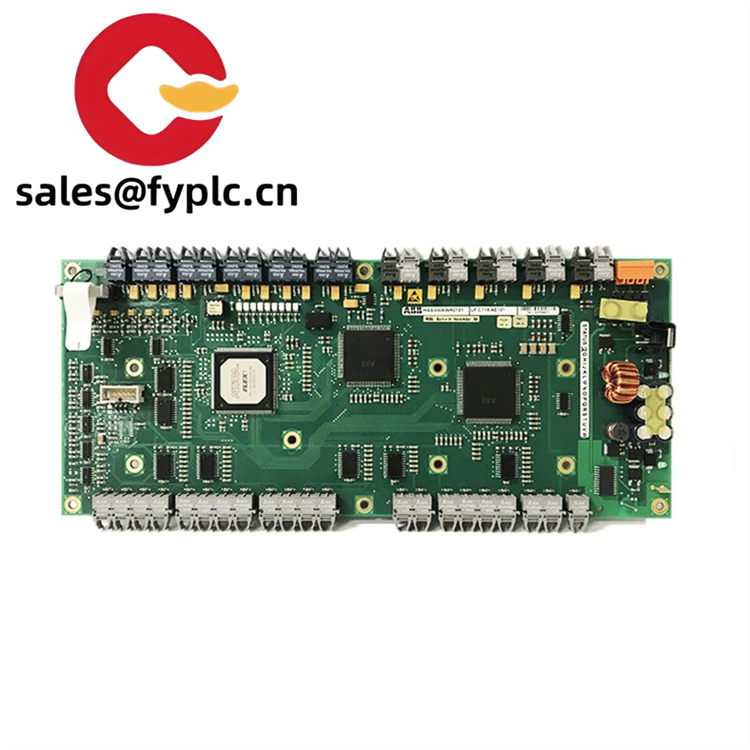

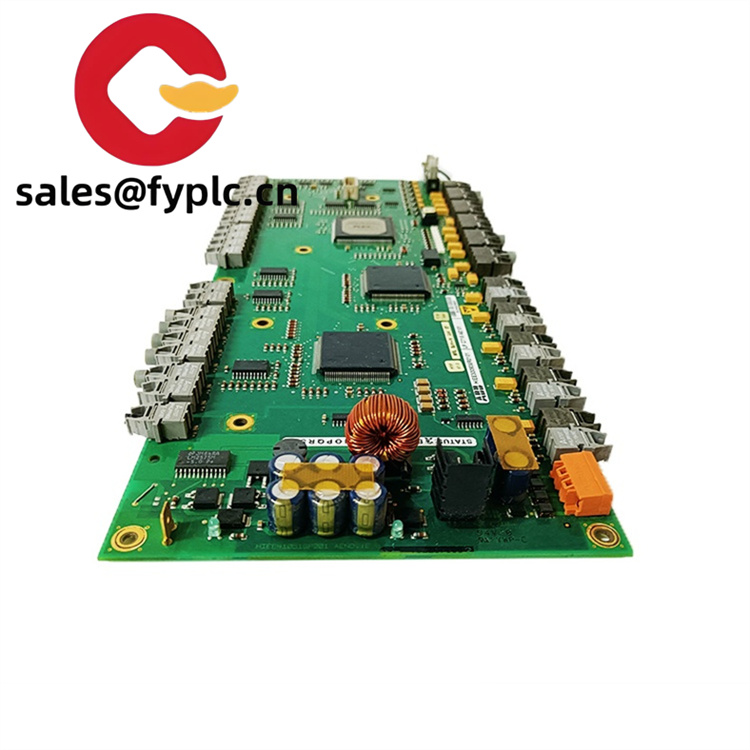

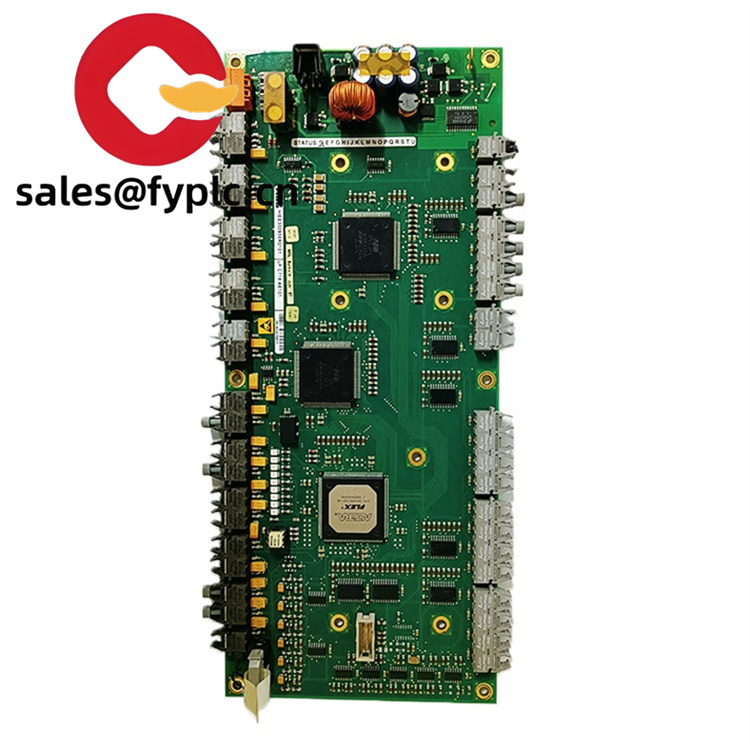

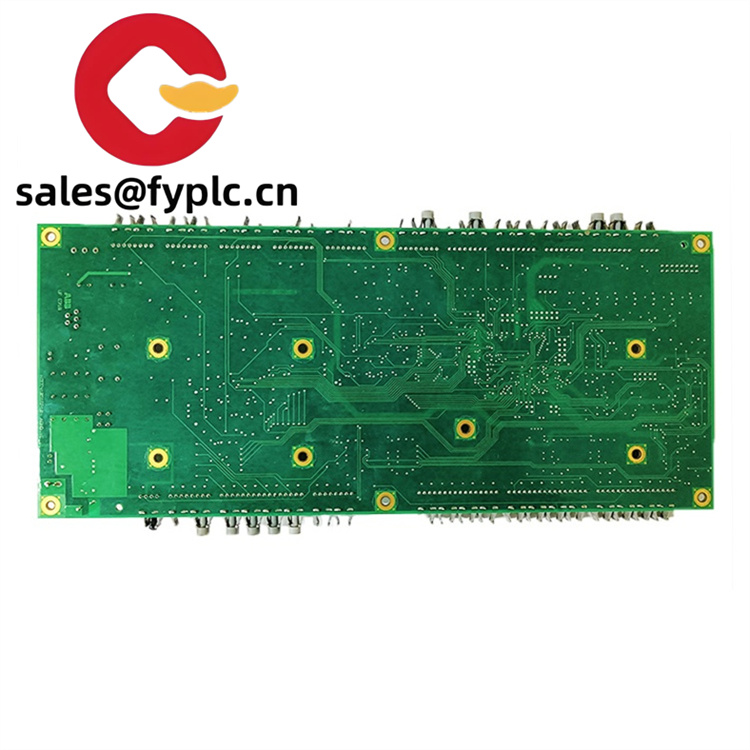

ABB UFC718AE01-HIEE300936R0001 Power Control Equipment Module
The ABB UFC718AE01 – HIEE300936R0001 is engineered to serve as a vital link in industrial automation networks. It is commonly deployed in large – scale manufacturing plants, power generation facilities, and process industries, where efficient data transfer and accurate control are essential. In a manufacturing plant, it can act as a communication hub, enabling different devices such as sensors, actuators, and programmable logic controllers (PLCs) to interact smoothly. By ensuring that data is transmitted accurately and in a timely manner, it helps maintain the overall efficiency and stability of the production process. In a power generation plant, it can contribute to the precise control of generators and other critical equipment, ensuring a consistent and reliable power supply.
| Label |
Specification |
| Model Number |
UFC718AE01 – HIEE300936R0001 |
| Brand |
ABB |
| Type |
Industrial Communication and Control Module |
| Input Voltage |
24 V DC |
| Operating Temperature |
– 25°C to + 70°C |
| Communication Interfaces |
Ethernet, Profibus DP, RS – 485 |
| Data Transfer Rate |
Up to 100 Mbps (Ethernet), various rates for other interfaces |
| Processor |
High – performance embedded processor |
| Memory |
[Specify memory size, e.g., 128 MB RAM, 256 MB Flash] |
| Mounting |
Rack – mountable |
| Weight |
Approximately 1.8 kg |
| Certifications |
CE, UL, IEC compliance |
| Dimensions |
[Length] x [Width] x [Height] mm (e.g., 220 x 120 x 90) |
| IP Rating |
IP20 |
| Protocols Supported |
Ethernet TCP/IP, Profibus DP, Modbus RTU |
The
ABB UFC718AE01 – HIEE300936R0001 offers numerous functional strengths that set it apart in the industrial automation landscape. Its high – performance embedded processor enables rapid data processing, allowing it to handle large volumes of information with ease. This ensures that there are no bottlenecks in data transfer, even in high – traffic industrial networks. With multiple communication interfaces including Ethernet, Profibus DP, and RS – 485, it can connect to a wide variety of industrial devices, regardless of their manufacturer or communication protocol. This interoperability makes it highly adaptable and easy to integrate into existing industrial systems.
The module’s substantial memory capacity allows for the storage of complex control programs and historical data. This historical data can be invaluable for analyzing system performance, identifying trends, and implementing predictive maintenance strategies. Its robust construction is designed to withstand the harsh conditions of industrial environments. It can resist electrical interference, vibrations, and temperature fluctuations, ensuring reliable operation over an extended period. The rack – mountable design simplifies installation within control cabinets, and its modular structure makes maintenance and upgrades straightforward.
In industrial use cases, the ABB UFC718AE01 – HIEE300936R0001 provides significant value. In the chemical industry, it can be used to monitor and control complex chemical processes. By facilitating communication between sensors that measure temperature, pressure, and chemical concentrations and the central control system, it enables operators to make real – time adjustments, ensuring product quality and safety. In the automotive manufacturing industry, it can coordinate the operation of robotic assembly lines. It can send and receive control signals to and from robots, ensuring that each movement is precise and synchronized, which improves production efficiency and product quality.
Several models are closely related to the ABB UFC718AE01 – HIEE300936R0001. The UFC717AE01 – A predecessor model with slightly lower processing power and fewer communication options, suitable for less complex industrial applications. UFC719AE01 – Offers enhanced processing capabilities and additional communication interfaces, ideal for large – scale and more complex industrial networks. UFC718BE01 – A variant with modified software features, tailored for specific industry requirements. UFC716AE01 – A more cost – effective option with basic communication and control functions, suitable for smaller – scale industrial setups. UFC718AE02 – Incorporates the latest technological advancements, providing improved performance and reliability compared to the UFC718AE01 – HIEE300936R0001.
Installing the ABB UFC718AE01 – HIEE300936R0001 requires following specific procedures. When mounting it on the control cabinet rack, ensure that the rack is properly grounded to prevent electrical interference. Make sure there is sufficient space around the module for proper ventilation, as overheating can affect its performance. All electrical connections, especially those for power and communication, should be made securely according to the provided wiring diagrams. Shielded cables are recommended for communication lines to minimize signal interference.
For long – term maintenance, regular inspections of the UFC718AE01 – HIEE300936R0001 are necessary. Check for any signs of physical damage, such as cracks or loose connections. Monitor the module’s performance metrics, including data transfer rates, error rates, and power consumption. Keep the module’s firmware up – to – date to benefit from the latest features, bug fixes, and security enhancements provided by ABB. Periodically clean the module to remove dust and debris, as accumulation can impact its heat dissipation and overall reliability.
