Description

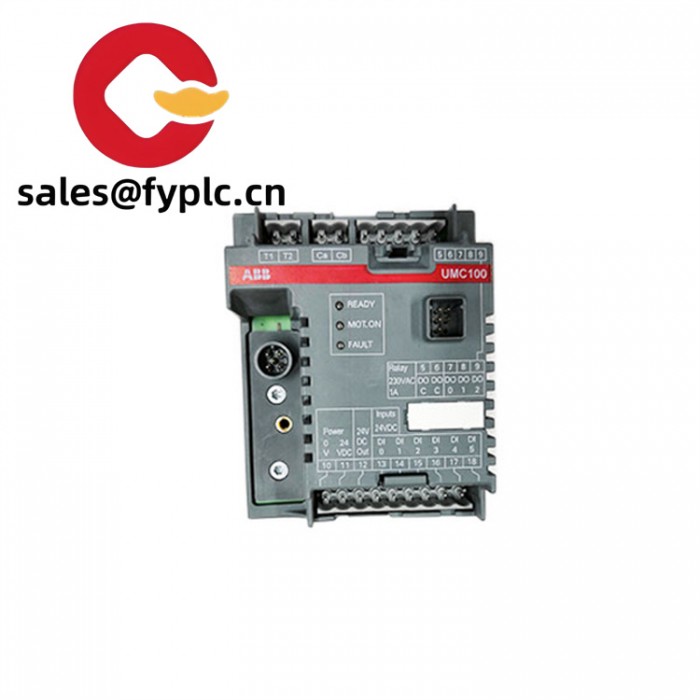

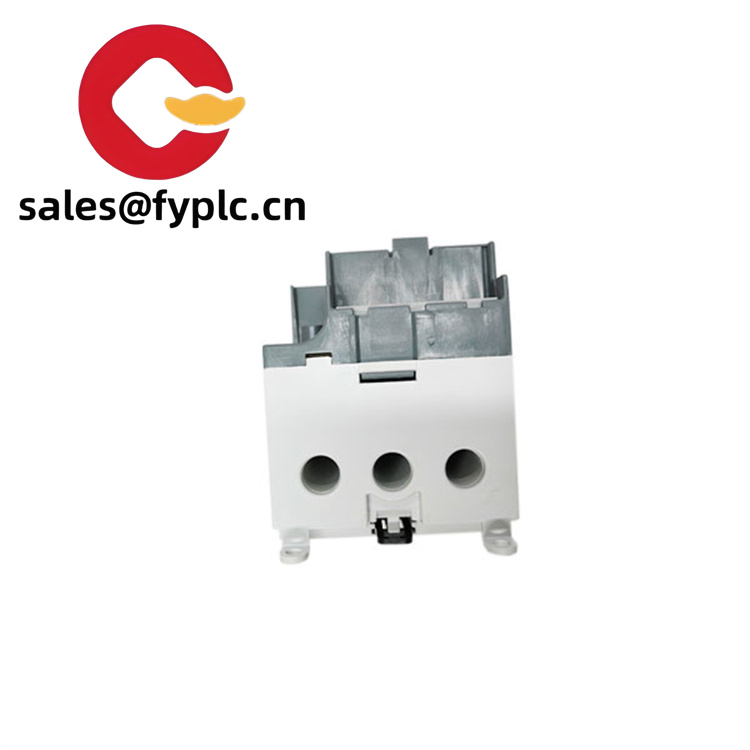

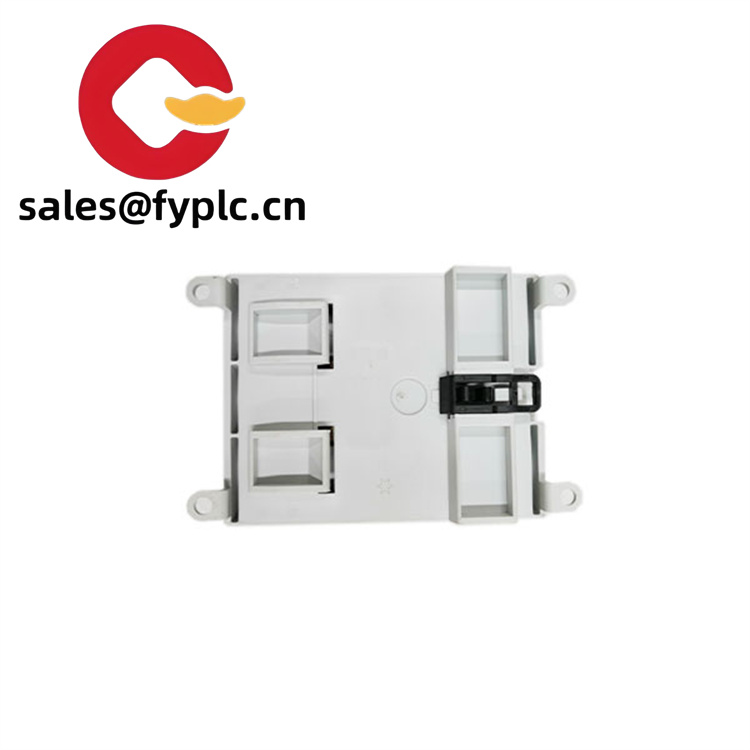

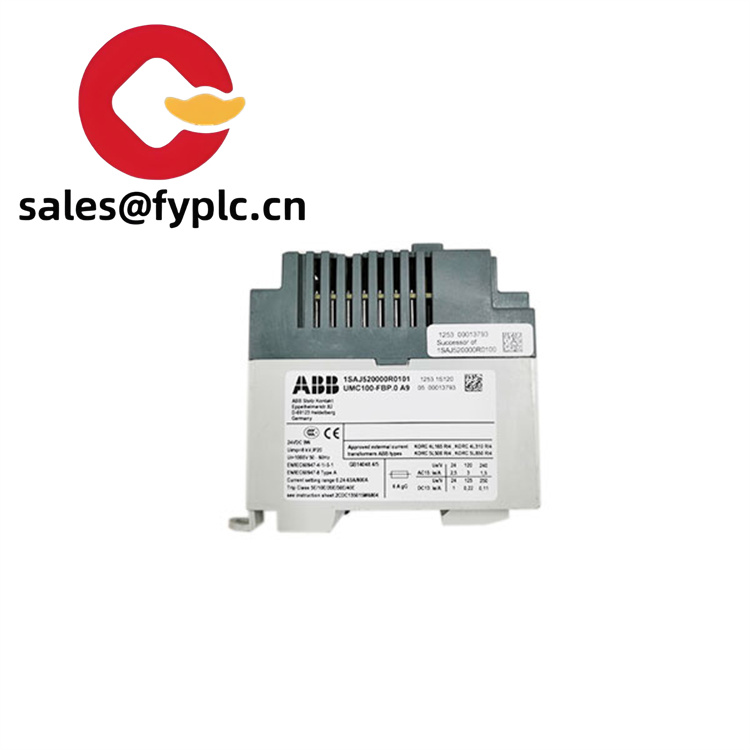

ABB UMC100 Universal Motor Controller

UMC100

The ABB UMC100 is specifically designed for applications that involve precise control of motors and robotic systems. It serves as the nerve center for motion – based processes, ensuring that movements are executed with utmost accuracy and in a coordinated manner. Whether in a large – scale manufacturing plant where high – speed and precise robotic arms are assembling intricate products, or in a smaller – scale industrial facility with specialized motor – driven machinery, this motion controller is essential for achieving seamless and efficient operation. In the context of industrial control systems, it interfaces with motors, sensors, and other control components.

Label	Specification
Model Number	UMC100
Brand	ABB
Type	Intelligent Motor Controller
Input Voltage	24 V DC (Redundant Input) or 110 – 240 V AC/DC (for some versions)
Motor Rated Current	0.24 – 63 A (without accessories)
Motor Voltage	Up to 1000 V AC
Frequency	45 – 65 Hz
Axis Control (not applicable in the traditional sense as it’s for motor control)	N/A
Communication Interfaces	Modbus RTU, DeviceNet, PROFIBUS DP, EtherNet/IP (with optional expansion), Modbus TCP (with specific adapters)
Positioning Accuracy (not directly related to its motor – control function)	N/A
Operating Temperature	– 25 °C to + 60 °C
Dimensions (WxDxH)	Vary by configuration, typically around 127.5 x 185 x 59 mm
Weight	Approximately 0.3 kg (module body)
Certifications	EN/IEC 60947 – 4 – 1/5 – 1, UL 508, CAN/CSA C22.2, RoHS

UMC100

The ABB UMC100 exhibits several performance attributes that set it apart from its counterparts. Its response speed is remarkably fast, allowing for immediate reaction to changes in motor conditions. In high – speed manufacturing processes, such as high – volume assembly lines, this quick response time ensures that motors can start, stop, or adjust their speed rapidly, minimizing production delays.

UMC100

ABB stands firmly behind the quality of the UMC100. The device comes with a comprehensive warranty that assures buyers of its long – term reliability.
