Description

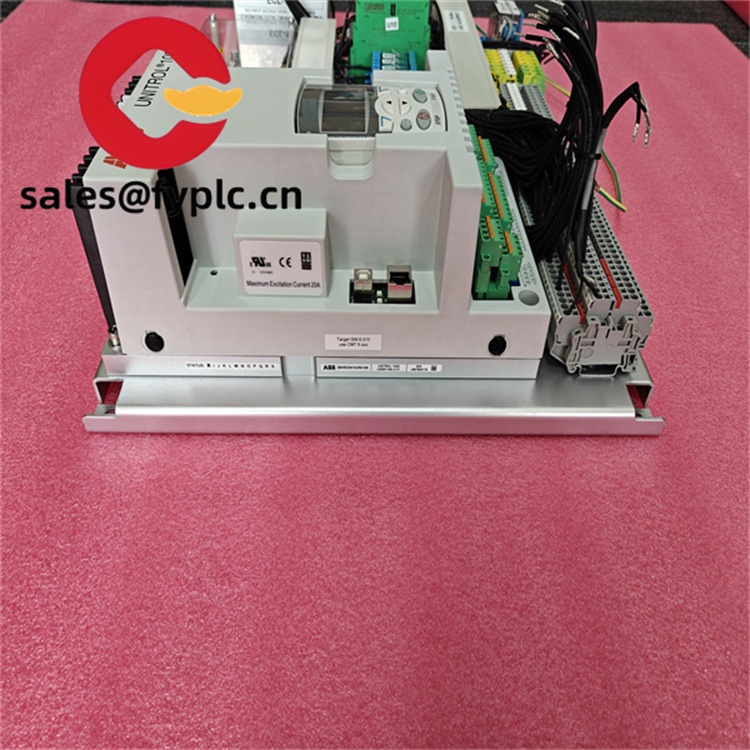

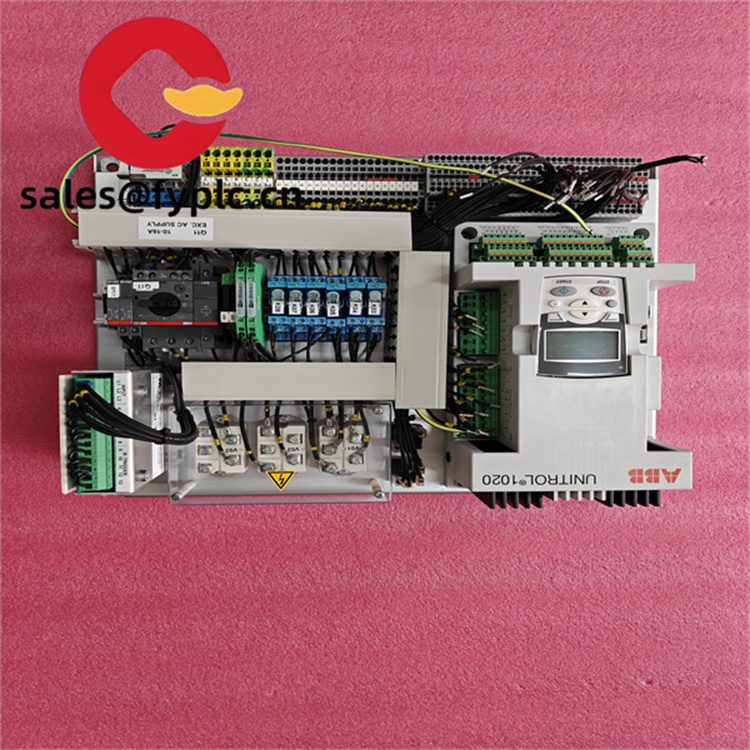

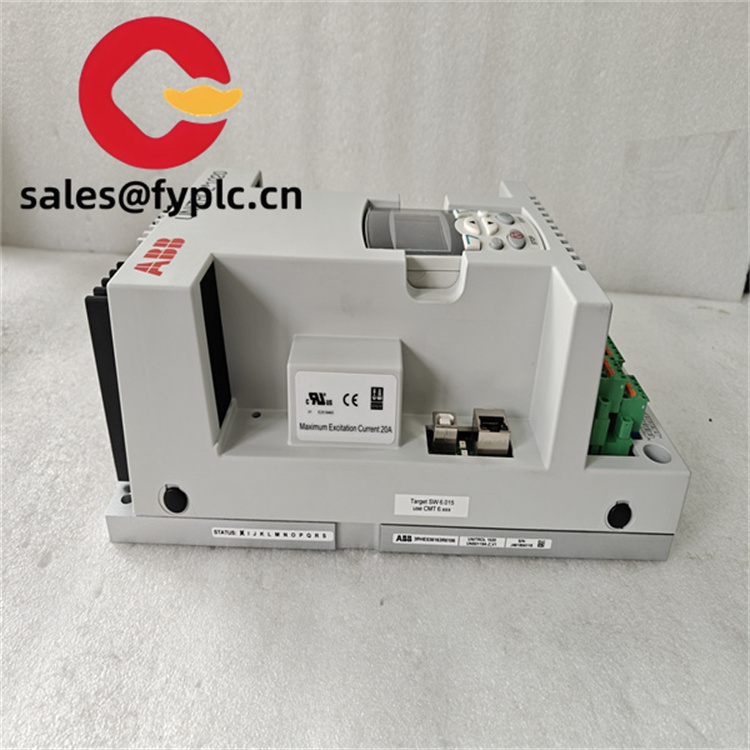

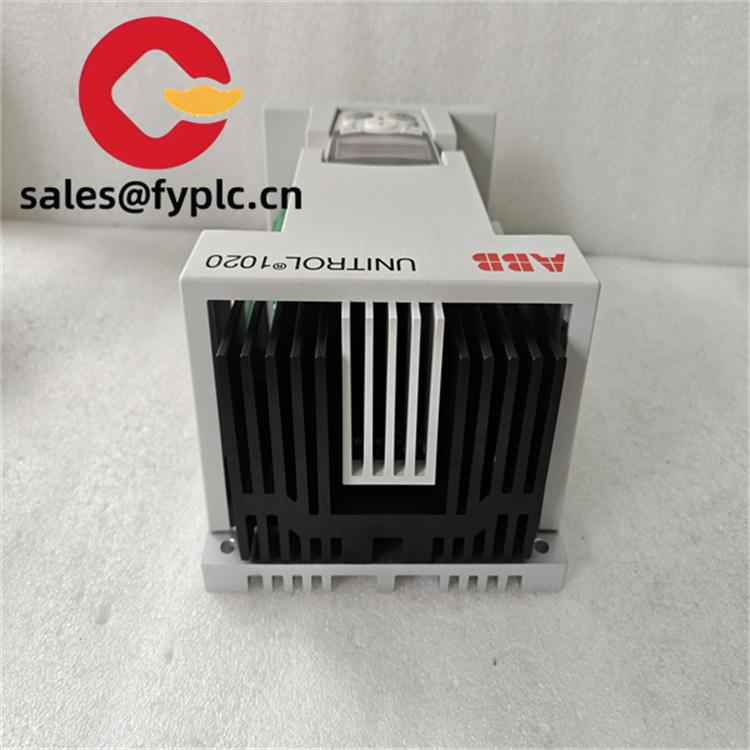

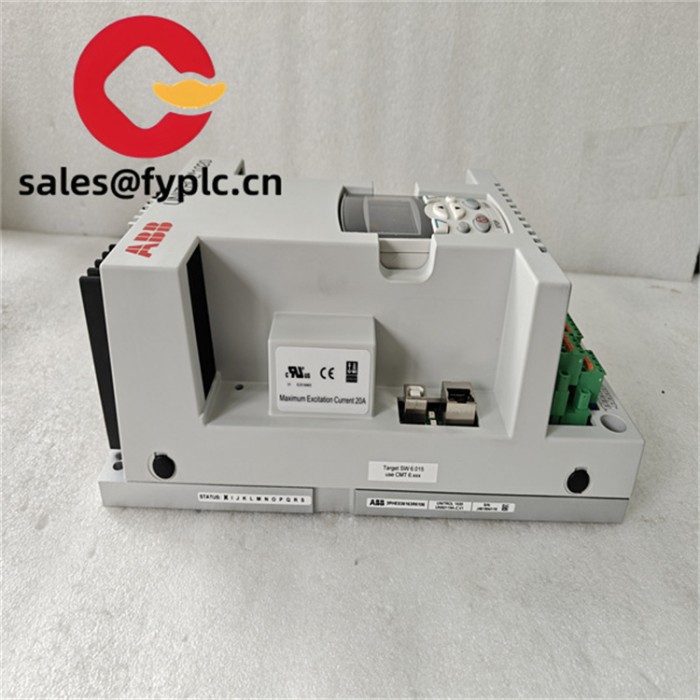

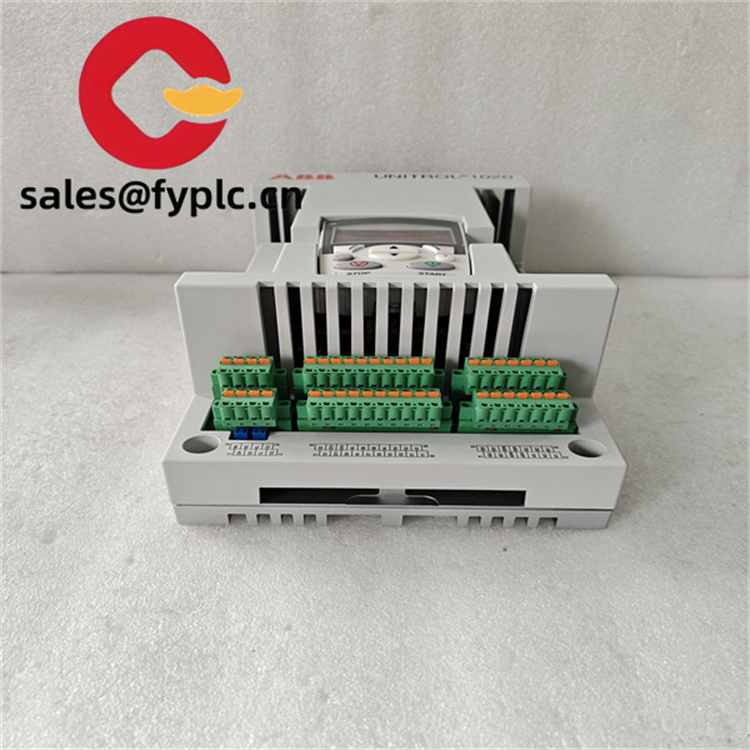

ABB UNITOLO1020 3BHE036163R61 excitation controller non managed Ethernet switch
In the dynamic and critical field of industrial power control, ABB’s UNITROL 1020 3BHE036163R61 shines brightly as a paragon of innovation and reliability. Engineered with precision and expertise, it serves as an ideal solution for small to medium – sized synchronous generators and a wide array of industrial machinery. As a compact yet powerful indirect excitation system, it plays a pivotal role in ensuring stable and efficient power management within complex industrial landscapes.
|
Label
|
Specification
|
|
Model Number
|
UNITROL 1020 3BHE036163R61
|
|
Brand
|
ABB
|
|
Type
|
Indirect Excitation System and Voltage Regulator
|
|
Input Voltage
|
Accommodates a wide – ranging input, suitable for both AC and DC sources. Specific values are detailed in the product manual to ensure seamless integration with diverse power supply setups.
|
|
Operating Temp
|
– 25°C – 70°C. This wide temperature tolerance allows it to function optimally in various industrial environments, from the extreme cold of some manufacturing facilities to the sweltering heat of power plants.
|
|
Communication Method
|
Equipped with Ethernet and USB interfaces, along with multiple integrated communication options. This enables seamless data transfer and real – time monitoring, facilitating efficient control and management of industrial processes.
|
|
Mounting
|
Designed for hassle – free installation, it can be easily adapted to standard industrial mounting frameworks, reducing the time and effort required for setup.
|
|
Weight
|
0.18 kg, making it a lightweight yet highly functional component that can be easily integrated into existing systems without adding excessive weight or complexity.
|
|
Certifications
|
Fully compliant with DNV and UL standards, ensuring the highest levels of quality, safety, and reliability in its operation.
|
|
Dimensions
|
Height: 100 mm. Other dimensions are comprehensively provided in the product documentation to assist with system design and integration.
|
|
IP Rating
|
Suitable for general industrial environments, with IP rating details clearly specified in the product specifications to indicate its protection level against dust, moisture, and other external factors.
|
|
Protocols Supported
|
Supports a diverse range of protocols, enabling seamless compatibility with various industrial systems and devices, enhancing its versatility in different applications.
|
The ABB UNITROL 1020 3BHE036163R61 is a powerhouse of functionality and design ingenuity. Leveraging advanced microprocessor technology and IGBT semiconductor devices, it can deliver a continuous operating current output of up to 10 ADC. This robust power output capability allows it to effectively meet the power demands of a wide spectrum of industrial applications, whether it’s powering small – scale manufacturing equipment or contributing to the operation of medium – sized power generation units.
One of its most remarkable features is the dual – channel support. This not only enables advanced load sharing between machines operating in parallel but also significantly enhances the stability and efficiency of power distribution within industrial plants. For instance, in a factory with multiple generators running in parallel to meet the high – power demands of production lines, the UNITROL 1020 3BHE036163R61 can precisely allocate the load among these generators, ensuring that each operates at an optimal level, minimizing energy wastage, and reducing the risk of equipment overloading.
Resilience is another key strength of the UNITROL 1020 3BHE036163R61. Engineered to withstand the harshest of industrial conditions, it can endure electrical interference, extreme temperature variations, and mechanical vibrations without a hitch. This reliability is further enhanced by features such as rotating diode monitoring and automatic synchronizing. The rotating diode monitoring function constantly keeps tabs on the health of the diodes, allowing for early detection of any potential issues and preventing unexpected system failures. Automatic synchronizing, on the other hand, ensures that the generator operates in harmony with the power grid or other connected generators, maintaining a stable power supply.
The integration of Ethernet and USB connections, along with data and event recording capabilities, is a testament to ABB’s commitment to modernizing industrial control solutions. The Ethernet connection enables high – speed data transfer, allowing for real – time monitoring and control of the system from remote locations. The USB connection provides an additional option for local data transfer and configuration. The data and event recording feature is invaluable for operators as it allows them to review historical data, analyze system performance trends, and identify any patterns or anomalies that could impact system operation. This data – driven approach to maintenance and optimization helps in proactively addressing issues, reducing downtime, and extending the lifespan of the equipment.
The ABB UNITROL 1020 3BHE036163R61 finds extensive applications across a multitude of industries. In power generation plants, regardless of whether they are based on diesel or gas engines, gas or steam turbines, or hydro turbines, it plays a crucial role in regulating the voltage and ensuring a stable power output. In a diesel – powered backup generator system for an industrial facility, the UNITROL 1020 3BHE036163R61 acts as a vigilant voltage regulator. It precisely controls the excitation of the generator, constantly adjusting the voltage to maintain a consistent supply even during sudden load fluctuations. This is essential for protecting sensitive industrial equipment from voltage spikes or drops that could potentially cause damage or disrupt production.
In the marine industry, it is an indispensable component for both electrical propulsion and auxiliary power supply systems. Ships rely on a stable and reliable power source for their safe and efficient operation, and the UNITROL 1020 3BHE036163R61 ensures just that. It can handle the unique challenges of marine environments, such as high humidity, salt – laden air, and constant vibrations, while maintaining optimal performance. Whether it’s powering the ship’s engines, running onboard communication systems, or operating essential equipment like pumps and ventilation systems, the UNITROL 1020 3BHE036163R61 provides the necessary power control and stability.
