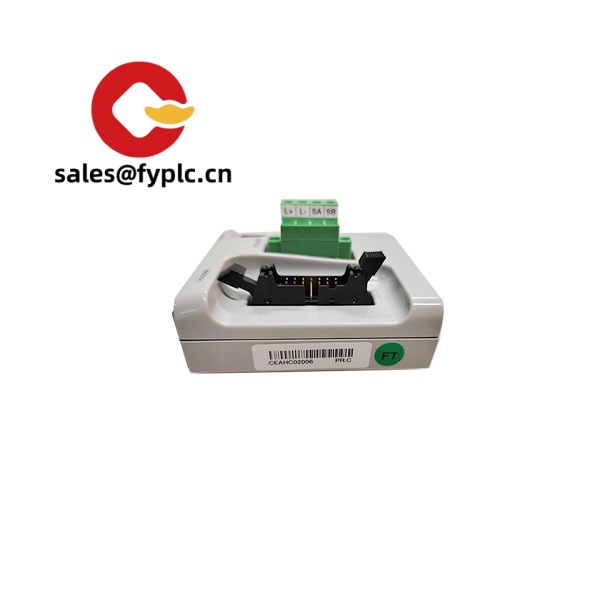

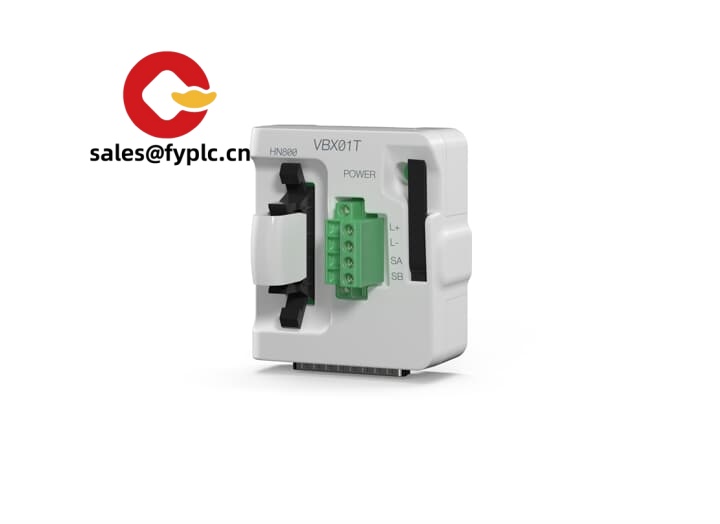

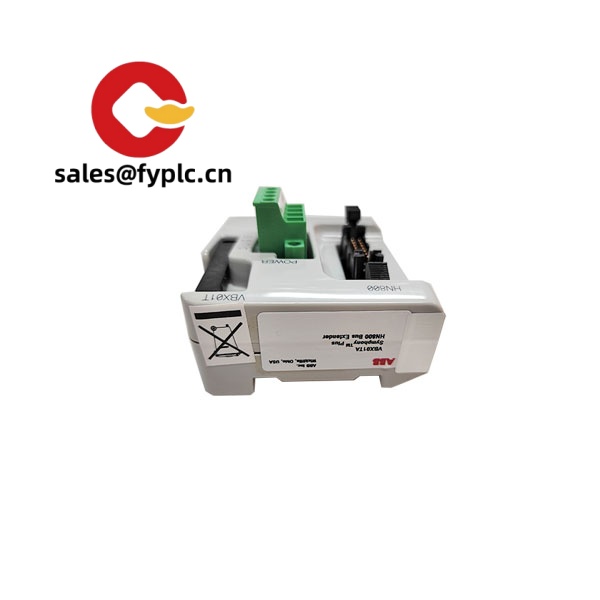

ABB VBX01TA – Terminal Adapter for Clean, Reliable Field Wiring to ABB Control Systems

The ABB VBX01TA appears to be a terminal adapter designed to mate with the ABB VBX01 interface, giving you a tidy, serviceable hand-off between field wiring and your ABB control hardware. From my experience, this kind of adapter streamlines panel builds, reduces wiring errors, and makes replacements a 5–10 minute job instead of an afternoon. You might notice that it’s a passive component—no separate power or configuration—so it typically drops right into a DIN-rail layout and just works.

Order Placement Process & Guarantees

• Warranty: 365 days
• Lead time: 1 week if in stock; no more than one month at the latest
• Payment: 50% advance payment; full payment before delivery
• Express options: FedEx, UPS, DHL

Key Features

• Purpose-built for VBX01 interface – Typically used as the field-wiring termination mate for ABB VBX01, keeping the I/O hand-off clean and repeatable.
• Passive, no external power – No setup required; reduces points of failure and simplifies spares strategy.
• DIN-rail friendly – Standard 35 mm rail fit makes it easy to drop into existing cabinets or retrofit projects.
• Serviceable connectors – Supports typical discrete and analog signal terminations; helps with fast swaps and clear labeling.
• Robust panel integration – In many cases, shield routing and strain relief are easier to manage compared to direct-to-module wiring.
• Reduced commissioning time – Pre-terminated harnessing between VBX01 and VBX01TA often shortens FAT/SAT by cutting rewiring and rework.
• Field-proven reliability – A maintenance lead in a beverage plant told us they swapped a VBX01TA in under 10 minutes during a line stop—no reprogramming, no surprises.

Technical Specifications

Related or Supporting Products

• ABB VBX01 – The typical interface module this terminal adapter mates with. If you’re replacing the adapter only, confirm pinout and harness type.
• 35 mm DIN Rail (EN 60715) and End Stops – For secure mounting and vibration resistance in industrial cabinets.
• Shielded Signal Cable Sets – Recommended for analog channels to maintain noise immunity from field devices back to the VBX01TA.
• Cable Markers / Label Strips – Helps keep I/O mapping crystal clear during maintenance and audits.

Installation & Maintenance

• Cabinet environment – Install on a rigid 35 mm DIN rail in a clean, ventilated enclosure. Maintain airflow and keep low-voltage I/O away from high-frequency drives where possible.
• Wiring practice – Use ferrules on stranded conductors; observe torque specs for terminal screws; route shields to the designated ground points to avoid loops.
• Spacing – Leave service space for connector access and labeling. From my experience, 20–30 mm on the top/bottom edges helps a lot during commissioning.
• ESD & safety – De-energize circuits before handling. Use ESD protection when touching the mating interface and any PCB areas.
• Routine checks – Quarterly visual inspection, tighten terminals if required, and confirm shields/grounds are intact. No firmware involved since it’s a passive adapter.
• Replacement tip – Label each conductor before removal; swap the adapter; re-seat connectors firmly. A quick point-to-point continuity check saves headaches later.

Quality & Certifications

• Conformity: CE and RoHS compliance is typical for ABB terminal accessories
• Safety marks: UL/cUL recognition in many cases (verify per shipment/label)
• Manufacturer quality system: ISO 9001 production standards commonly applied
• Warranty: 365-day warranty provided with supply; extended coverage available on request

If you want us to double-check fit against your installed system, send a photo of your existing module bay or the full part code from the side label. That small detail typically speeds up fulfillment and avoids a second site visit.
