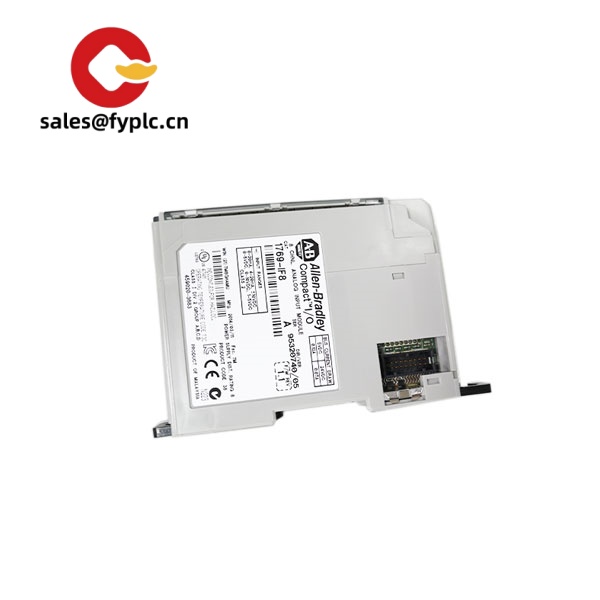

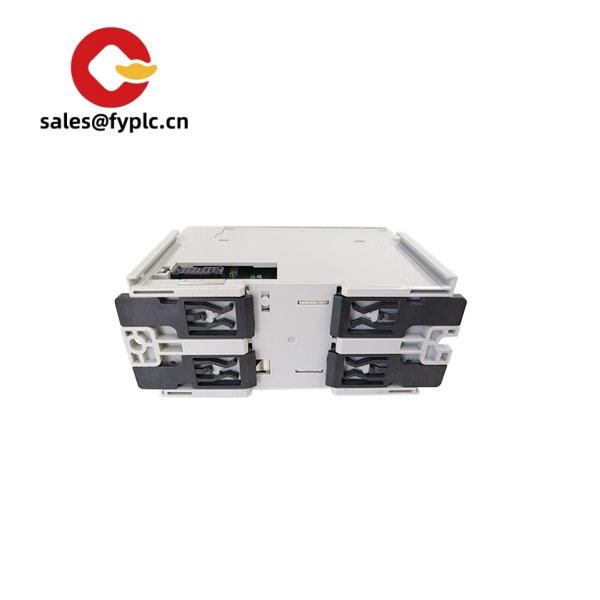

Allen‑Bradley 1769-IF8 – Compact I/O 8‑Channel Analog Input Module for CompactLogix / MicroLogix 1500

The Allen‑Bradley 1769‑IF8 is a versatile 8‑channel analog input module designed for 1769 Compact I/O systems. It integrates neatly with CompactLogix controllers and, in many cases, MicroLogix 1500 bases, giving you flexible voltage or current signal acquisition from field devices like pressure transducers, flow meters, temperature transmitters, and position sensors. One thing I appreciate is the per‑channel configuration—teams typically mix 4–20 mA loops and ±10 V signals on the same module without juggling extra hardware.

Company’s Order Placement Process and Guarantees

• Warranty: 365 days
• Lead time: 1 week when in stock; no more than one month at the latest
• Payment: 50% advance payment; full payment before delivery
• Express delivery: FedEx, UPS, DHL

Key Features

• 8 analog inputs – Typically configurable per channel for voltage (±10 V, 0–10 V, 0–5 V, 1–5 V) or current (0–20 mA, 4–20 mA).
• Compact I/O form factor – Snaps on the 1769 backplane next to your controller; saves panel space and wiring time.
• High‑resolution conversion – 16‑bit class resolution, which seems to be the sweet spot for most machine and process skids.
• Noise rejection – Channel filtering that, in most cases, helps attenuate 50/60 Hz interference for cleaner readings.
• Per‑channel scaling – Set ranges and data format in the controller for straightforward engineering‑unit scaling.
• Removable terminal block – Makes panel work less painful; easier field wiring and maintenance.
• Seamless integration – Works with CompactLogix via the 1769 bus; configuration through Studio 5000 / RSLogix 5000 families.

Technical Specifications

Application Fields

From my experience, the 1769‑IF8 fits best in compact machines and distributed I/O panels where you need mixed analog sensing without a bulky rack:

• OEM machinery: packaging, converting, printing—reading tension, speed, and registration sensors
• Process skids: dosing, CIP, filtration—4–20 mA transmitters for pressure, temperature, flow
• Utilities: water/wastewater, HVAC loops—differential pressure and level transmitters
• Material handling: weigh modules, position feedback, analog drives’ monitor outputs
• Food & beverage / life sciences: validated systems where stable analog acquisition matters

Advantages & Value

• Proven reliability – In many cases these modules run for years with minimal drift when wired/shielded correctly.
• Native compatibility – Seamless with CompactLogix; no protocol gateways, fewer failure points.
• Panel efficiency – Dense 8‑channel footprint reduces enclosure width and wiring duct runs.
• Lifecycle confidence – Strong market availability and documented migration paths in the Rockwell ecosystem.
• Reduced commissioning time – Studio 5000 add‑on profiles, straightforward scaling; techs get trending quickly.

Installation & Maintenance

• Panel environment – Mount in a ventilated IP‑rated cabinet; allow clearance for airflow. Keep analog wiring away from VFD/motor leads.
• Grounding & shielding – Use shielded twisted pair for low‑level signals; ground the shield at one end (usually controller side) to reduce loops.
• Wiring – Separate analog from high‑voltage and inductive loads. For 4–20 mA loops, ensure correct loop power and reference. Verify common/return terminals.
• Filtering & scaling – Enable 50/60 Hz rejection where needed; set engineering units per channel to simplify HMI display.
• Routine checks – Periodically validate zero/span with a calibrator; inspect terminal tightness and clean dust to prevent thermal drift.
• Firmware/config – Configure through the controller project. Back up channel configuration and scaling with version control.

Quality & Certifications

• CE, UL, cUL, RoHS compliant (typical for 1769 Compact I/O)
• Manufactured under ISO 9001 quality systems
• Our warranty coverage: 365 days
