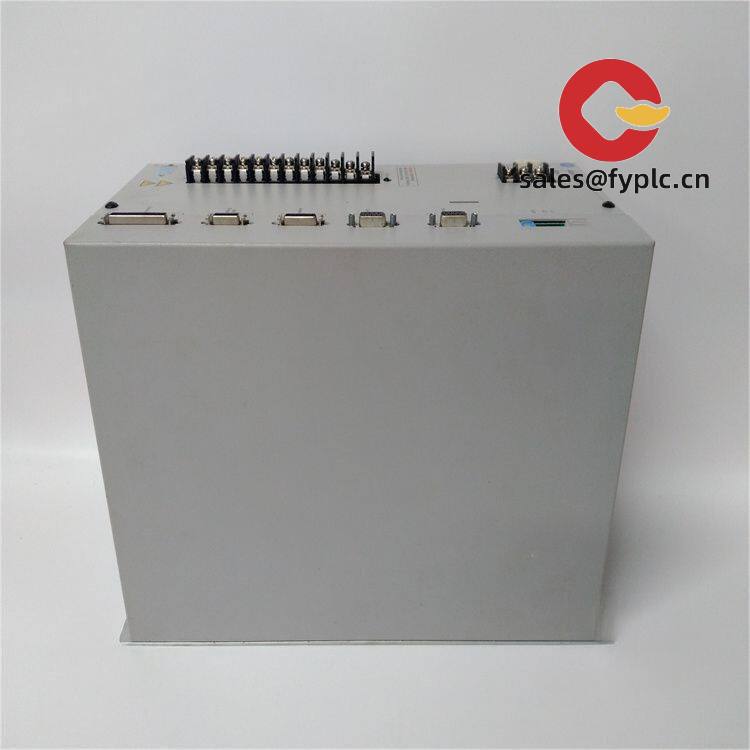

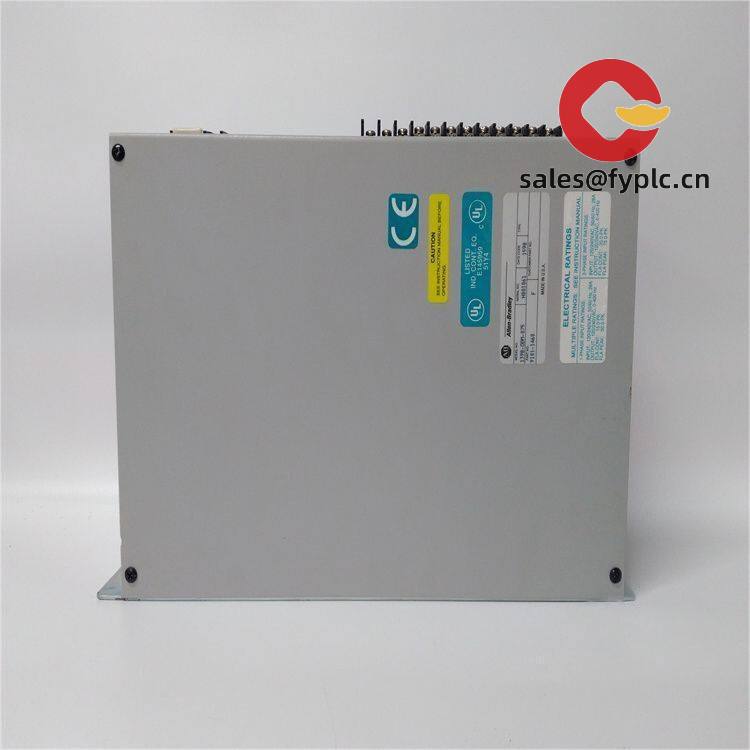

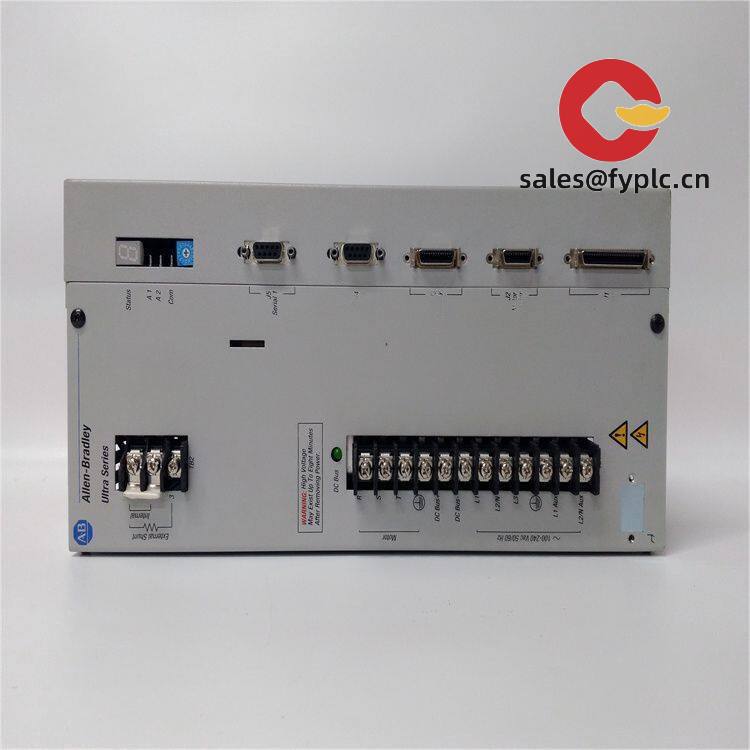

Allen‑Bradley 1398‑DDM‑075 – Compact Digital Servo Drive for Precise Motion Control

The Allen‑Bradley Bulletin 1398‑DDM‑075 (Ultra 100 series) is a dependable digital servo drive used widely in packaging lines, indexing stations, web handling, and light-duty machine tools. It’s designed for smooth, accurate control of rotary servo motors in position, velocity, or torque mode. From my experience, this model hits a sweet spot: compact enough to fit crowded panels, yet strong enough to run mid‑range axes without drama.

You might notice that integration tends to go quickly—commissioning via RS‑232 software tools is straightforward, and the drive plays nicely with standard ±10 V command sources and common AB feedback options. A maintenance lead at a food-packaging OEM told me they swapped a failed legacy unit with a 1398‑DDM‑075 in under an hour and were back in production before the shift change.

Company’s Order Placement Process and Guarantees

• Warranty: 365 days coverage for quality-related issues.
• Lead time: In-stock items typically ship within 1 week; no more than one month at the latest.
• Payment: 50% advance payment; full payment prior to delivery.
• Express options: FedEx, UPS, DHL available for global delivery.

Key Features

• Mid‑range servo capacity – Suited for medium torque applications; typically stable on 200–240 VAC supply with 7.5 Arms class output.
• Flexible control modes – Position, velocity, and torque mode support to match indexing, tension, or speed‑hold jobs.
• Standard command interfaces – Accepts ±10 V analog commands with discrete I/O for enable, inhibit, limits, and homing.
• Motor feedback compatibility – Works with Allen‑Bradley servo motors using common feedback types (resolver or encoder, model dependent).
• Simple setup and diagnostics – RS‑232 configuration and clear status/fault indication reduce commissioning time.
• Panel‑mount, booksize enclosure – Saves cabinet space; typically no special cooling beyond good ventilation and spacing.
• Allen‑Bradley ecosystem – Pairs well with AB controllers and 1326AB servo motors; reduces tuning headaches in many cases.

Technical Specifications

Application Fields

• Packaging and labeling machines – consistent motion profiles for pick‑and‑place, seal bars, and feeders.
• Material handling – indexing turntables and conveyor metering where tight velocity control is needed.
• Printing & converting – web tension and registration tasks with analog command control.
• Light machine tools & fixtures – precise axis control on jigs, fixtures, or small spindles.
• Test stands – torque or speed mode for component characterization.

Advantages & Value

• Reliability – Proven Ultra 100 hardware that, in many cases, runs for years with minimal intervention.
• Compatibility – Works with Allen‑Bradley 1326AB servo motors and standard ±10 V controllers; reduces integration risk.
• Cost control – Keeps legacy assets running without a full platform migration; good spare strategy for brownfield sites.
• Supportable – Simple wiring and RS‑232 setup tools mean faster service recovery and less specialized training.

Installation & Maintenance

• Cabinet standards – Mount vertically on a grounded metal backplate inside an IP‑rated enclosure; allow top/bottom clearance for airflow.
• Power & wiring – Use 200–240 VAC single‑phase supply on a dedicated circuit with appropriate fusing/breakers; segregate motor power and signal cables to reduce noise.
• Grounding – Bond the drive chassis to protective earth; use shielded feedback cables with drain wires terminated at the drive end.
• Safety – Provide an external emergency stop; verify safe torque‑off/enable wiring and confirm limits/home sensors before tuning.
• Routine checks – Inspect fan/vents, tighten terminals, clean dust filters quarterly; review fault logs after trips to spot trends.
• Tuning & firmware – Perform auto‑tune with the connected motor when replacing a unit; keep configuration backups and note firmware levels for consistency.

Quality & Certifications

• Typically CE and UL/cUL listed for industrial control equipment.
• RoHS status can vary by manufacturing vintage; documentation available upon request.
• Manufacturer’s warranty support policies apply in addition to our 365‑day coverage.

Supporting Components (Common Pairings)

• Allen‑Bradley 1326AB series servo motors (resolver feedback variants are common with Ultra 100 drives).
• Motor power and feedback cables matched to the motor/feedback type; shielded, low‑capacitance designs recommended.
• Panel accessories: line reactors or RFI filters (as required by site EMC practice), properly sized fusing/breakers, and braking resistor if specified by the application.

Notes: Specifications above reflect the typical capability of the 1398‑DDM‑075 within the Ultra 100 family. For a final match to your motor and supply, share the motor model and available mains—this helps confirm current ratings and feedback type before shipping.
