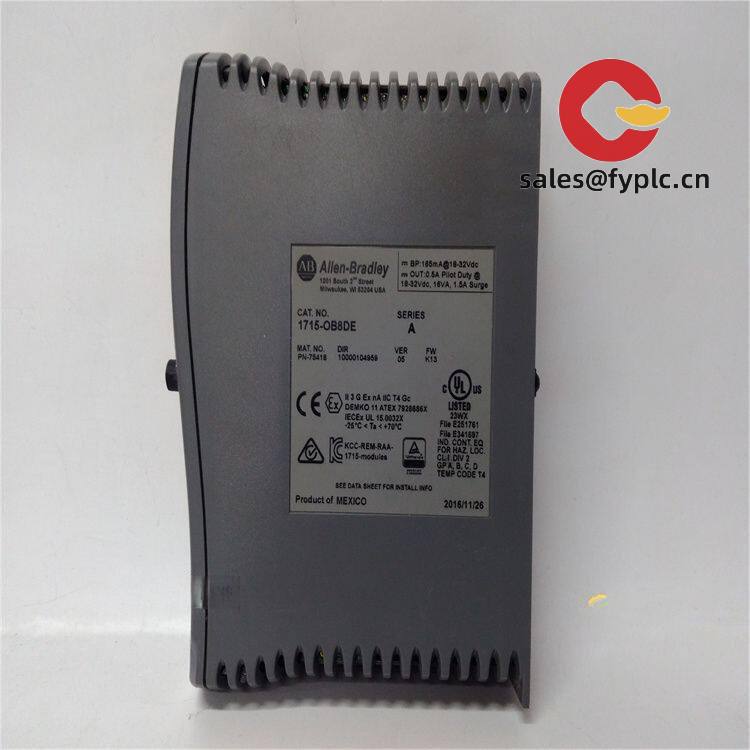

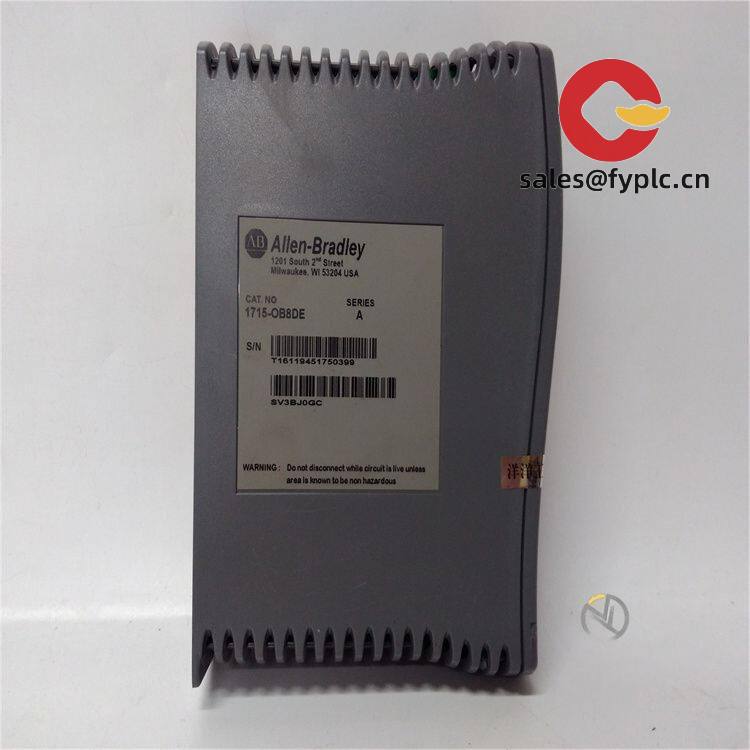

Allen‑Bradley 1715-OB8DE – 8‑Channel 24V DC Diagnostic Output Module for 1715 Redundant I/O
The Allen‑Bradley 1715-OB8DE is an 8‑point 24V DC digital output module designed for the 1715 Redundant I/O platform. It seems to be the right fit when you need high availability with built‑in channel diagnostics and electronic protection. From my experience, this type of module is commonly used to drive solenoid valves, interposing relays, beacons, and contactors in process and utility systems where uptime and fault visibility matter.
Company’s Order Placement Process and Guarantees
- Warranty: 365 days
- Lead time: 1 week if in stock; no more than one month at the latest
- Payment: 50% advance, balance before delivery
- Shipping: FedEx, UPS, DHL
Key Features
- 8-channel 24V DC sourcing outputs – Suitable for driving solenoids, relays, and lamps in most control cabinets.
- Diagnostics-enabled (DE) – Per‑channel status and fault detection typically help identify open load or short conditions faster.
- Electronic protection per channel – In many cases, electronic fusing isolates a faulted output without dropping the whole module.
- 1715 Redundant I/O platform – Works with 1715 backplane and 1715-AENTR adapter for EtherNet/IP connectivity and high availability.
- Field power segregation – Output power is supplied via the terminal base, helping separate I/O load power from system power.
- Channel indication – You might notice clear per‑channel indicators that make troubleshooting in the cabinet a lot quicker.
- Compact, cabinet-friendly – Single‑slot 1715 form factor keeps panel space in check, which is helpful on retrofit projects.
Technical Specifications
| Brand / Model | Allen‑Bradley 1715-OB8DE |
| HS Code | 8537.10 (Programmable controller equipment) |
| Power Requirements | 24 V DC nominal field supply for outputs; backplane power via 1715 terminal base and adapter |
| Dimensions & Weight | Compact single‑slot 1715 module; installs on a compatible 1715 terminal base assembly |
| Operating Temperature | Typically 0 to 55 °C (industrial control cabinet environment) |
| Signal I/O Types | 8 x digital outputs, 24 V DC sourcing, diagnostics and electronic protection per channel |
| Communication Interfaces | Backplane communications through 1715 system; EtherNet/IP via 1715-AENTR adapter to controller/SCADA |
| Installation Method | DIN‑rail using a compatible 1715 terminal base; field wiring terminated on the base, not the module |
Application Fields
The 1715-OB8DE is typically specified in high‑availability process and utility environments:
- Oil & Gas, chemicals, and refining – driving solenoids and ESD interposing relays with channel diagnostics to reduce guesswork during trips.
- Power generation & transmission – reliable outputs for breaker/drive permissives and valve actuators.
- Water & wastewater – pump control, blower interlocks, and alarm beacons with faster fault localization.
- Pharmaceutical and food & beverage – utility skids, CIP/SIP systems, and packaging auxiliaries where uptime is critical.
One thing I appreciate is how the diagnostic outputs shorten troubleshooting time. A maintenance lead at a combined‑cycle plant told us channel‑level indication shaved minutes off start‑up checks after a shutdown.
Advantages & Value
- Reliability: Redundant I/O platform design helps sustain operation if a single path is impaired.
- Compatibility: Integrates with EtherNet/IP architectures through 1715-AENTR; works smoothly in ControlLogix‑based systems.
- Lower downtime: Per‑channel electronic protection typically limits fault propagation and speeds recovery.
- Lifecycle support:</-strong> Mature Rockwell Automation ecosystem with long-term spares and documentation.
- Cost control: Diagnostics can reduce unnecessary field visits and component swaps—small savings that add up.
Installation & Maintenance
- Cabinet standards: Mount on DIN rail using a compatible 1715 terminal base. Keep adequate spacing for airflow and service access.
- Power & wiring: Use clean 24 V DC field power for outputs. Separate high‑voltage and low‑level signal wiring; follow proper grounding and shielding practices.
- Safety: De‑energize field loads before working on terminals. Verify output wiring polarity for sourcing outputs.
- Commissioning: Validate each channel with the diagnostic indicators. Log any reported open‑load or short conditions.
- Routine care: Periodically check terminal tightness, remove dust, and review controller firmware/EDS updates as per plant policy.
- Replacement: Modules can typically be replaced without disturbing field wiring since terminations remain on the base.
Quality & Certifications
- CE, UL/cUL (industrial control equipment) and RoHS compliance are commonly met by the 1715 series.
- Manufacturer’s warranty backed by our 365‑day coverage on supply.
Related/Supporting Components
- 1715-AENTR – Redundant EtherNet/IP adapter for the 1715 I/O system.
- 1715-IB16 – 16‑channel 24 V DC digital input module for complementary DI points.
- 1715 terminal base assembly – Required base for mounting and field terminations (spring or screw terminal variants are typically available).
