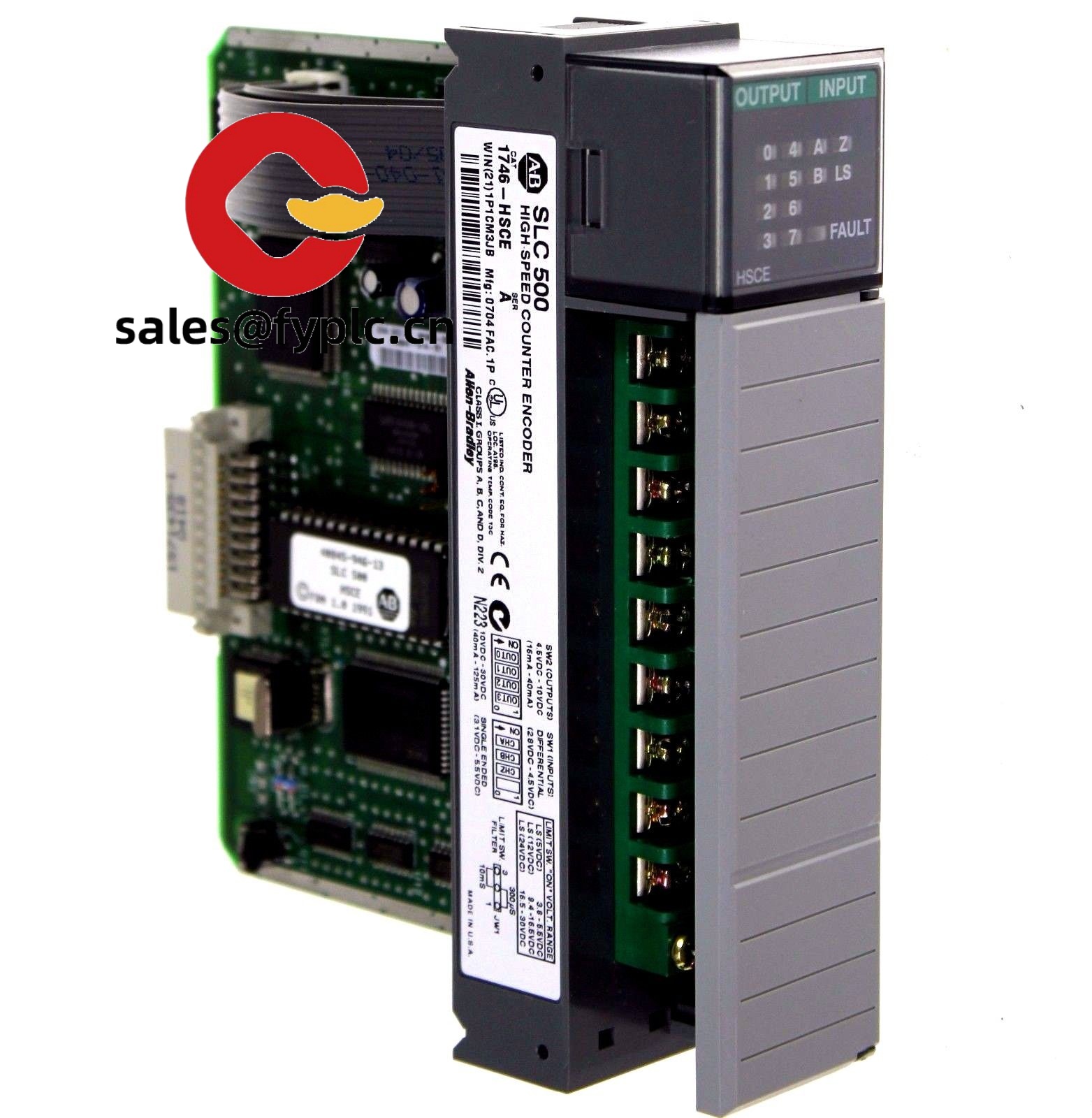

Allen-Bradley 1746-HSCE High-Speed Counter Module for Precision Automation
The Allen-Bradley 1746-HSCE is a high-speed counter module designed to integrate seamlessly with SLC 500 systems. From my experience, this module is ideal for applications requiring rapid pulse counting, such as conveyor systems, packaging machines, or rotary encoders. Its robust design and precise signal handling make it a reliable choice in demanding industrial environments.
Key Features
- High-Speed Counting: Capable of processing up to 80 kHz single-phase input, ensuring accurate tracking of fast-moving processes.
- Flexible Signal Inputs: Supports quadrature and single-phase encoder inputs, making it adaptable to various sensor types.
- Compact Design: Fits into a single slot of the SLC 500 chassis, saving valuable cabinet space without compromising functionality.
- Advanced Diagnostics: Built-in diagnostics tools help troubleshoot issues quickly, reducing downtime in critical operations.
- User-Friendly Configuration: Easily programmable through RSLogix 500 software, simplifying setup and integration.
Technical Specifications
| Specification | Details |
|---|---|
| Brand/Model | Allen-Bradley 1746-HSCE |
| HS Code | 85371099 |
| Power Requirements | 5V DC (Backplane Powered) |
| Dimensions & Weight | Approx. 1.5 lbs, Single Slot Width |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Signal Input/Output Types | Quadrature Encoder, Single-Phase Pulse |
| Communication Interfaces | SLC 500 Backplane |
| Installation Method | Plug-and-Play into SLC 500 Chassis |
Application Fields
This module shines in industries like manufacturing, where precision and speed are paramount. For instance, it’s commonly used in bottling plants to count bottles on a conveyor belt at high speeds. You might also find it in metal stamping machines, where it tracks strokes per minute. In most cases, customers appreciate its ability to handle complex tasks without overloading the main PLC processor.
Advantages & Value
One thing I appreciate about the 1746-HSCE is its balance between performance and cost-effectiveness. While some competitors offer similar modules, they often come with steep learning curves or higher price tags. This unit, however, integrates smoothly into existing systems, saving both time and money during implementation. Additionally, Rockwell Automation’s extensive technical support network ensures you’re never left stranded if issues arise.
Installation & Maintenance
Installing the 1746-HSCE typically involves sliding it into an available slot in your SLC 500 rack. Ensure proper ventilation around the cabinet to prevent overheating. Wiring should follow standard safety protocols, using shielded cables for signal inputs to minimize noise interference. Routine maintenance includes periodic firmware updates via RSLogix 500 and cleaning dust from the module’s surface to maintain optimal performance.
Quality & Certifications
The Allen-Bradley 1746-HSCE complies with industry standards, including CE, UL, and RoHS certifications. It comes with a one-year manufacturer warranty, which covers defects in materials and workmanship under normal use conditions. If you need extended coverage, additional service plans are available upon request.
Order Placement Process and Guarantees
We guarantee delivery within one week for in-stock items, with a maximum lead time of one month for special orders. Payment terms include a 50% advance payment, with the remaining balance due before shipment. Express shipping options like FedEx, UPS, and DHL ensure your order reaches you promptly. Our 365-day warranty provides peace of mind, knowing we stand behind every product we supply.
