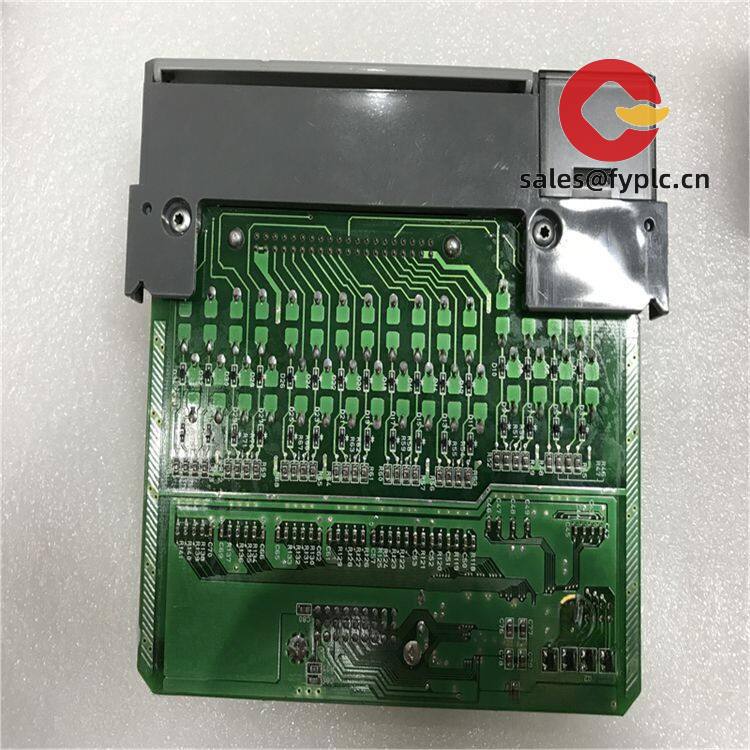

Allen‑Bradley 1746-IB32 – 32‑Point 24V DC Sinking Input Module for SLC 500 Control Panels

The Allen‑Bradley 1746-IB32 is a high‑density digital input card designed for the SLC 500 platform. It brings 32 channels of 24 VDC sinking inputs into a single slot, which, in many cases, is exactly what you want when panel space and I/O count are both tight. From my experience, it’s a straightforward, no-drama module: stable, predictable, and easy to commission with common PNP field sensors.

One thing I appreciate is how it keeps wiring organized on larger machines—packaging lines, conveyors, and test rigs typically benefit from the 32‑point density, reducing chassis slots and simplifying layouts. A maintenance lead told us this module “just keeps running,” with clear status LEDs that make troubleshooting quick when a sensor drops out.

Our Order Process and Guarantees

• Warranty: 365 days
• Lead time: 1 week if in stock; no more than one month at the latest
• Payment: 50% advance payment; full payment before delivery
• Express options: FedEx, UPS, DHL

Key Features

• 32 digital inputs (24 VDC, sinking): High channel density in a single 1746 slot; ideal for compact panels.
• PNP sensor friendly: Works with sourcing devices (PNP), which are widely used across factory automation.
• Channel status LEDs: Each point has an indicator, so you can spot wiring or sensor issues at a glance.
• Backplane integration with SLC 500: No external interface module needed; just slot it into a 1746 chassis.
• Industrial temperature rating: Typically 0…60°C operation, suitable for most control cabinets on the floor.
• Space and cost efficiency: 32 points per slot usually means fewer modules, less wiring, and lower panel costs.
• Grouped commons (typical): Inputs are commonly segmented in groups, helping organize power distribution and protection.

Technical Specifications

Application Fields

You’ll often see the 1746-IB32 in:

• Packaging and material handling: Reading PNP photoeyes, limit switches, and part‑present sensors on high‑density lines.
• Automotive and assembly: Fixture inputs, button panels, and safety interlock status (when used with proper safety architecture).
• Food & beverage: Conveyors and filling lines where simple, reliable 24 VDC signals are the norm.
• Water/Wastewater: Panel retrofits in SLC 500 sites, monitoring valve and pump status.
• Electronics test rigs: Compact cabinets that need lots of input points without burning extra slots.

Advantages & Value

• Reliability that plants trust: It appears to be very stable in 24/7 environments; fewer nuisance trips, clear diagnostics.
• Compatibility with SLC installed base: Ideal for expansions or replacements where you need a drop‑in match.
• Panel and cost savings: 32 points per slot reduces hardware count, wiring time, and spare inventory—typically real savings over multiple 16‑pt cards.
• Straightforward commissioning: Standard 24 VDC PNP wiring; maintenance techs can trace issues quickly with the front LEDs.
• Support & spares: Widely used module type, so sourcing replacements and technical guidance is simple.

Installation & Maintenance

• Cabinet environment: Keep within 0…60°C; allow ventilation in the panel and avoid mounting near heat sources.
• Chassis & slotting: Install in a 1746 chassis sized for your system (e.g., 1746-A4/A7/A10/A13). Ensure the chassis power supply is adequately sized.
• Wiring practices: Use 24 VDC PNP sensors. Observe grouped commons and fuse each group as needed. Keep sensor and power wiring separated from high‑noise conductors.
• Grounding and shielding: Bond shields at one end only; maintain a clean control ground to minimize false transitions.
• Routine checks: No calibration required. Periodically re‑torque terminal connections, inspect for debris, and clean dust with dry air.
• Diagnostics: Use channel LEDs and the PLC data table to pinpoint failed sensors or broken wires during downtime.
• Firmware: Digital I/O modules like this typically have no user‑updatable firmware, which simplifies upkeep.

Quality & Certifications

• Certifications (typical): CE, UL, cUL; RoHS compliance on many later series.
• Manufacturing quality: Built for industrial environments with proven SLC 500 ecosystem reliability.
• Warranty coverage: 365‑day warranty provided by us on supplied units.

Compatible System Components (for planning)

• Chassis: 1746-Ax series (choose slot count to match I/O needs)
• Power supplies: 1746-P1 / 1746-P2 (size per backplane load)
• Processors: SLC 5/03, 5/04, 5/05 depending on comms and memory needs
• Field sensors: 24 VDC PNP proximity switches, photoeyes, pushbuttons, limit switches

You might notice that many plants keep a couple of 1746-IB32s on the shelf. That’s usually because they’re easy to swap, and in most cases they resolve a downed input bank without rewiring. If you’d like, we can help confirm backplane loading and group your inputs to match your fuse/PSU plan before you place the order.
