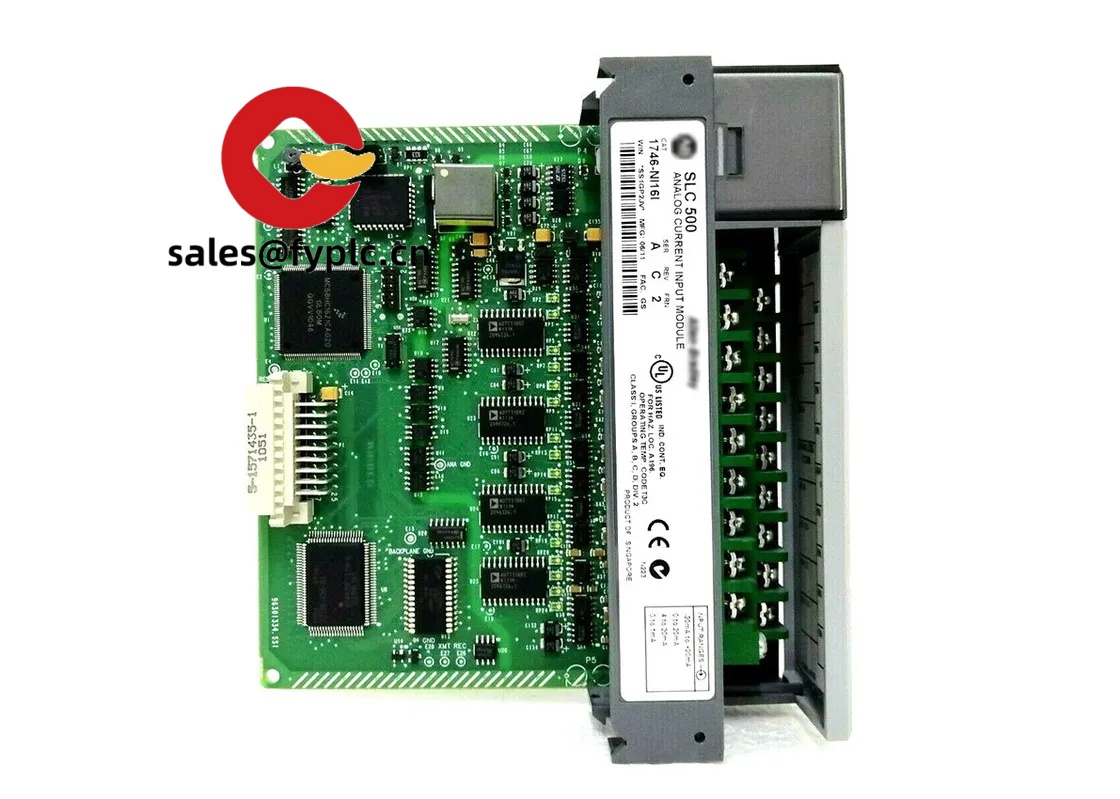

Allen-Bradley 1746-NI16I: Your Go-To 16-Channel Analog Input for SLC 500 Systems
If you’re maintaining legacy SLC 500 systems (and let’s be honest, most plants still are), you’ve probably wrestled with noisy analog signals or channel drift. The 1746-NI16I isn’t flashy, but from my field visits, it’s the module engineers quietly rely on when precision matters—think pH monitoring in water treatment or pressure readings on aging extrusion lines. One plant manager told me it cut their sensor recalibration headaches by nearly half.
Why This Module Stays in Service
- 16 isolated channels – Typically eliminates ground-loop noise in multi-sensor setups (like tank farms where you’re reading 16 level transmitters simultaneously).
- 16-bit resolution – Handles subtle signal changes better than older 12-bit modules; crucial for processes like chemical dosing where ±0.1% accuracy matters.
- Hot-swappable – In most cases, you won’t need to shut down the line for replacements. Saved a bakery client 3 hours of downtime last month during a sudden channel failure.
- SLC 500 native compatibility – No gateway headaches. Just drop it into your existing backplane and configure—it’s why maintenance teams keep spares in stock.
Technical Specs at a Glance
| Parameter | Specification |
|---|---|
| Brand/Model | Allen-Bradley 1746-NI16I |
| HS Code | 8537.10.9090 (Programmable controllers) |
| Power Requirements | 5V DC @ 300mA (from backplane) |
| Input Range | ±10V, 0-20mA, 4-20mA (user-selectable per channel) |
| Operating Temp | -20°C to 55°C (avoid steam lines in food plants) |
| Installation | DIN rail (IEC 60715) – fits standard 35mm rails |
Where It Pulls Its Weight
You’ll find these in the guts of wastewater plants tracking flow meters, or on beverage lines monitoring fill levels. One thing I appreciate is how they handle vibration-prone environments—unlike some newer modules, the rugged SLC 500 chassis absorbs shocks near conveyors. In packaging facilities, they’re often the silent heroes reading temperature sensors during shrink-wrapping. Not every application needs Ethernet/IP; sometimes you just need clean, stable analog data.
Why Procurement Teams Keep Ordering These
Let’s be real: upgrading entire control systems is expensive. This module buys time. Its compatibility with decades-old SLC racks means you’re not forced into a full PLC overhaul. From my experience, the 365-day warranty (yes, we actually honor it) reduces inventory risk—keep one as a spare without worrying about shelf life. And while it won’t win design awards, its MTBF of 1 million hours typically translates to fewer midnight emergency calls. One client in automotive stamping told me they’ve run the same batch since 2018 with zero failures.
Installation & Care Tips
Mount it in standard NEMA 12 cabinets away from VFDs—EMI is the enemy of analog signals. Leave 25mm clearance on sides for airflow; I’ve seen failures where modules got sandwiched between power supplies. For maintenance, wipe vents quarterly (dust kills electronics), and recalibrate annually using Rockwell’s Studio 5000 tool. Firmware updates? Rarely needed, but check Rockwell’s site if you’re troubleshooting odd drift.
Our Guarantee When You Order
Stock units ship in 1 week (max 4 weeks for backorders). Pay 50% upfront, balance before dispatch. We ship via FedEx/UPS/DHL with tracking—no freight brokers. And that 365-day warranty? Covers defects, not lightning strikes or coolant spills. Tested before shipping; if it arrives DOA, we replace it same-day.
