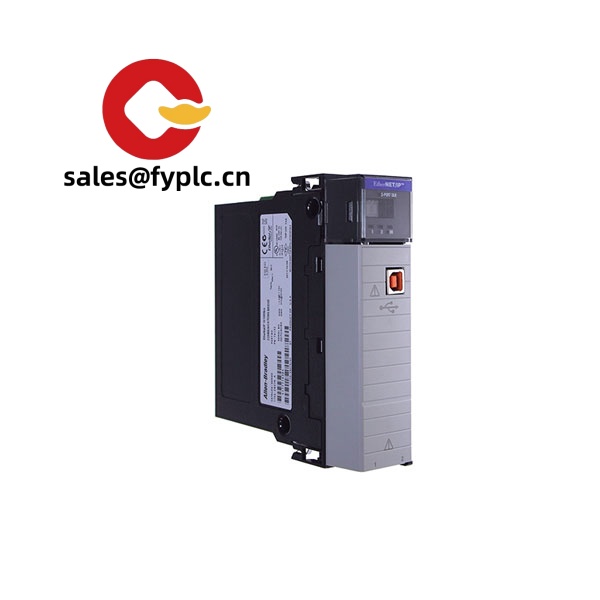

Allen-Bradley 1756-EN2TP: High-Performance Ethernet Module for Industrial Automation
If you’re looking to integrate advanced Ethernet connectivity into your ControlLogix system, the Allen-Bradley 1756-EN2TP seems to be a solid choice. This module is designed to support high-speed data transfer and reliable communication in demanding industrial environments. From my experience, it’s particularly well-suited for applications requiring real-time control and seamless integration with other devices on the network.
Key Features
- Dual Port Design: The dual Ethernet ports allow for daisy-chaining, reducing the need for additional switches and simplifying network topology.
- High-Speed Performance: With support for Gigabit Ethernet, this module ensures fast data exchange, which is critical for time-sensitive applications.
- CIP Security: It supports Common Industrial Protocol (CIP) security features, helping protect your network from unauthorized access.
- Firmware Flexibility: Easily update firmware to keep up with evolving standards and enhance functionality over time.
- Compact Form Factor: Its slim design fits seamlessly into existing ControlLogix chassis without taking up too much space.
Technical Specifications
| Specification | Details |
|---|---|
| Brand/Model | Allen-Bradley 1756-EN2TP |
| HS Code | 85389099 |
| Power Requirements | 24V DC Nominal |
| Dimensions & Weight | Approx. 108 x 35 x 160 mm; 0.5 kg |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Signal Input/Output Types | Ethernet/IP |
| Communication Interfaces | RJ45 Ethernet Ports (x2) |
| Installation Method | ControlLogix Chassis Mount |
Application Fields
The Allen-Bradley 1756-EN2TP typically finds its place in industries where precision and reliability are non-negotiable. For example, manufacturers using automated assembly lines benefit from its ability to handle large volumes of real-time data. Similarly, water treatment facilities rely on it for monitoring and controlling processes remotely. You might notice that it’s also popular in packaging systems, where synchronized motion control is essential.
Advantages & Value
What sets the 1756-EN2TP apart is its combination of performance and practicality. In most cases, users appreciate how it reduces infrastructure costs by eliminating the need for extra networking hardware. Compatibility with a wide range of devices makes integration straightforward, while robust security features provide peace of mind. Additionally, Rockwell Automation’s extensive technical support network ensures that help is readily available if issues arise.
Installation & Maintenance
Installing the 1756-EN2TP requires adherence to standard cabinet practices, including proper ventilation and cable management. Ensure the environment stays within the recommended temperature range to avoid overheating. Routine maintenance involves periodic firmware updates to maintain optimal performance and occasional cleaning to prevent dust accumulation. Calibration isn’t usually necessary unless specific application demands dictate otherwise.
Quality & Certifications
This product carries several key certifications, including CE, UL, and RoHS compliance, ensuring it meets global safety and environmental standards. The manufacturer offers a one-year warranty, covering defects in materials and workmanship under normal use conditions.
Our order placement process includes a 365-day warranty period, with delivery times ranging from one week for in-stock items to no more than a month for special orders. Payment terms require a 50% advance payment, with the balance due before shipment. We offer express delivery via FedEx, UPS, or DHL for faster service.
