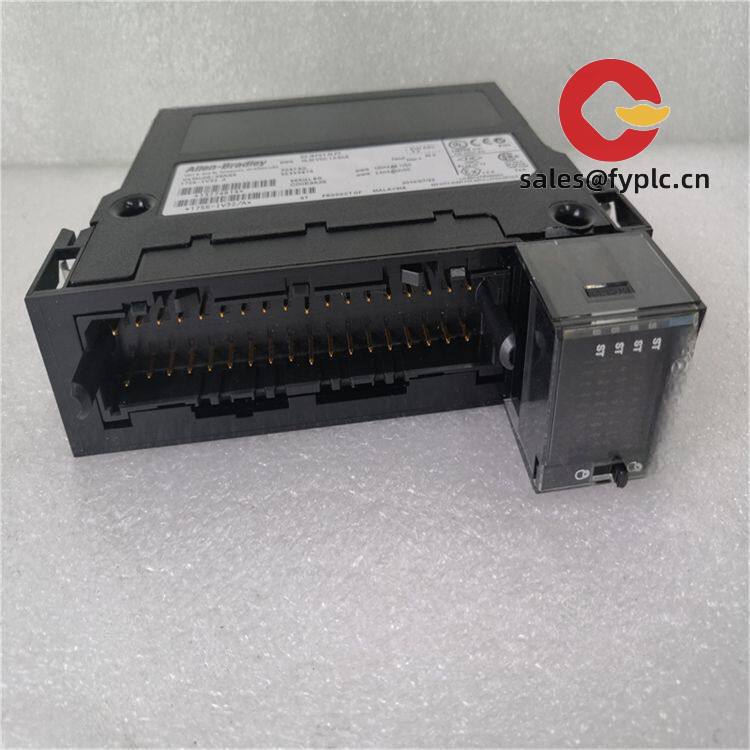

Allen‑Bradley 1756‑IV32 – 32‑channel 24V DC Digital Input Module for ControlLogix

The Allen‑Bradley 1756‑IV32 is a high‑density digital input module designed for ControlLogix systems. It brings 32 channels of 24V DC discrete inputs into a single slot, which typically helps free up chassis space and simplifies wiring in medium to large machines. From my experience, teams like it because it’s straightforward to commission in Studio 5000 and reliable in 24/7 environments where a missed input just isn’t an option.

Company’s Order Placement Process and Guarantees

• Warranty: 365 days
• Delivery: 1 week if in stock; no more than one month at the latest
• Payment: 50% advance payment; full payment before delivery
• Express options: FedEx, UPS, DHL

Key Features

• 32 digital inputs (24V DC nominal): High channel density in one slot, ideal when cabinet space is tight.
• ControlLogix backplane integration: Seamless with Logix controllers; configuration through Studio 5000.
• Configurable input filters: Typically used to tame contact bounce or electrical noise on field signals.
• Group wiring via RTB: Uses removable terminal blocks to speed installation and reduce downtime during swap‑outs.
• Diagnostics at a glance: Front LEDs per channel help with commissioning and quick troubleshooting.
• Industrial temperature range: Suitable for most control cabinets in factory settings.
• Proven reliability: In many cases, these modules run for years with minimal upkeep when installed correctly.

Technical Specifications

Application Fields

You might notice this module shows up wherever lots of 24V DC sensors or switches need to be read reliably:

• Automotive body and powertrain lines (proximity sensors, interlocks, e‑stops)
• Packaging and material handling (photoeyes, limit switches, jam detection)
• Food & beverage and consumer goods (conveyor I/O, bin level, door switches)
• Water/wastewater skids (valve position, float switches, pump permissives)
• Process skids and utilities (status contacts, panel interlocks, alarms)

Advantages & Value

• Space efficiency: 32 inputs per slot reduces chassis count and panel footprint.
• Lifecycle flexibility: Widely deployed in ControlLogix architectures; easy to source spares and scale.
• Compatibility: Plays nicely with standard 24V DC industrial sensors and common wiring practices.
• Lower total cost: Fewer modules and RTBs, less wiring time, and faster commissioning add up to savings.
• Supportability: Diagnostics and consistent Logix configuration make maintenance simpler across sites.

One thing I appreciate is how the removable terminal block design cuts changeover time. A maintenance supervisor at a beverage plant told us, “We swapped a 1756‑IV32 in under 10 minutes without re‑terminating anything—just moved the RTB and we were back up.”

Installation & Maintenance

• Cabinet & chassis: Install in a 1756 ControlLogix chassis with adequate ventilation; keep ambient within 0–60 °C.
• Wiring: Use the correct RTB (1756‑TBNH or 1756‑TBSH). Separate high‑voltage and inductive loads from low‑level signals. Verify sensor type (sourcing/sinking) matches your wiring plan.
• Power & grounding: Provide clean 24V DC field power and solid panel grounding to improve noise immunity.
• Input filtering: Set channel filters in Studio 5000 to match device characteristics and reduce nuisance triggers.
• Safety: De‑energize field power and the chassis before inserting or removing the module or RTB.
• Routine care: Periodically check terminal tightness, clean dust from vents, and review firmware compatibility when updating controllers.

Quality & Certifications

• CE, UL, cUL, RoHS compliant (typical for 1756 digital input modules)
• Manufacturer warranty as per OEM policy; sales warranty provided: 365 days

Recommended Accessories

• 1756‑TBNH – 36‑position screw‑clamp RTB (removable terminal block)
• 1756‑TBSH – 36‑position spring‑clamp RTB
• 1756‑Axx – ControlLogix chassis and 1756‑PA/‑PB series power supplies as required
