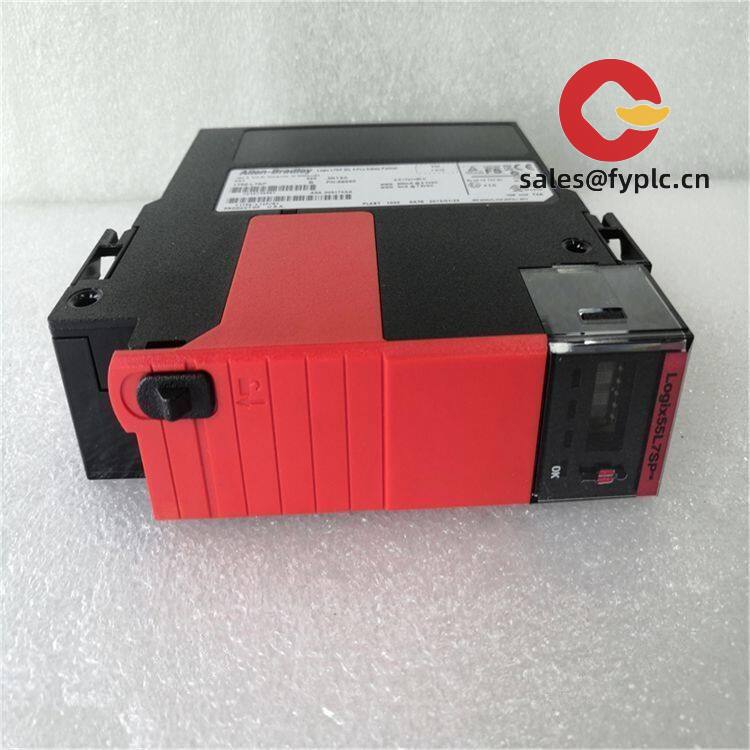

Allen‑Bradley 1756-L7SP GuardLogix Safety Partner – Add SIL3/PLe safety to your ControlLogix 5570 system

The Allen‑Bradley 1756-L7SP is the dedicated Safety Partner for GuardLogix 5570 controllers (the 1756‑L7xS family). It sits in the ControlLogix chassis alongside your safety CPU and runs in lockstep to provide certified safety processing up to SIL3 (IEC 61508) and Performance Level e, Cat. 4 (ISO 13849). From my experience, it’s the straightforward way to meet high integrity safety requirements without redesigning your entire architecture—especially if you already standardize on ControlLogix.

Company’s Order Placement Process and Guarantees

• Warranty: 365 days
• Delivery: In-stock items typically ship within 1 week; no more than one month at the latest
• Payment: 50% advance payment; full payment prior to delivery
• Express options: FedEx, UPS, DHL

Key Features

• Dedicated safety partner for 1756‑L7xS: Pairs with GuardLogix L7xS controllers to enable SIL3/PLe safety tasks.
• Lockstep architecture: Runs safety logic in parallel with the primary safety CPU; discrepancies force a safe state.
• Chassis-based integration: Communicates over the ControlLogix backplane—no external cabling required.
• No user I/O on the module: All field safety I/O is handled via standard/safety ControlLogix I/O modules in the chassis or over safety networks.
• Electronic Keying support: Helps prevent mismatched hardware during commissioning and maintenance.
• Designed for standard ControlLogix environment: Installs in a 1756 chassis with 1756 power supplies and common accessories.
• Safety-certified platform: Typically used to achieve SIL3 (IEC 61508) and PL e, Cat. 4 (ISO 13849) targets when applied correctly.

Technical Specifications

Application Fields

You’ll typically see the 1756-L7SP in high‑integrity safety applications where ControlLogix is already the plant standard:

• Robotics cells with light curtains, interlocks, and safe motion
• Press lines and metal forming with dual‑channel E‑stops and guard monitoring
• Packaging and converting lines requiring safe speed/safe torque off integration
• Process skids and burner management where SIL3 risk reduction is required
• Material handling systems with zoning and safe stops over EtherNet/IP

One thing I appreciate is how cleanly it scales: you add or reconfigure safety I/O over the network, and the partner continues to validate the safety task without extra wiring.

Advantages & Value

• Reliability: Dual‑architecture lockstep execution detects faults quickly and brings equipment to a safe state.
• Compatibility: Works with GuardLogix 1756‑L7xS controllers and standard ControlLogix infrastructure (1756 chassis, supplies, and modules).
• Cost control: Leverages existing ControlLogix networks and safety I/O; no separate safety PLC platform to maintain.
• Lifecycle support: Broad installed base and stable firmware streams; easier to maintain across multi‑line facilities.
• Engineering efficiency: Program and validate via Studio 5000 Logix Designer—one tool for both standard and safety logic.

A maintenance manager told us the biggest win was reducing swap‑time: “When we replaced a controller, pairing the new 1756‑L7SP with our L73S was almost plug‑and‑play. Downtime stayed under our window.”

Installation & Maintenance

• Cabinet & chassis: Install in a 1756 chassis with adequate ventilation; follow spacing guidelines to keep ambient within 0…60 °C.
• Slot placement: Mount the 1756‑L7SP in the slot directly adjacent to the paired 1756‑L7xS safety controller (typically the next slot to the right).
• Power & grounding: Use a proper 1756 power supply and chassis grounding; avoid sharing high‑noise equipment in the same enclosure without segregation.
• Wiring: No field wiring on the 1756‑L7SP; connect field devices to approved safety I/O modules or CIP Safety networks.
• Firmware alignment: Keep safety partner firmware major revision matched to the paired controller; update via Studio 5000 as part of your change‑control process.
• Routine checks: Periodically verify keying, safety task signatures, and diagnostic logs; dust and clean the chassis to maintain airflow.

Quality & Certifications

• CE, UL, cUL certifications (typical for 1756 GuardLogix components)
• TÜV certification for use up to SIL3; intended to support PL e, Cat. 4 when applied per standards
• RoHS compliant hardware in most revisions
• Manufacturer’s standard quality processes; our sales warranty: 365 days

Compatibility note: The 1756‑L7SP is designed to pair with GuardLogix 1756‑L7xS controllers (for example, 1756‑L71S, L72S, L73S, L74S, L75S). For best results, align controller/partner firmware and follow Electronic Keying guidance in Studio 5000.
