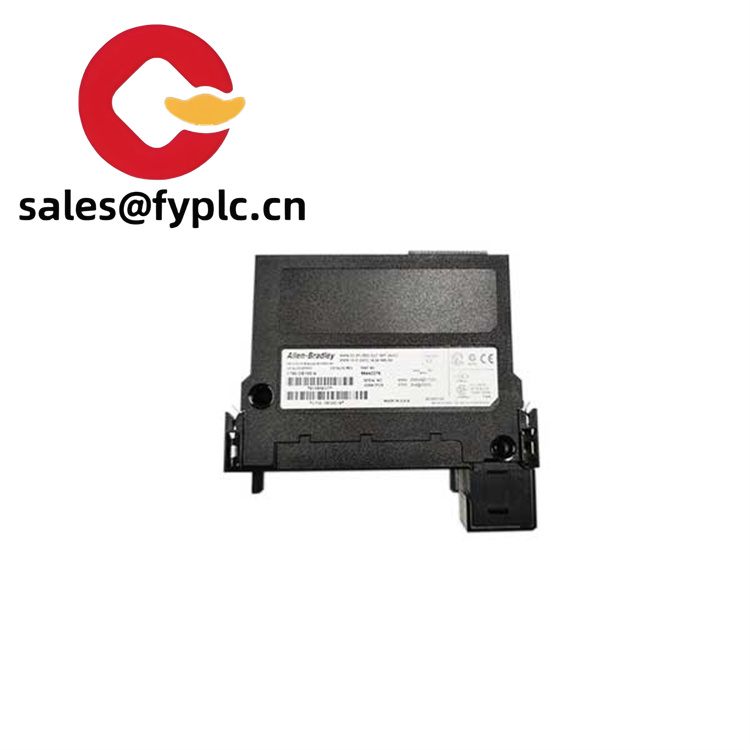

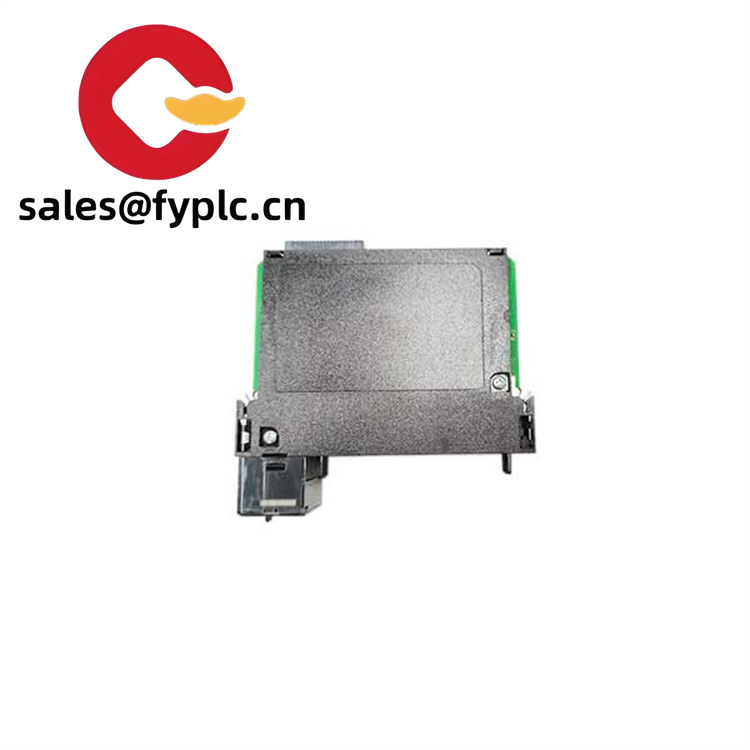

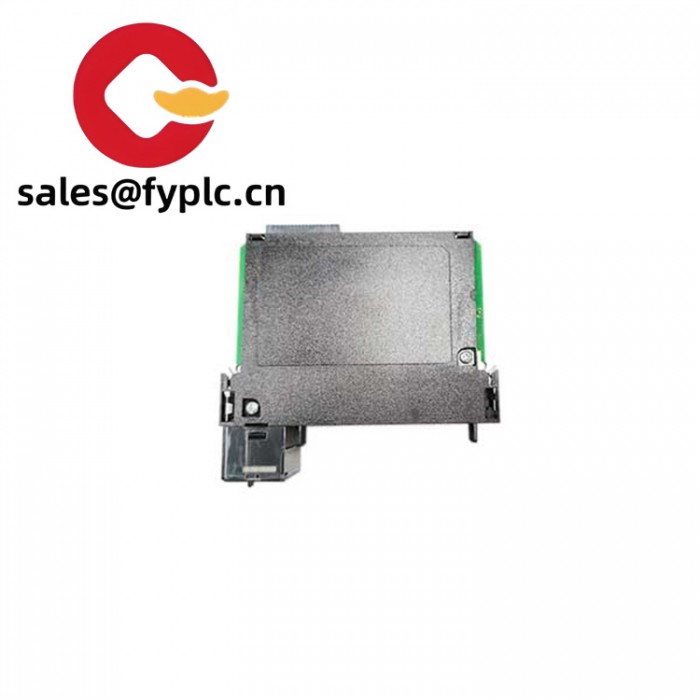

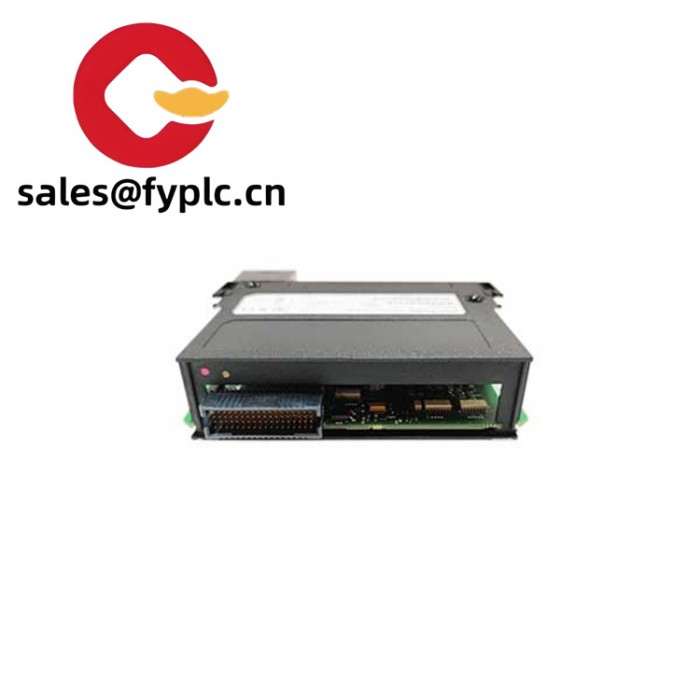

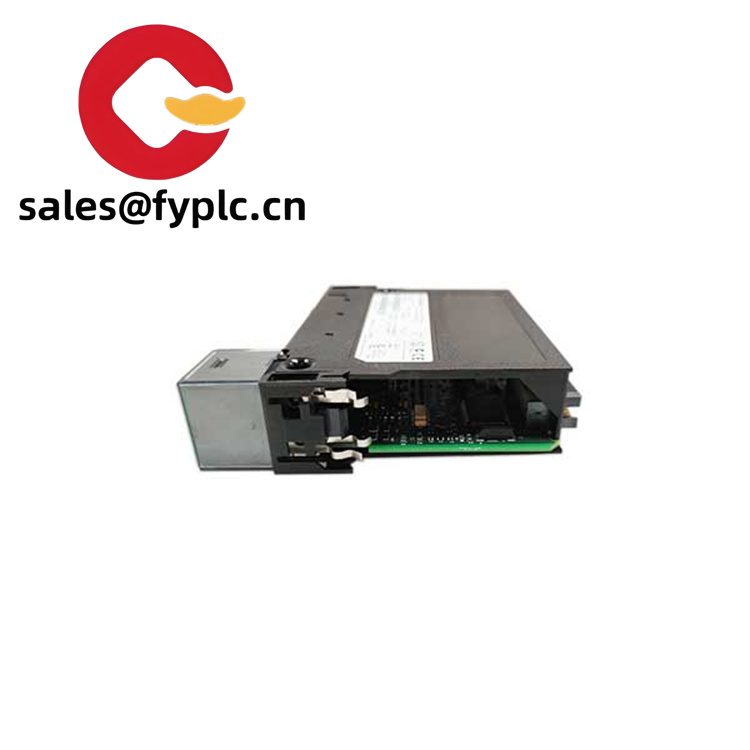

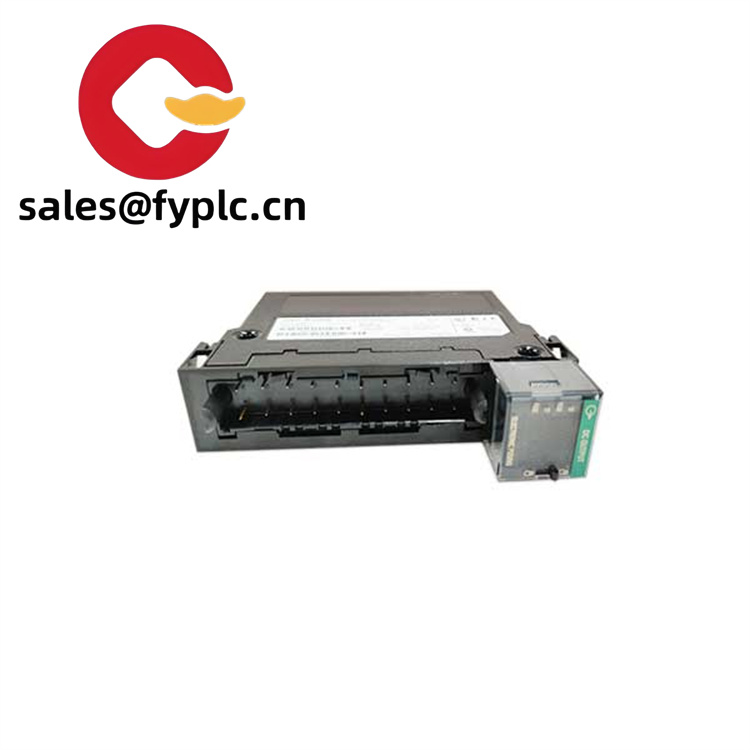

Allen Bradley 1756-OB16E Programmable Output Module

1756-OB16E

The Allen Bradley 1756 – OB16E is designed with a clear purpose: to provide reliable and precise digital output capabilities in industrial settings. It interfaces seamlessly with Controllogix programmable automation controllers (PLCs), acting as a crucial link between the control system and the external devices that need to be actuated. In an industrial control system, accurate control of machinery and equipment is vital, and the 1756 – OB16E plays a key role in achieving this. Whether it’s powering up solenoids, driving relay coils, or lighting up pilot lamps, this module ensures that the right signals are sent at the right time.

Label	Specification
Model Number	1756 – OB16E
Brand	Allen Bradley (Rockwell Automation)
Type	Digital DC Output Module
Input Voltage	Nominal: 24 VDC; Range: 10 – 31.2 VDC
Operating Temp	0 to 60 °C (32 to 140 °F)
Communication Method	Utilizes the trusted Inter Module Bus (IMB) within the Controllogix system for high – speed and reliable communication
Mounting	DIN Rail
Weight	Not specified in common sources, but designed to be compact for easy installation
Certifications	Meets industry – standard certifications, ensuring its suitability for use in various industrial applications
Dimensions	Not specified in common sources, but is a single – slot wide module for efficient space utilization in control panels
IP Rating	Not applicable as it is typically installed within an enclosure in a control panel
Protocols Supported	Depends on the Controllogix system it is integrated with

1756-OB16E

1756 – OB32E – A digital output module with 32 output channels, suitable for applications that require an even higher density of output points compared to the 1756 – OB16E.
1756 – IA16 – An analog input module from the same Controllogix family, which can be used in combination with the 1756 – OB16E in systems that need to both sense analog inputs and provide digital output control.
1756 – L61 – A Controllogix controller that the 1756 – OB16E is compatible with, and together they form a powerful control solution for industrial processes.
1756 – IZ16 – A thermocouple input module, useful for applications where temperature sensing is crucial, and the 1756 – OB16E can be used to control related equipment based on the temperature readings.
1756 – MM1 – A memory module that can enhance the functionality of the Controllogix system when used in conjunction with the 1756 – OB16E, allowing for more complex control algorithms to be implemented.
1756 – OV16E – Another digital DC output module, which may have different output characteristics or features, providing an alternative option depending on the specific requirements of the application.
