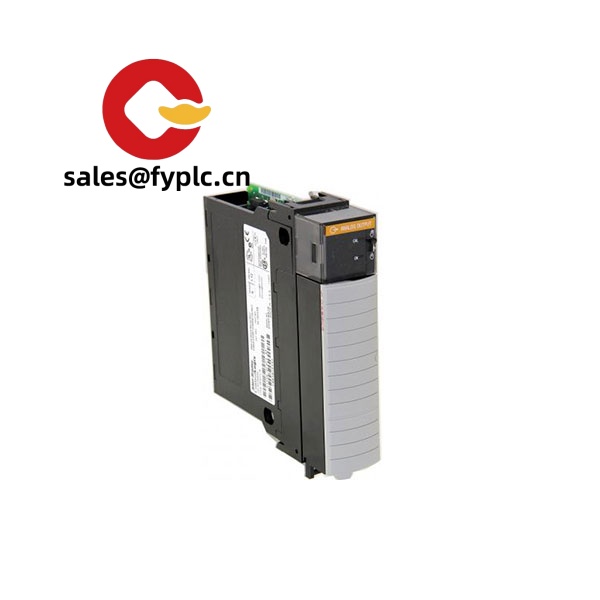

Allen-Bradley 1756-OF6CI Analog Output Module for Precision Industrial Control

The Allen-Bradley 1756-OF6CI is a high-performance analog output module designed for applications requiring precise control over current and voltage signals. From my experience, this module seems to be particularly favored in industries where accuracy and reliability are non-negotiable.

Key Features

• 6-Channel Flexibility: Each channel can be individually configured for either current or voltage output, making it versatile for various industrial setups.
• High Precision: With 16-bit resolution, the module ensures exceptional accuracy, which is critical for processes like temperature control or motor speed regulation.
• Isolated Outputs: The isolated channels reduce noise interference, ensuring stable performance even in electrically noisy environments.
• User-Friendly Diagnostics: Integrated diagnostic features allow you to quickly identify issues, minimizing downtime and maintenance costs.

Technical Specifications

Application Fields

This module is typically used in industries such as oil and gas, water treatment, and manufacturing. For example, I’ve seen it deployed in wastewater plants to control valve actuators with precision. It also works well in packaging lines where variable speed drives need accurate signal outputs.

Advantages & Value

One thing I appreciate about the 1756-OF6CI is its seamless integration into existing Rockwell Automation systems. Its compatibility with other ControlLogix modules simplifies system expansion. Additionally, while upfront costs may seem higher compared to some competitors, the long-term savings from reduced maintenance and enhanced reliability often justify the investment.

Installation & Maintenance

For installation, ensure your cabinet meets standard ventilation requirements to prevent overheating. Wiring should follow best practices for shielding to avoid electromagnetic interference. Routine maintenance includes periodic firmware updates—typically available via the manufacturer’s support portal—and cleaning dust from vents every six months. Calibration checks once a year tend to keep performance optimal.

Quality & Certifications

The 1756-OF6CI carries certifications like CE, UL, and RoHS compliance, ensuring it adheres to global safety and environmental standards. You might notice that these certifications not only guarantee quality but also make regulatory approvals easier during project planning. The manufacturer offers a one-year warranty, covering defects under normal operating conditions.

Note: Delivery times range from one week for in-stock items to no more than a month for special orders. Payment terms include a 50% advance, with full payment required before delivery. Express shipping options like FedEx, UPS, and DHL are available upon request.
