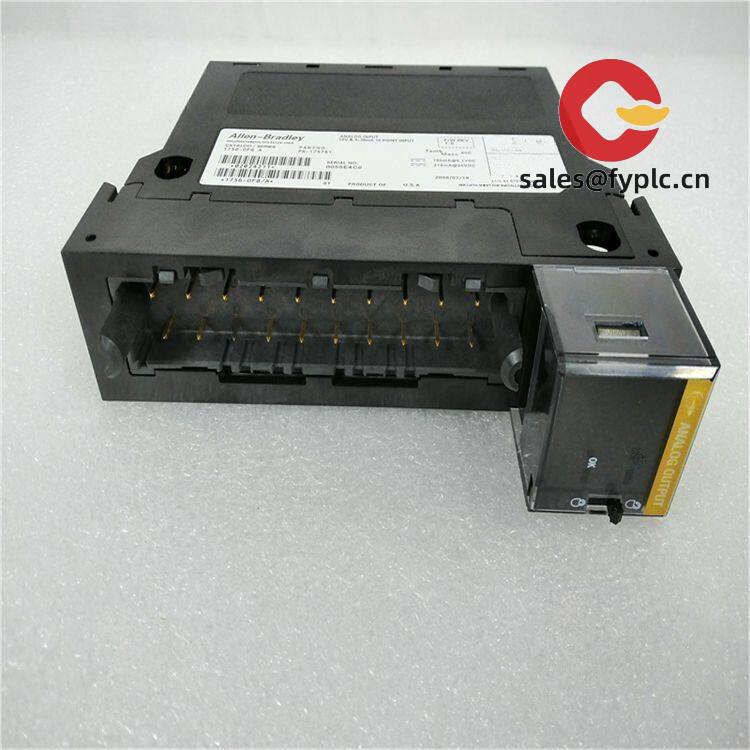

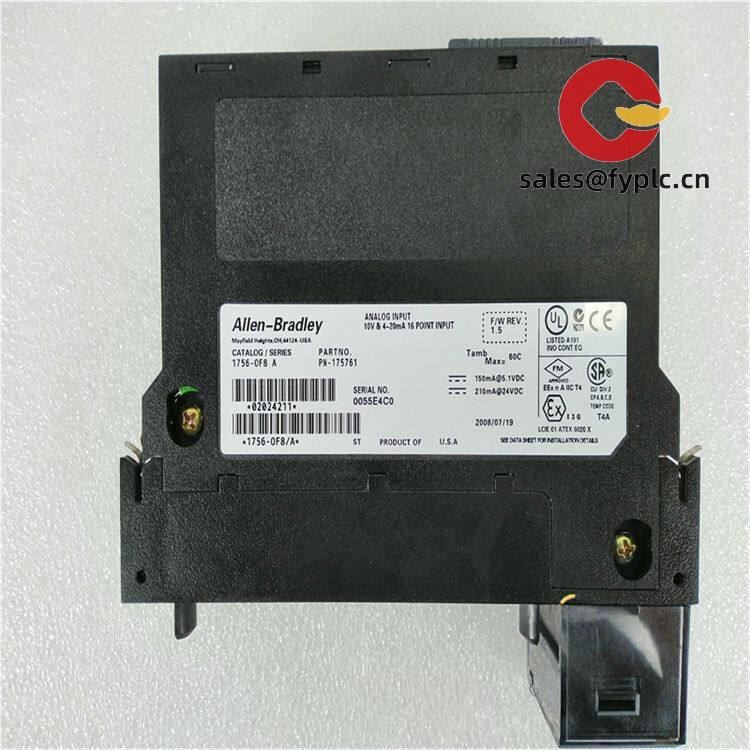

Allen‑Bradley 1756-OF8 – 8‑Channel Analog Output Module for precise ControlLogix voltage/current control

The Allen‑Bradley 1756‑OF8 is an 8‑channel analog output module for the ControlLogix platform, designed to drive analog actuators and setpoints with dependable accuracy. From my experience, it fits best when you need a dense, mixed‑range analog output block to command VFD speed references, valve positioners, dosing pumps, or any loop that expects 0–10 V, ±10 V, 0–20 mA, or 4–20 mA. You might notice that it drops into any 1756 chassis, supports hot‑swap (RIUP), and is straightforward to commission in Studio 5000.

Company’s Order Placement Process and Guarantees

• Warranty: 365 days
• Lead time: In‑stock items typically ship within 1 week; no more than one month at the latest
• Payment: 50% advance payment; full payment prior to delivery
• Express delivery: FedEx, UPS, DHL

Key Features

• Eight analog outputs – Consolidates multiple loops in one module to save cabinet space.
• Voltage and current ranges – Typically supports 0–10 V, ±10 V, 0–20 mA, and 4–20 mA for broad device compatibility.
• Per‑channel configuration – Set ranges independently per channel; scale and engineer units in Studio 5000.
• Safe‑state on fault – Define output states on controller, module, or network fault to protect equipment.
• Hot‑swap (RIUP) – Replace the module under power to reduce downtime during maintenance.
• Tight ControlLogix integration – Add/commission quickly in Studio 5000; diagnostics appear in the controller tags.
• Compact footprint – One 1756 slot delivers eight outputs, often cutting panel density and cost.

Technical Specifications

Application Fields

Typical uses include analog setpoints for VFDs, valve position control in batching plants, temperature setpoint outputs to analog controllers, dosing and metering pumps in water/wastewater, and process trim control in food & beverage, life sciences, and chemicals. One thing I appreciate is how the 1756‑OF8 handles mixed voltage and current loops in the same module; in many cases, that eliminates extra signal conditioners.

• Water/Wastewater – 4–20 mA to control valve actuators and chemical dosing skids
• Oil & Gas – Analog setpoints for pressure control and separator level control
• F&B and Pharma – Clean control cabinets with high loop density and validated change control
• Material Handling – Voltage outputs for conveyor drive speed references
• HVAC & Utilities – ±10 V signals to dampers, drives, and process utilities

Advantages & Value

• Reliability in mixed loops – From my experience, the module runs stable across V and mA applications, cutting nuisance trips.
• Compatibility and lifecycle – Native to ControlLogix with broad firmware support, which typically simplifies spares holding.
• Lower panel count – Eight outputs per slot; often replaces two 4‑channel modules and frees a chassis position.
• Reduced engineering time – Fast configuration in Studio 5000; diagnostics mapped to tags for quick troubleshooting.
• Service and logistics – Global support ecosystem and clear HS classification to streamline imports.

A maintenance lead at a water treatment site told us they consolidated two aging 4‑channel cards into a single 1756‑OF8 and saved a full day of rewiring, plus they liked having a spare slot back for expansion.

Installation & Maintenance

• Cabinet & chassis – Install in a 1756 chassis with a suitable power supply (e.g., 1756‑PA72/PA75/PB72/PB75). Keep the enclosure clean, dry, and adequately ventilated.
• Wiring – Use the correct RTB (1756‑TBCH or 1756‑TBS6H). Separate analog signal wiring from power and high‑noise lines; earth ground shields at one end.
• Safety – De‑energize field circuits before servicing. If using hot‑swap, confirm your controller’s fault/safe‑state handling is set appropriately.
• Commissioning – Verify each channel range (V or mA) in Studio 5000 and scale outputs to engineering units to avoid loop saturation.
• Routine checks – Periodic output verification with a calibrated meter or loop calibrator (typically annually). Keep firmware aligned with your validated baseline and document any updates.
• Environment – Operate within 0–60 °C; maintain non‑condensing humidity. Provide surge protection where transients are expected.

Quality & Certifications

• CE compliant
• UL and cULus listed
• CSA
• RoHS
• Manufacturer’s warranty: typically covered by the standard 365‑day warranty from our side for supplied units

Commonly Paired Components (for a complete build)

• 1756‑A4/A7/A10/A13/A17 – ControlLogix chassis (select slot count to suit expansion)
• 1756‑PA72 / 1756‑PA75 / 1756‑PB72 / 1756‑PB75 – AC/DC chassis power supplies
• 1756‑TBCH / 1756‑TBS6H – 36‑pin RTBs for field terminations (cage clamp or spring clamp)
• 1756‑L8x / L7x – ControlLogix controllers depending on performance and memory needs
