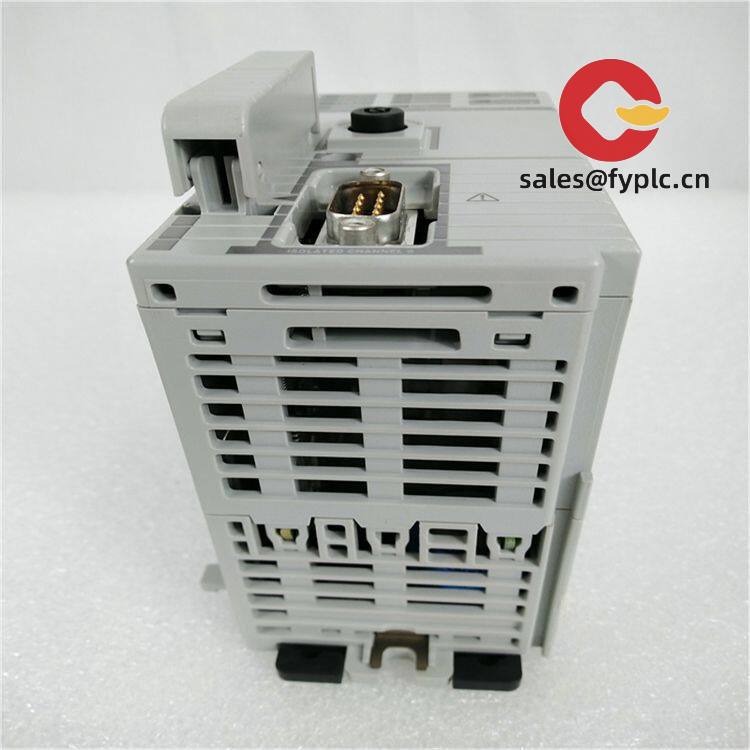

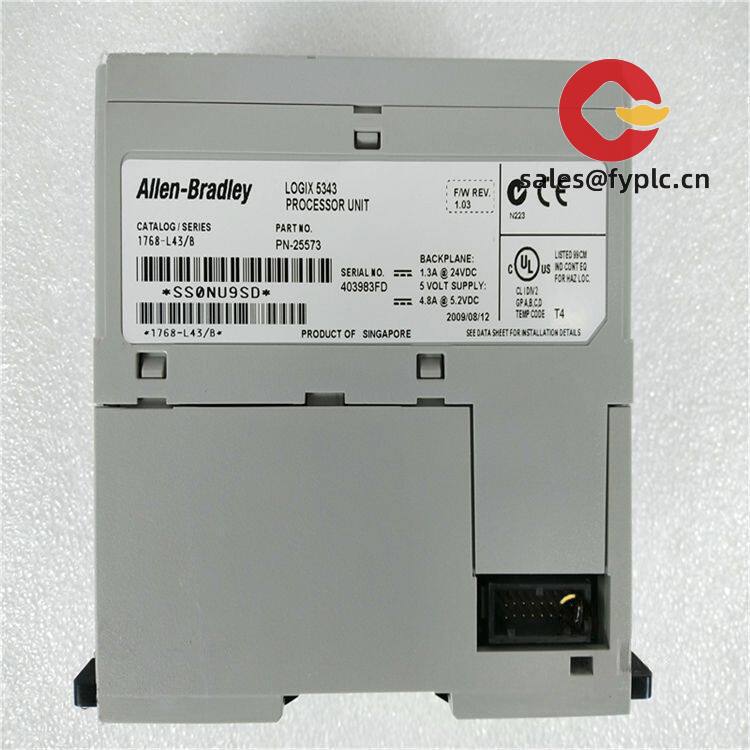

Allen-Bradley 1768-L43 CompactLogix Controller – Reliable Mid-Range Control for Machines and OEM Systems

The Allen-Bradley 1768-L43 is a CompactLogix L4 series controller designed for mid-sized machines that need real-time control, motion expansion, and flexible communications without the footprint of a full ControlLogix rack. From my experience, it’s a sweet spot for OEMs who want EtherNet/IP or ControlNet networking, coordinated motion (via 1768 modules), and the familiar Logix platform—all in a compact, modular build. You might notice that it pairs a 1768 controller platform with local 1769 I/O, which keeps wiring simple and panel space in check.

Order Placement Process and Guarantees

• Warranty: 365 days
• Delivery time: 1 week for in‑stock items; no more than 1 month at the latest
• Payment terms: 50% advance payment; full payment before delivery
• Express options: FedEx, UPS, DHL

Key Features

• CompactLogix L43 CPU – Purpose-built for mid-range control tasks with the Logix architecture and Studio 5000/RSLogix 5000 environment.
• 1768 backplane expansion – Add EtherNet/IP (1768-ENBT), web server (1768-EWEB), ControlNet (1768-CNB/CNBR), or motion (1768-M04SE) as needed.
• Local 1769 Compact I/O support – Direct, space-saving I/O attachment for fast machine wiring and easy scaling.
• Embedded communications – USB (for programming) and RS-232 serial for DF1/DH‑485 and common serial integrations; no onboard Ethernet, which typically keeps the CPU secure by design.
• User memory suited for mid-size applications – Typically up to 2 MB, giving headroom for sequencing, data handling, and motion profiles.
• Deterministic performance – Suitable for coordinated motion (via 1768 motion modules) and time-critical machine logic.
• Familiar development tools – Tag-based programming, Add-On Instructions, and motion instructions reduce engineering time in many cases.

Technical Specifications

Application Fields

The 1768-L43 tends to show up in packaging lines, indexers, cartoners, printing and converting machines, material handling cells, and compact assembly systems where coordinated motion or tight cycle timing is important. It’s also a practical drop-in for plant standardization projects that want EtherNet/IP connectivity without moving to a full chassis system.

One maintenance supervisor told us their cartoner “stopped tripping nuisance faults after we moved serial devices to the controller’s RS‑232 and added a 1768‑ENBT for the robots.” That kind of incremental upgrade seems to be common with L43 systems.

Advantages & Value

• Reliability – Proven CompactLogix platform with wide installed base; typically robust in vibration and temperature ranges common to factory floors.
• Compatibility – Works seamlessly with 1769 I/O, Kinetix motion (via 1768 motion modules), and EtherNet/IP devices; protects prior RSLogix 5000 investments.
• Cost control – Smaller footprint and fewer components than a ControlLogix rack for the same class of machine.
• Serviceability – Simple module replacement, USB programming access, and clear migration path to newer CompactLogix/ControlLogix families when needed.
• Lead time flexibility – We support swift shipment on stocked units and predictable delivery windows when planning retrofits.

Installation & Maintenance

• Cabinet & mounting – Install on DIN rail or panel in a ventilated, clean cabinet that meets UL 508A practices. Keep adequate clearance for airflow on sides and top.
• Power & grounding – Use the proper 1768 power supply (AC or DC model). Bond the panel ground and follow Rockwell grounding/shielding guidelines to minimize EMI.
• Wiring – Route high-voltage and signal cables separately. For serial links, use shielded twisted pair and terminate as recommended.
• Firmware & backups – Match controller firmware to project versions; maintain verified backups. From my experience, version discipline saves hours during changeovers.
• Routine checks – Inspect connectors, module latches, and cabinet fans/filters quarterly. Replace the controller battery (if fitted) per lifecycle recommendations to retain timekeeping.
• Environmental – Operate within 0–60 °C; avoid condensation and corrosive atmospheres; consider conformal-coated modules for harsh areas if required.

Quality & Certifications

• Certifications: CE, cULus Listed, RoHS compliant (typical for Allen‑Bradley CompactLogix series)
• Manufacturer policy: Rockwell Automation standard warranty terms apply when sourced through authorized channels
• Our coverage: 365‑day warranty on supplied units
