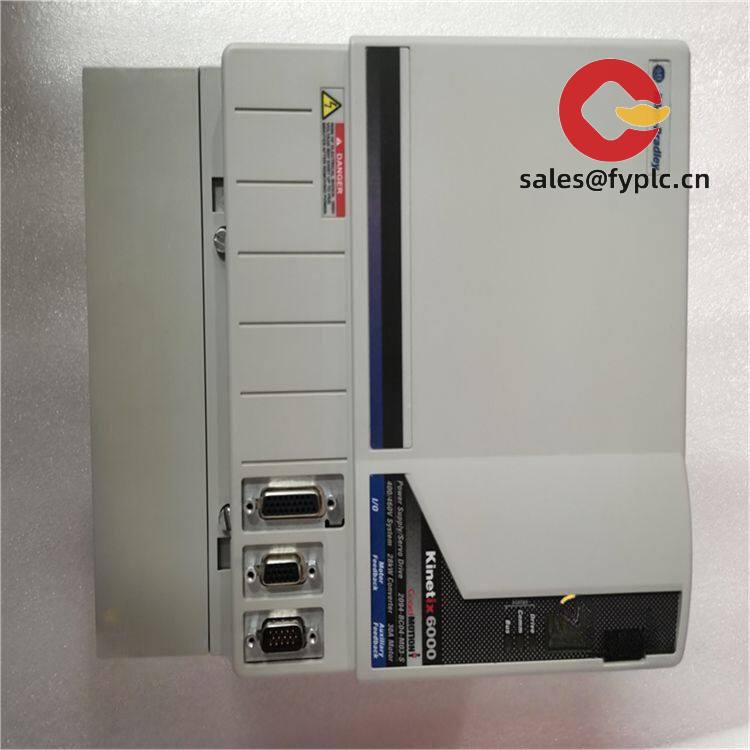

Allen‑Bradley 2094-BC04-M03 – Kinetix 6000 Axis Module for multi‑axis servo motion

The Allen‑Bradley 2094-BC04-M03 is part of the Kinetix 6000 platform and serves as an axis module on the shared DC bus. From my experience, this variant is chosen when you need compact, reliable servo control tied into a Logix controller over a SERCOS interface, without adding another power front end. It typically pairs with a Kinetix 6000 Integrated Axis Module (IAM) that provides the DC bus and line interface, letting you scale from a single axis to multiple axes on the same rail with minimal wiring changes.

Company’s Order Placement Process and Guarantees

• Warranty: 365 days
• Delivery: 1 week if in stock; no more than one month at the latest
• Payment: 50% advance payment; full payment prior to delivery
• Express options: FedEx, UPS, DHL

Key Features

• Axis module for Kinetix 6000 DC bus – Connects to a Kinetix IAM to share the DC bus, which simplifies power wiring and expansion.
• M03 current class – In many cases, the M03 variant is selected for applications around the 3 A continuous range, giving you a compact drive for small to mid‑torque servo motors.
• Seamless Logix integration – SERCOS interface control typically ensures tight motion profiles with standard Add‑On Profiles and well‑known diagnostics.
• Space‑efficient power rail mounting – Slides onto the 2094 power rail, so you can add axes without reworking the cabinet layout.
• Common DC energy sharing – Regenerative energy can be shared across axes on the bus, which can reduce external braking requirements in many machines.
• Rockwell servo ecosystem compatibility – Works with Allen‑Bradley MPL/MPF class servo motors and Kinetix cabling, keeping spares and connectors consistent.

Technical Specifications

Application Fields

You might notice this module in packaging, printing, converting, life sciences, and light assembly systems where cycles are fast and panel space is tight. It seems to be a sweet spot for pick‑and‑place or small axis actuators (feed rollers, star wheels, lane diverting) that don’t need large current but do need precise coordination on a common DC bus.

One machine builder told us they swapped to 2094‑BC series modules to expand from three to six axes without changing the cabinet footprint—just added rail sections and updated the SERCOS configuration, which saved them a full redesign cycle.

Advantages & Value

• Reliability – Proven Kinetix 6000 hardware with robust protection features (overcurrent, short‑circuit, thermal).
• Compatibility – Works within the Logix platform and SERCOS networks; aligns with MPL/MPF motors and standard Kinetix cabling.
• Scalability – Add axes on the power rail as the machine grows; common DC helps with energy balancing.
• Cost efficiency – Reuse of the existing IAM and wiring reduces additional power components and commissioning time.
• Supportability – Documentation and tools are widely available; firmware and hardware lifecycles are well‑defined which helps maintenance teams.

Installation & Maintenance

• Cabinet & mounting – Mount vertically on the 2094 power rail with adequate top/bottom clearance for airflow. Keep ambient within 0–55 °C; avoid dust ingress and corrosive gases.
• Wiring – Use shielded motor/power/feedback cables per Rockwell guidelines; bond shields at the drive; maintain correct phase/feedback pinout. Ensure the SERCOS fiber ring is clean and properly terminated.
• DC bus safety – Wait for the DC bus to discharge before servicing. The bus is supplied by the IAM; verify bus voltage is safe with a properly rated meter.
• Commissioning – Match firmware revisions with your controller’s motion libraries. Load motor data sets and verify current limits for the M03 class to avoid nuisance trips.
• Routine care – Periodically check connector torque, look for signs of overheating, and vacuum dust from ventilation paths. Plan firmware updates during scheduled downtime only.

Quality & Certifications

• Certifications – CE, UL, cUL; RoHS compliant
• Manufacturing standards – Built under ISO 9001 quality systems
• Warranty – 365 days coverage

If you’re confirming fit, a quick check I usually do is: verify the DC bus class of your IAM, confirm SERCOS topology, and match the motor current to the M03 range. That tends to prevent surprises on site.
