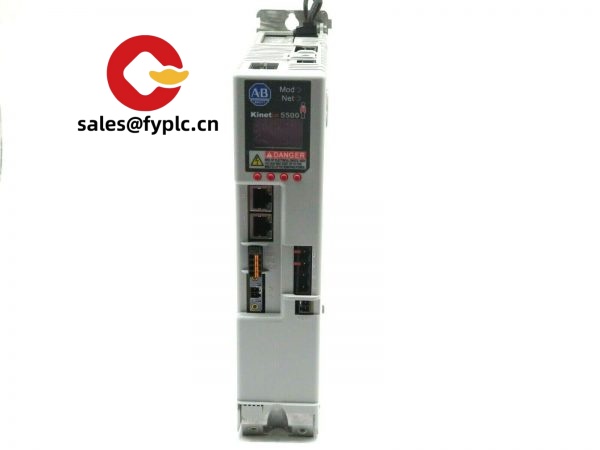

Allen-Bradley 2198-H040-ERS: High-Performance Servo Drive for Precision Motion Control

The Allen-Bradley 2198-H040-ERS is a compact yet powerful servo drive designed to deliver exceptional performance in demanding motion control applications. Whether you’re automating packaging lines, optimizing CNC machinery, or integrating robotics, this drive seems to strike the perfect balance between precision and reliability.

Key Features

• High Torque Density: Capable of delivering consistent torque even at low speeds, making it ideal for applications requiring fine motor control.
• Integrated Safety Functions: Built-in safety mechanisms like Safe Torque Off (STO) help reduce system complexity while ensuring compliance with modern safety standards.
• EtherNet/IP Compatibility: Seamless integration into industrial networks allows for real-time data exchange and simplified diagnostics.
• Compact Design: The space-saving footprint ensures easy installation in control cabinets where real estate is at a premium.
• Auto-Tuning Capability: Reduces setup time by automatically adjusting parameters to match connected motors.

Technical Specifications

Application Fields

From my experience, the 2198-H040-ERS shines brightest in industries that demand high-speed, repeatable processes. It’s commonly used in:

• Automated Packaging: Ensures precise positioning and synchronization on high-speed conveyor systems.
• CNC Machinery: Delivers smooth axis movement for cutting, milling, and engraving operations.
• Robotics: Provides dynamic response for articulated arms and pick-and-place units.
• Material Handling: Optimizes throughput in sorting and stacking equipment.

Advantages & Value

What sets this servo drive apart is its ability to simplify complex tasks without compromising performance. In most cases, customers appreciate how its auto-tuning feature reduces commissioning time significantly. Additionally, the EtherNet/IP compatibility means fewer headaches when integrating it into existing architectures. And let’s not forget—its robust build quality ensures long-term reliability, which translates to lower maintenance costs over time.

Installation & Maintenance

Installing the 2198-H040-ERS typically involves mounting it on a standard DIN rail or securing it to a panel using provided brackets. Make sure there’s adequate ventilation around the unit to prevent overheating. Wiring should follow local electrical codes, and proper grounding is critical to avoid noise interference.

For routine maintenance, periodic firmware updates are recommended to keep the drive running optimally. Cleaning dust from vents and checking connections annually will also extend its lifespan. Calibration isn’t usually necessary unless extreme accuracy deviations occur.

Quality & Certifications

This model comes with certifications including CE, UL, and RoHS compliance, ensuring it meets global safety and environmental standards. The manufacturer backs it with a 12-month warranty, giving you peace of mind during deployment. If issues arise, technical support is available to assist with troubleshooting.

Order Placement Process and Guarantees

We guarantee delivery within one week for in-stock items, with a maximum lead time of one month for special orders. Payment terms require a 50% deposit upfront, with the balance due before shipment. Shipping options include FedEx, UPS, and DHL for fast, reliable delivery worldwide.
