Description

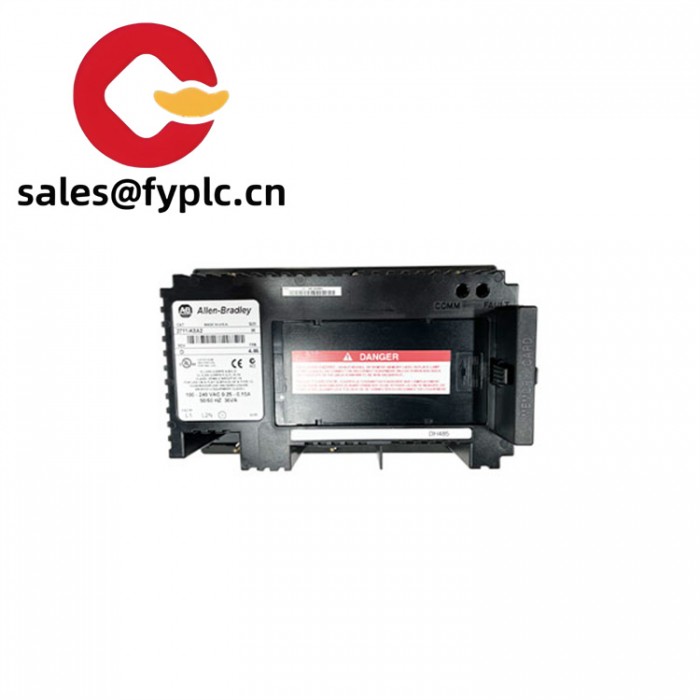

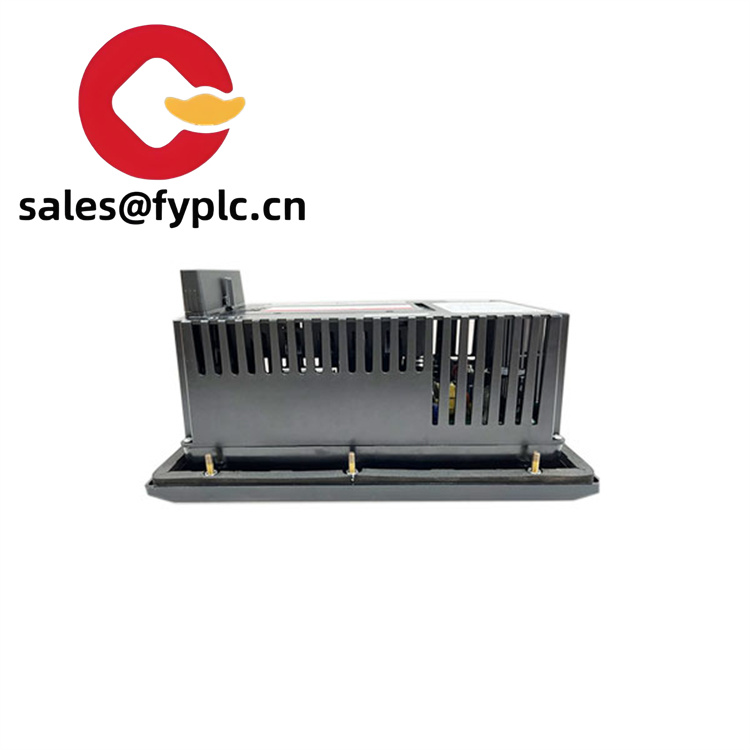

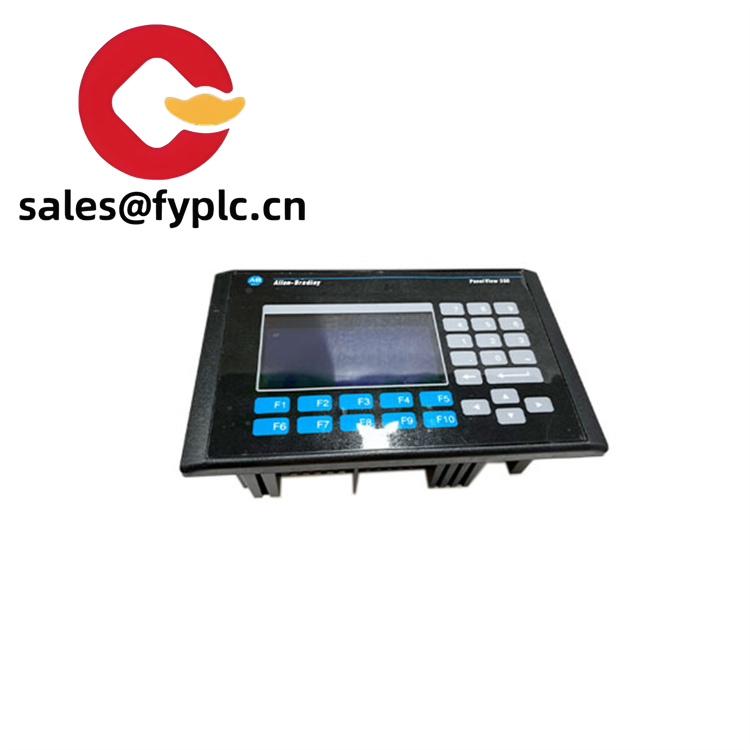

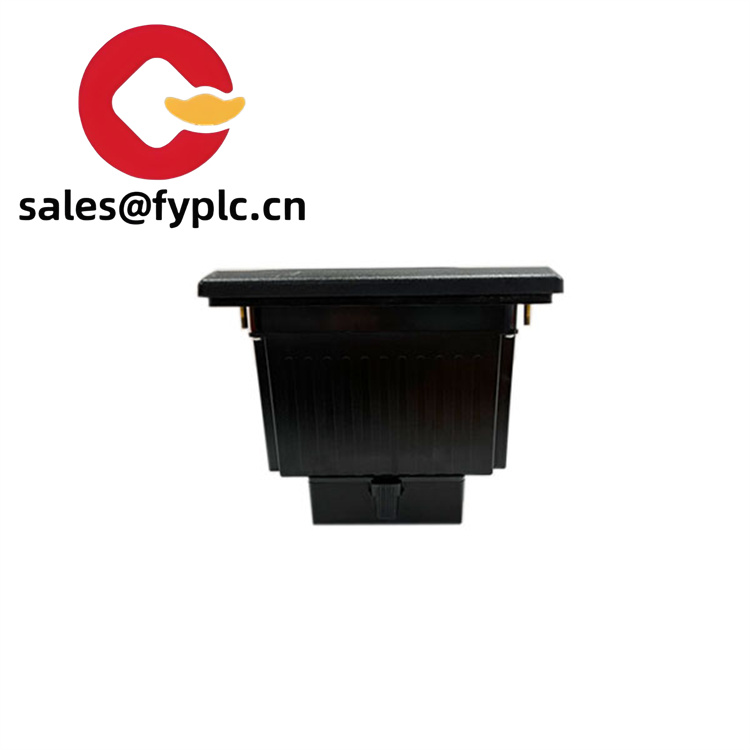

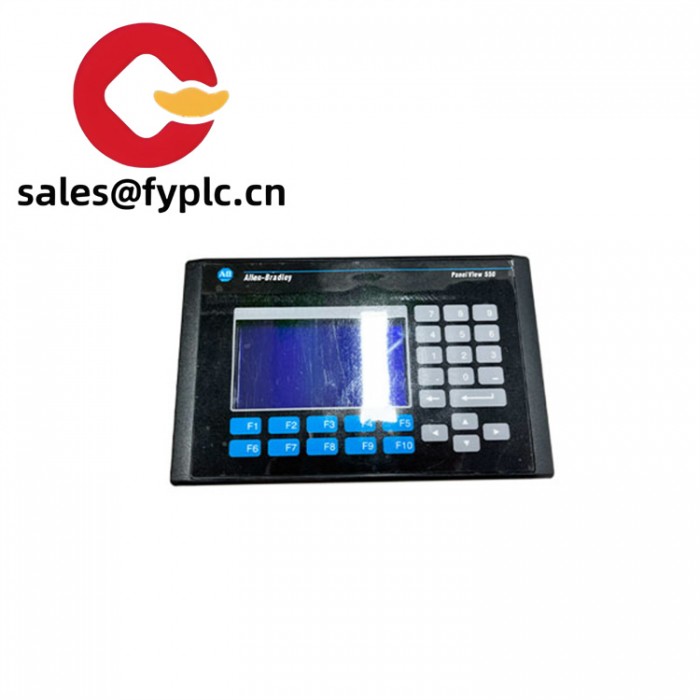

Allen Bradley 2711-K5A2-H standard terminal operation touch screen
2711-K5A2-H
Whether deployed in packaging lines, material handling systems, or small manufacturing cells, the Allen Bradley 2711-K5A2-H plays a key role in streamlining operations. It integrates seamlessly with Allen-Bradley’s SLC 500 and Micro800 controllers, as well as other compatible PLCs, ensuring smooth communication for real-time data exchange. By providing clear access to process status, alarm notifications, and basic control functions, the Allen Bradley 2711-K5A2-H helps operators make quick decisions, reducing downtime and improving overall efficiency in everyday industrial settings.
|
Label
|
Specification
|
|
Model Number
|
2711-K5A2-H
|
|
Brand
|
Allen Bradley
|
|
Type
|
PanelView 550 HMI Terminal
|
|
Display Size
|
5.7 inches
|
|
Display Type
|
Monochrome LCD
|
|
Resolution
|
320 x 240 pixels
|
|
Input Method
|
Keypad (24 keys)
|
|
Input Voltage
|
120 VAC
|
|
Operating Temp
|
0°C to 50°C (32°F to 122°F)
|
|
Mounting
|
Panel-mount
|
|
Weight
|
Approx. 1.8 kg (4.0 lbs)
|
|
Certifications
|
UL, cUL, CE
|
|
Dimensions
|
203mm x 152mm x 102mm (8.0″ x 6.0″ x 4.0″)
|
|
IP Rating
|
IP65 (front panel)
|
|
Communication Ports
|
1 x RS-232, 1 x RS-485
|
|
Memory
|
256 KB non-volatile memory
|
|
Backlight Life
|
50,000 hours (typical)
|
|
Keypad Type
|
Membrane, sealed
|
2711-K5A2-H
In small packaging operations, where space and budget are often limited, the Allen Bradley 2711-K5A2-H proves its worth as a practical HMI solution. It connects to conveyors, fillers, and sealers, displaying production counts, speed settings, and fault alerts. Operators use the keypad to adjust packaging parameters, such as bag length or sealing temperature, ensuring consistency in output. For example, if a sealer temperature drops below the required threshold, the Allen Bradley 2711-K5A2-H triggers an alarm, prompting the operator to investigate and adjust, preventing defective packaging and reducing waste.
2711-K5A2-H
- Allen Bradley 1746-L32B – An SLC 500 controller that pairs seamlessly with the Allen Bradley 2711-K5A2-H for integrated control in small systems.
- Allen Bradley 2711-NL1 – A communication adapter that extends the Allen Bradley 2711-K5A2-H’s connectivity to Ethernet networks.
- Allen Bradley 1606-PS120 – A 120VAC power supply that provides reliable power to the Allen Bradley 2711-K5A2-H in panel installations.
- Allen Bradley 2711-K5A1 – A similar model with a 120 VAC input and slightly different keypad layout, offering an alternative for specific setups.
- Allen Bradley RSView Studio – Software used to configure screens, alarms, and communication settings for the Allen Bradley 2711-K5A2-H.
- Allen Bradley 2711-K5A3 – A higher-memory variant of the Allen Bradley 2711-K5A2-H, suitable for applications with more complex HMI screens.
