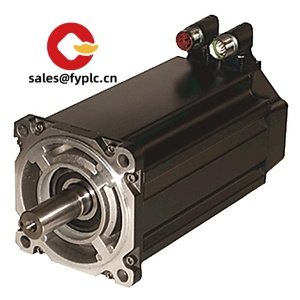

Allen‑Bradley MPL-B4530K-MJ74AA – Low‑Inertia Kinetix Servo Motor for Fast, Precise Motion

The Allen‑Bradley MPL‑B4530K‑MJ74AA is part of the Kinetix MPL low‑inertia servo motor family used widely in high‑throughput machinery. From my experience, this model suits applications that need quick accel/decel and tight positioning—think pick‑and‑place, form‑fill‑seal, indexing conveyors, or multi‑axis assembly stations. You might notice the “B45” frame picks a sweet spot between torque density and compact size, making panel layouts much easier.

Company’s Order Placement Process and Guarantees

• Warranty: 365 days
• Delivery time: typically 1 week if in stock; no more than one month at the latest
• Payment: 50% advance; full payment prior to delivery
• Express options: FedEx, UPS, DHL

Key Features

• Low‑inertia rotor – Designed for rapid starts/stops and precise following on Kinetix drives, typically improving cycle times on indexing axes.
• High‑resolution feedback – The MJ optioning in this series commonly includes a high‑resolution encoder for smooth velocity control and accurate positioning.
• Keyed shaft, industrial connectors – The “K” shaft style works well with standard keyed couplings and pulleys, while circular connectors simplify field wiring.
• Brake and sealing options – Many -MJ7x variants ship with a 24 VDC holding brake and shaft seal for vertical loads and dusty or oily environments.
• Kinetix ecosystem compatibility – Pairs with Allen‑Bradley Kinetix multi‑axis and single‑axis drives (commonly 400/480 V class), streamlining commissioning in Studio 5000.
• Compact 100 mm‑class flange – Typically fits tight cabinets and machine frames without sacrificing continuous torque.

Technical Specifications

Related or Supporting Products

• Kinetix servo drives: 2198 (Kinetix 5500), 2097 (Kinetix 350), 2093 (Kinetix 6000) — selection depends on axis power and feedback option.
• Allen‑Bradley 2090 series motor power and feedback cables — available in standard and continuous‑flex types, with brake conductors when required.
• Alternative MPL motors: MPL‑B4540K‑MJxx (higher torque, same frame), MPL‑B330x series (smaller frame for tighter spaces).
• Gearboxes: compatible planetary gear units with keyed input (IEC mounting); ratio chosen per torque/speed requirement.

If you’re replacing an installed unit, matching the exact option string (-MJ74AA) typically ensures the same feedback, connectors, and brake/seal configuration, minimizing commissioning time.

Installation & Maintenance

• Mounting & alignment – Use the flange pilot for centering; avoid side‑loading the shaft during coupling. Keyed couplings should be fully seated with proper backlash.
• Cabinet/environment – Ensure adequate ventilation and keep ambient within 0…40 °C; in many cases a modest fan improves thermal headroom on high‑duty cycles.
• Wiring – Route power and feedback separately; bond shields 360° at the drive end. Use 2090 series cables with correct brake conductors if a holding brake is present.
• Safety – Lock out power, discharge drive bus capacitors, and support vertical loads before removing the motor or coupling.
• Routine checks – Inspect connectors and cable strain relief quarterly; verify grounding, clean the motor body, and check for seal wear in washdown or dusty areas.
• Tuning & updates – After installation, run Kinetix autotune and store profiles in your controller project. Firmware updates on the drive side can improve loop performance.

Quality & Certifications

• CE and UKCA compliant (typical for MPL series motors)
• UL Recognized / cUL Listed for applicable categories
• RoHS compliant materials
• Manufacturer warranty: standard Rockwell Automation terms; our coverage is 365 days from shipment
