Description

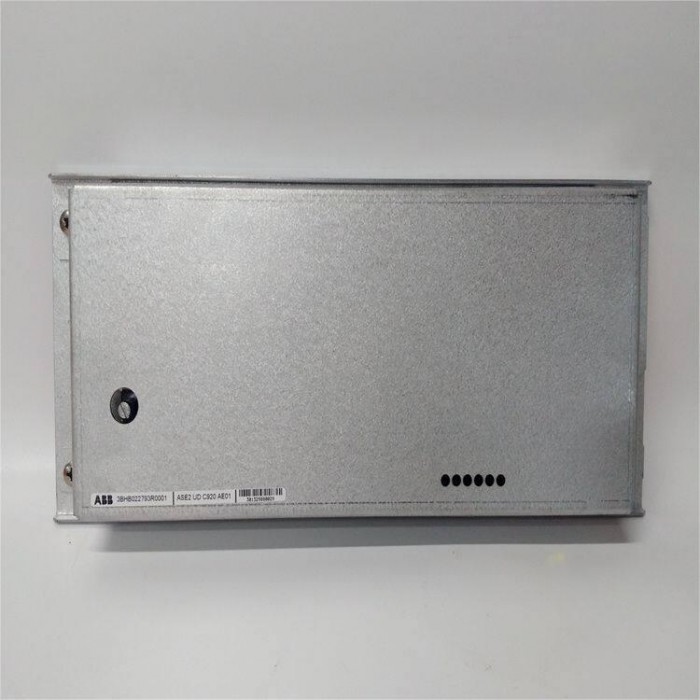

ASE2UDC920AE01 is a high-performance control module produced by ABB, and 3BHB022793R0001 is its corresponding part number. Here is the detailed information about this product:

Basic InformationBrand: ABBSeries: ASE SeriesType: General-purpose isolated safety barrierPower Supply Voltage: Typically 24V DC, some models support 220V/380V ±10% 50HZNumber of Input/Output Points: 16 input/output channelsInput Type: DC voltage or currentOutput Type: DC voltage or currentOutput Power: 200WEfficiency: Up to 95%Operating Temperature Range: -40°C to +70°CDimensions: 184mm x 70mm x 41mmWeight: 650g

FeaturesHigh-Precision Control: Uses high-precision sensor technology to ensure accurate control and monitoring, enabling precise voltage regulation and efficient power distribution.Multiple Control Algorithms: Supports various control algorithms, such as PID control, logic control, and motion control, suitable for complex industrial automation and control systems.Rich Communication Functions: Designed for ABB ACS800 and ACS350 series inverters as a DeviceNet communication module, supporting all standard DeviceNet baud rates, including 125, 250, and 500 kb/s. It also supports polling, stroking, change of state (COS), and cyclic I/O message transmission.Diagnostics and Management Functions: Equipped with diagnostic LEDs that intuitively indicate the module’s operating status and fault information, and also features UCMM (Unconnected Message Manager) capability.Protection Functions: Provides dual over-voltage protection, short-circuit protection, and overcurrent protection to ensure safe operation of the equipment.Wide Operating Temperature Range: Operates within a temperature range of -40°C to +70°C, suitable for various industrial environments.High Integration: The module has a compact design with high integration, saving installation space, and is easy to install and maintain.

Application AreasIndustrial Automation: Used for production line control, machine control, etc.Building Automation: Used in building automation systems.Traffic Automation: Used for traffic system control.Power System Control: Used for monitoring and controlling generators and transformers.
