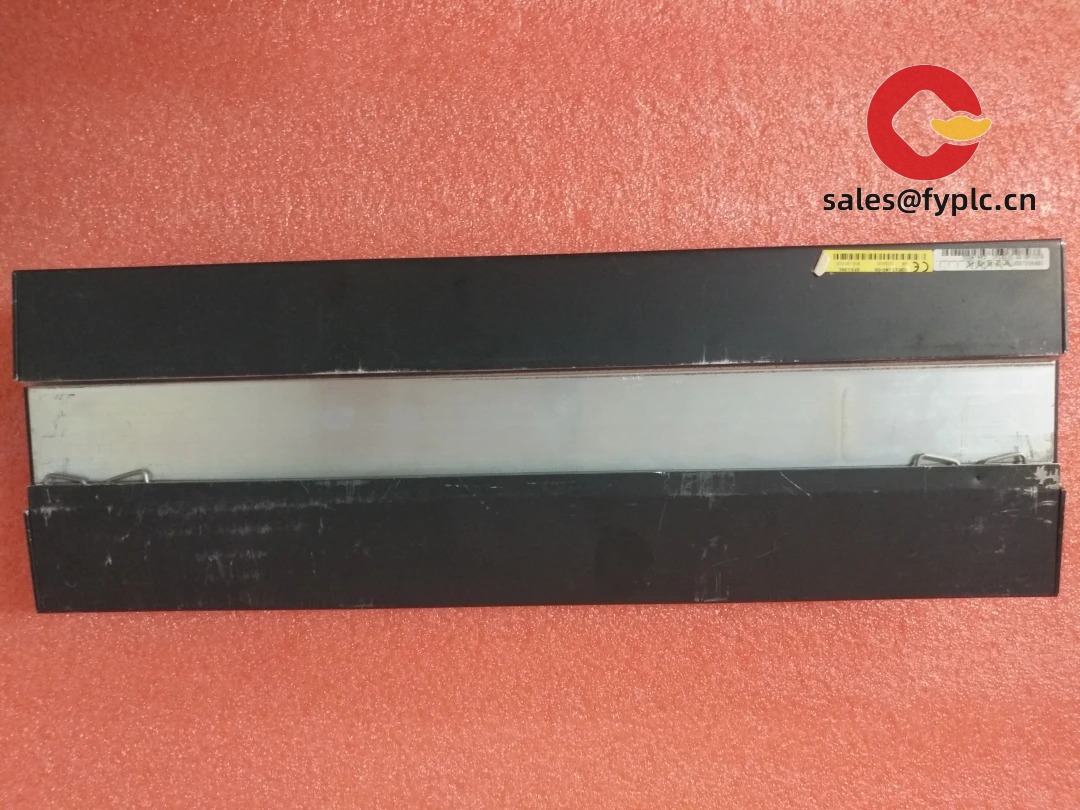

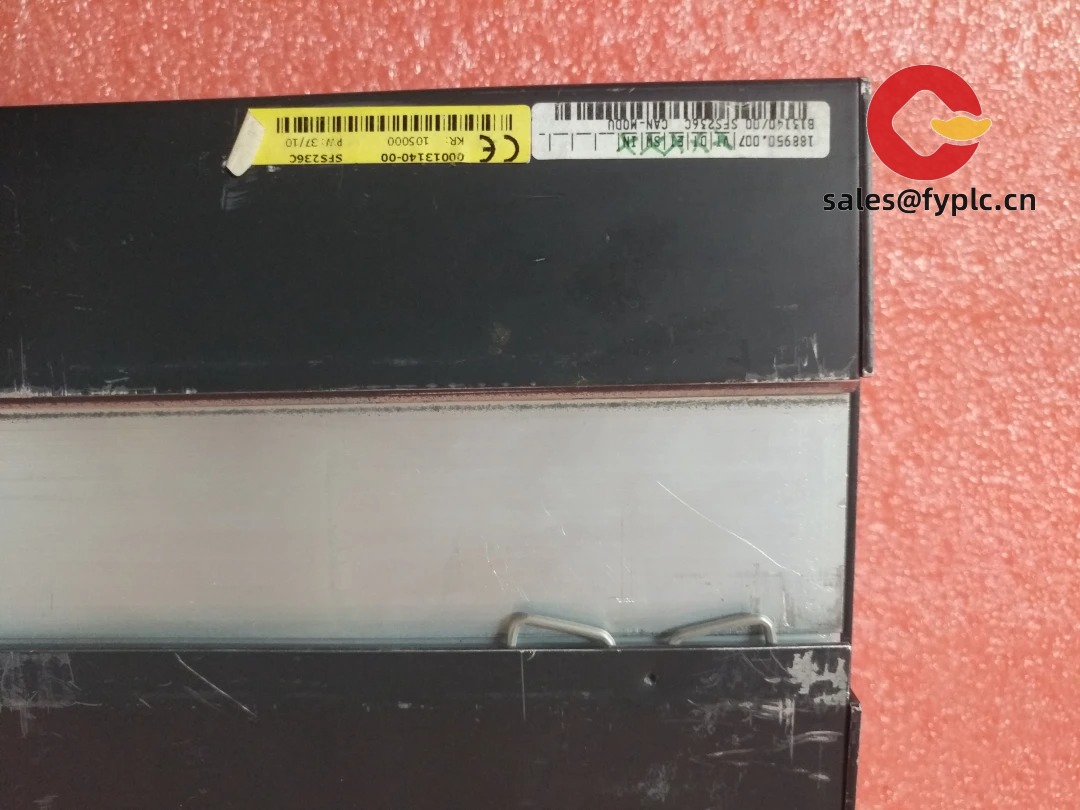

BACHMANN SFS236C – Fast Signal I/O Module for M1 Automation Systems

The BACHMANN SFS236C sits in that sweet spot where you need reliable, fast digital signal handling on the M1 platform—think pulse counting, edge detection, and time-critical interlocks. From my experience, this series is typically used when standard DI/DO just isn’t quick enough or you want tighter timing and cleaner diagnostics in the same compact module footprint. You might notice that it follows Bachmann’s robust design approach: core 24 VDC industrial signals, galvanic isolation by channel groups, and clear front-panel status LEDs that make commissioning less of a guessing game.

Teams in wind, marine, and test benches seem to like it because it handles “noisy” plant environments with fewer false triggers, and configuration stays consistent through the M1 engineering toolchain. One thing I appreciate is how it integrates with the backplane without extra wiring complexity—less time on cabinet rewiring, more time actually running the process.

Order Placement Process and Guarantees

• Warranty period: 365 days
• Delivery time: 1 week for in-stock items; no more than one month at the latest
• Payment method: 50% advance payment, full payment for delivery
• Express delivery methods: fedex, UPS, DHL

Key Features

• Fast digital signal processing – Designed for high-speed inputs such as pulse/edge signals and time-critical logic, typically used for counters, tachometers, or interlocks.
• M1 backplane integration – Seamless data exchange over the M1 system bus; no external gateway or adapters needed.
• Industrial 24 VDC I/O – Robust 24 V signal levels commonly used across machinery, power, and process applications.
• Galvanic isolation (grouped) – Helps reduce ground loops and noise issues in mixed-signal cabinets.
• Front status LEDs and diagnostics – Faster commissioning and fault tracing; you can usually spot wiring or sensor issues at a glance.
• Configurable filtering and debounce – Software-adjustable filtering (in many cases) to tame noisy signals without extra hardware.
• Compact cabinet footprint – Fits the standard M1 module format for neat, dense installations.

Technical Specifications

Brand / Model	BACHMANN SFS236C
HS Code	8537.10 (Control panels/boards for electric control, ≤1000 V)
Power Requirements	24 VDC via M1 backplane (typical for M1 I/O modules)
Signal Input/Output Types	Fast digital I/O, pulse/edge detection; 24 VDC signal level (typical)
Communication Interfaces	Bachmann M1 system backplane bus; front connectors for field wiring
Installation Method	DIN rail (35 mm) on M1 backplane; cabinet mounting (IP20)
Operating Temperature	Typically -25 °C to +60 °C; check module datasheet for exact range
Dimensions & Weight	Standard M1 module format; compact width for dense I/O (module family scale)

Application Fields

• Wind and renewable energy – encoder pulses, pitch/yaw feedback, high-speed alarms.
• Marine and offshore – propulsion speed monitoring, shaft counters, interlock logic.
• Turbomachinery and power – turbine overspeed sensing, trip chains with short response times.
• Test benches and R&D rigs – timing-critical measurements, stable digital triggering.
• Factory automation – packaging counters, mark detection, high-frequency sensor inputs.

A maintenance lead from a turbine service team shared a simple note with us: “Swapping to this module cut false counts to near zero. We didn’t change sensors—just the filtering profile.”

Advantages & Value

• Reliability – Built for continuous operation; diagnostics reduce unplanned stops.
• Compatibility – Plugs straight into existing M1 racks, engineering tools, and libraries.
• Cost savings – Less external signal conditioning; fewer auxiliary relays and filters in many cases.
• Lifecycle support – Bachmann’s platform approach helps keep spares and firmware aligned across sites.

Installation & Maintenance

• Cabinet & mounting – Install on 35 mm DIN rail with the M1 backplane; use an IP54+ enclosure, good ventilation, and observe clearance for heat dissipation.
• Wiring – 24 VDC control wiring with proper ferrules; separate high-voltage and motor cables; shield and ground fast pulse lines where possible.
• Power & grounding – Stable 24 VDC supply with proper grounding; avoid shared returns with noisy loads.
• Commissioning – Verify channel polarity, debounce/filter settings, and observe front-panel LEDs during I/O checks.
• Routine care – Quarterly dust cleaning, connector re-seating if needed, and periodic firmware/config backups. Update firmware during scheduled downtime only.
• Safety – De-energize the cabinet before servicing; confirm isolation and lockout-tagout procedures.

Quality & Certifications

• CE compliant; RoHS conformity typical for the series.
• UL/CSA approvals are common on Bachmann M1 modules; verify exact file numbers per module revision.
• Manufacturer’s warranty support combined with our 365-day warranty policy for supplied units.

Related/Compatible Components

If you’re building out a full rack, these pair well with SFS236C on the M1 platform:

• BACHMANN M1 CPU modules (e.g., MPC series) – central processing and networking.
• BACHMANN power supply modules (24 VDC input) – stable backplane power.
• Complementary I/O (DI/DO/AI/AO) – standard digital and analog modules for non-fast channels.
• Backplane/terminal accessories – front connectors and labeling sets to speed up wiring.

If you need the exact channel count, input thresholds, or timing specs for BACHMANN SFS236C, share your firmware revision or rack list—specs can vary a little by variant, and matching those details upfront typically shortens commissioning time.
