BENTLY 126599-01 System Card Sensor Vibration I/O Module

Compatibility	BENTLY Nevada 3500/44M aeroderivative GT vibration monitor system
Input/Output Channels	Four channels, adaptable for vibration sensors or accelerometers
Communication Protocol	Proprietary BENTLY Nevada protocol

Categories: BENTLY NEVADA

Need help?
Email: sales@fyplc.cn
Tel/WhatsApp: +86 173 5088 0093

Description
Reviews (0)

Description

BENTLY 126599-01 System Card Sensor Vibration I/O Module

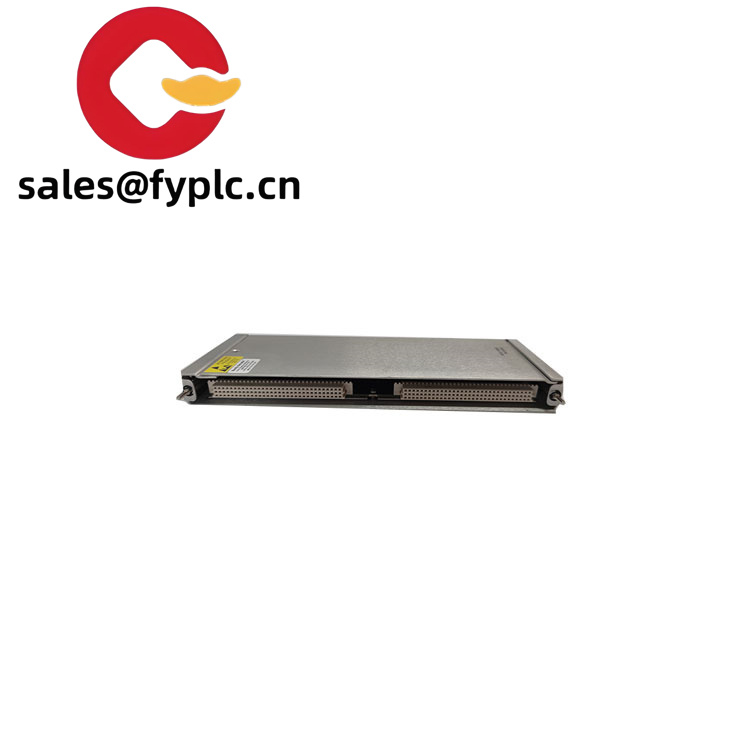

126599-014

In the complex ecosystem of industrial machinery health management, the BENTLY 126599 – 01 shines as a pivotal component, redefining the precision and efficiency of vibration monitoring for critical equipment. This high – performance I/O module is meticulously engineered to be an integral part of the BENTLY Nevada 3500/44M aeroderivative GT vibration monitor system, dedicated to ensuring the seamless operation of gas turbines, compressors, and other rotating machinery in challenging industrial settings.

Label	Specification
Model Number	126599 – 01
Brand	BENTLY
Type	Aero GT I/O Module
Compatibility	BENTLY Nevada 3500/44M aeroderivative GT vibration monitor system
Input/Output Channels	Four channels, adaptable for vibration sensors or accelerometers
Communication Protocol	Proprietary BENTLY Nevada protocol
Continuous Monitoring	Real – time data provision on machine vibration levels
Alarm Generation	Triggers alerts when vibration thresholds are exceeded
Data Acquisition	Efficient collection of vibration data for in – depth analysis
Remote Monitoring	Enables access to vibration data from a central location
Scalability	Supports expansion for additional sensors and channels
Rugged Design	Built to endure harsh industrial environments
Dimensions	241.3 mm x 24.4 mm x 99.1 mm
Weight	0.45 kg
Frequency Response	Direct signal: 4 Hz to 30,000 Hz (-3 dB); Integrated velocity: 18 Hz to 5500 Hz (-3 dB); Non – integrated acceleration: 4 Hz to 30,000 Hz (-3 dB); Integrated acceleration: 18 Hz to 14,500 Hz (-3 dB); Bias low – pass filter: 0.01 Hz (-3 dB)

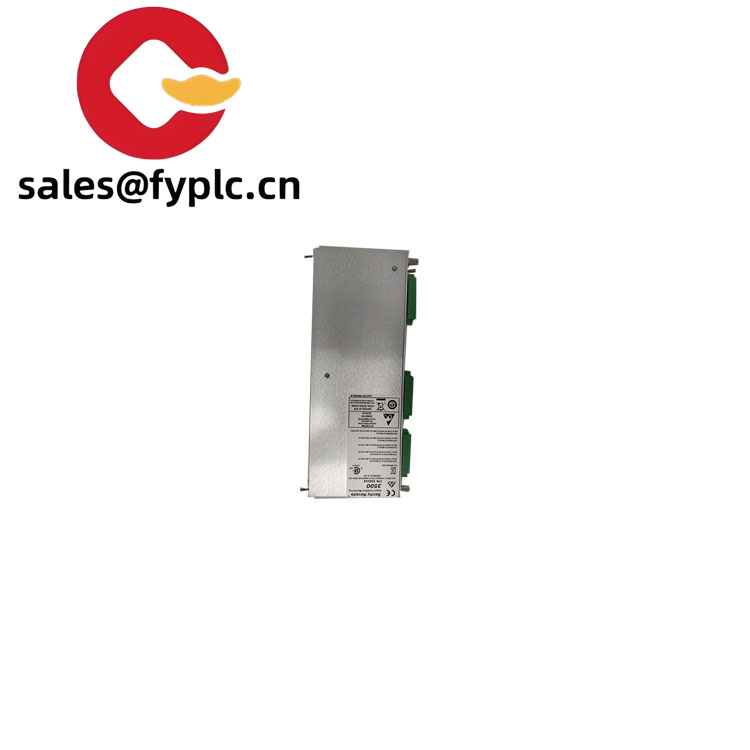

126599-015

The BENTLY 126599 – 01 is packed with an array of functional strengths and design advantages that set it apart in the industrial landscape. Equipped with advanced signal conditioning and isolation circuitry, it ensures that the incoming signals from sensors are clean and accurate, minimizing the impact of electrical interference and noise prevalent in industrial environments. The module’s high – speed analog – to – digital conversion capabilities enable rapid and precise data acquisition, allowing for real – time monitoring of machinery vibrations. The use of BNC connectors for sensor connections not only simplifies the installation process but also ensures a secure and reliable connection, further enhancing the stability of data transfer.

One of the key highlights of the 126599 – 01 is its ability to provide continuous, real – time data on machine vibration levels. This feature empowers operators to closely monitor the health of their equipment, detect any anomalies promptly, and take corrective actions before they escalate into major problems. The alarm generation functionality, which triggers alerts when vibration levels exceed pre – defined thresholds, serves as an early – warning system, preventing potential equipment failures and costly downtime. The data acquisition capabilities of the module are equally impressive, as it collects vibration data in a structured manner, facilitating in – depth analysis and diagnostics. This data can be used to identify patterns, trends, and potential issues, enabling the implementation of predictive maintenance strategies.

126599-014

The BENTLY 126599 – 01‘s remote monitoring capabilities are a game – changer in industrial operations. It allows operators to access vibration data from a central location, eliminating the need for on – site inspections in many cases. This not only improves operational efficiency but also enables faster response times, as issues can be detected and addressed in a timely manner, regardless of the operator’s physical location.
