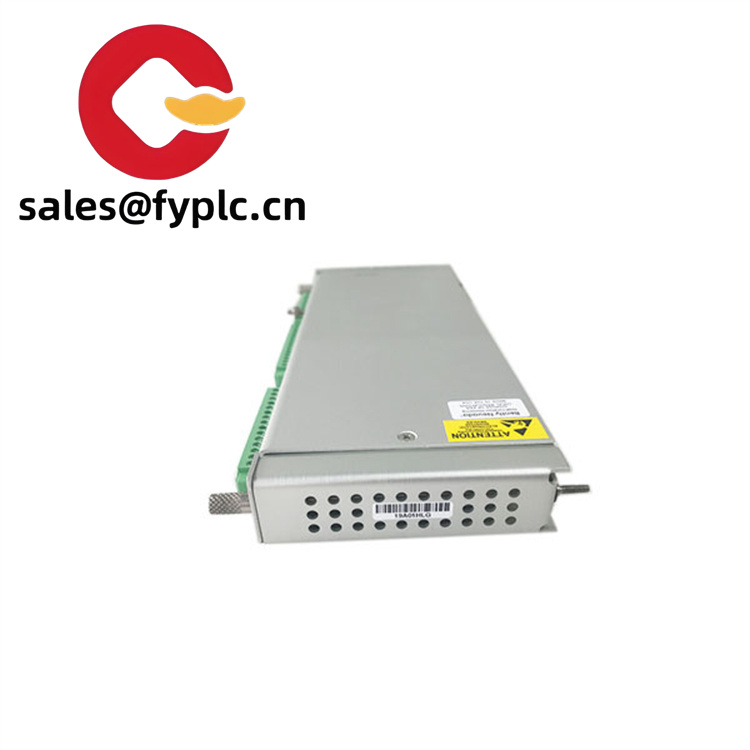

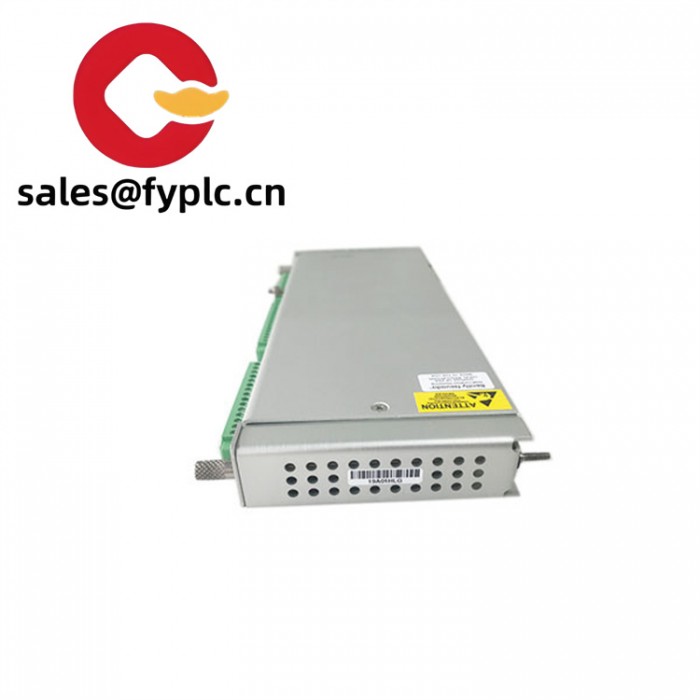

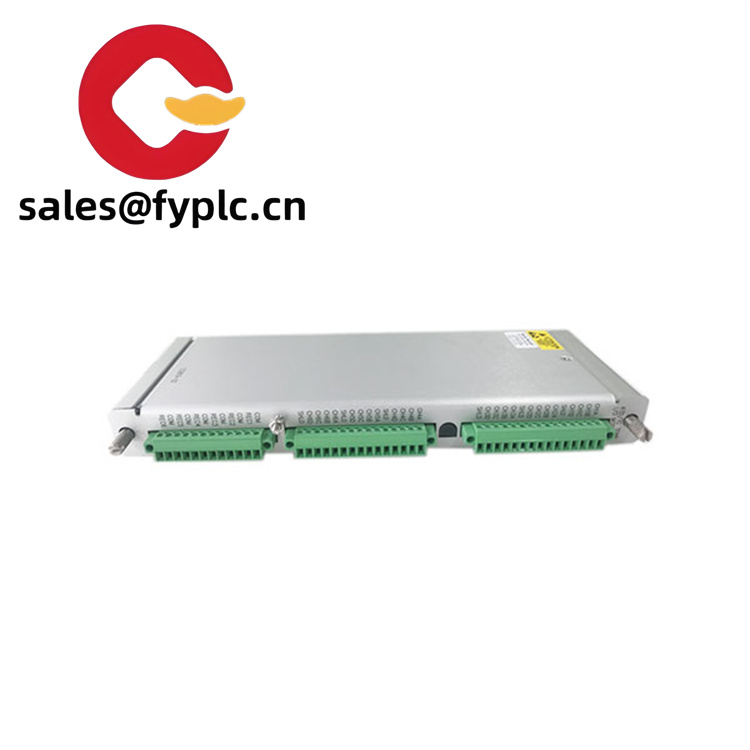

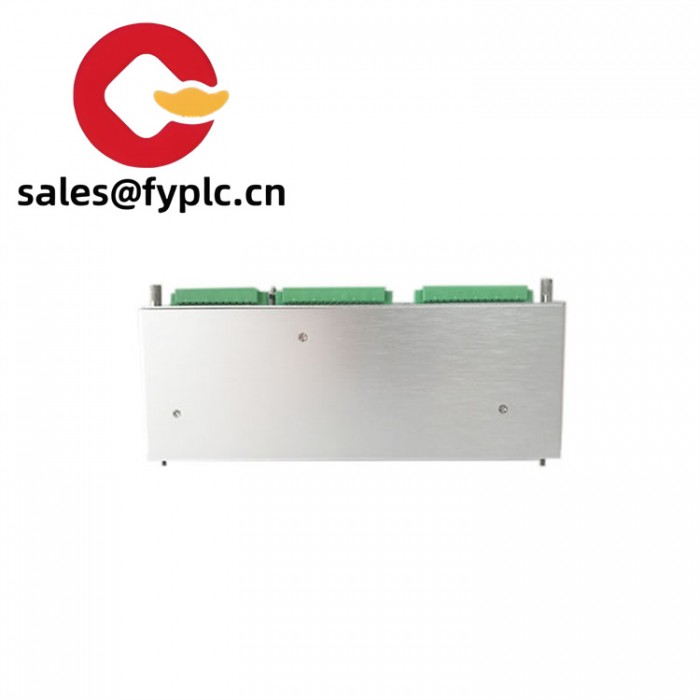

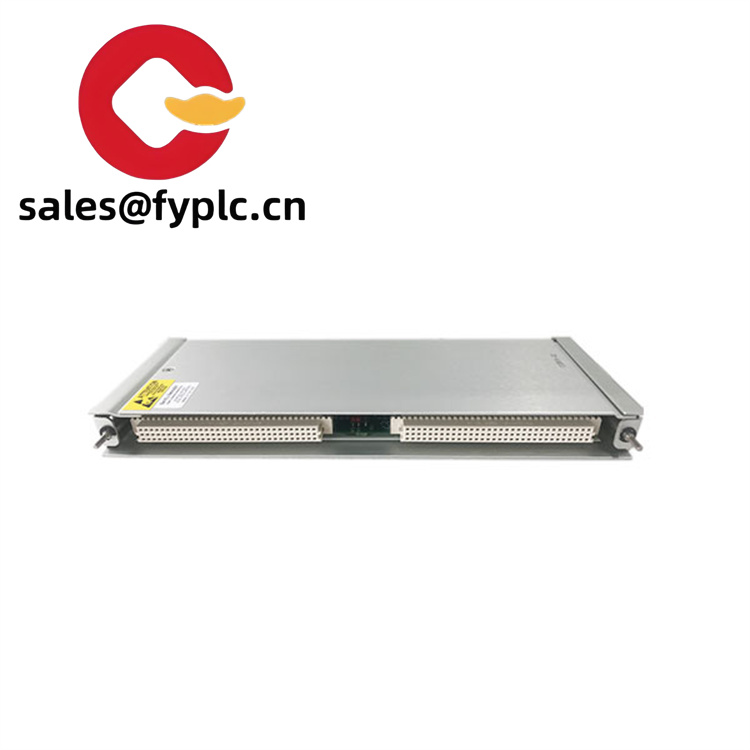

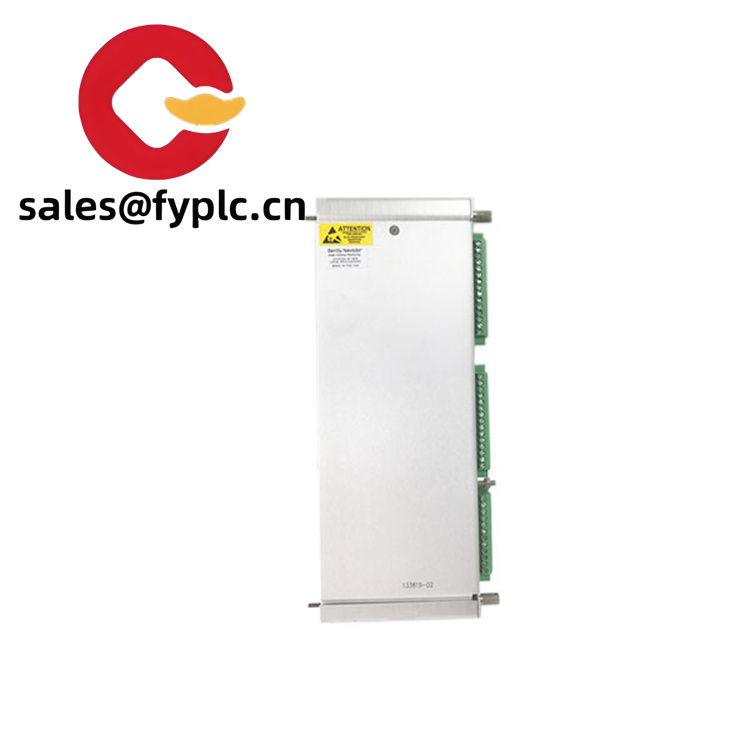

BENTLY 133819-02 Temperature Detector

Be the first to leave a review.
Power Supply 12–24V DC (derived from 3500 rack)
Accuracy ±0.1% of reading (RTD), ±1.5°C (TC)
Resolution 0.1°C (RTD), 0.1°C (TC)
Frequency Response DC–10 Hz
Input Impedance 10 MΩ per lead
Categories:
contact qrcode

Need help?
Email: sales@fyplc.cn
Tel/WhatsApp: +86 173 5088 0093

Share this
Tweet this
Email this

Description

BENTLY 133819-02 Temperature Detector

133819-02

133819-02

The BENTLY 133819-02 (also known as the 3500/61 RTD/TC Temp I/O Module) is a six-channel temperature monitoring module designed by Bently Nevada (now part of Siemens) for the 3500 Machinery Protection System. It specializes in measuring temperature using Resistance Temperature Detectors (RTDs) and Thermocouples (TCs), providing critical data for machinery health assessment and process optimization. Below is a detailed breakdown of its technical specifications, functional capabilities, and practical applications.
Parameter Specification
Model 133819-02 (3500/61-01-00)
Type 6-channel RTD/TC temperature I/O module
Input Types 3-wire RTD (PT100, PT500), Thermocouple (J, K, T, E, R, S, B)
Output 4-20mA analog signals (per channel)
Power Supply 12–24V DC (derived from 3500 rack)
Accuracy ±0.1% of reading (RTD), ±1.5°C (TC)
Resolution 0.1°C (RTD), 0.1°C (TC)
Frequency Response DC–10 Hz
Input Impedance 10 MΩ per lead
Operating Temperature -30°C to +65°C
Physical Dimensions 241.3 × 24.4 × 99.1 mm (9.5 × 0.96 × 3.9 in)
Weight 0.45 kg (1.0 lb)
Compliance CSA/US Class I Division 2, ATEX Zone 2 (optional variants)
133819-02-3

133819-02

The BENTLY 133819-02 is a versatile temperature monitoring module that plays a critical role in modern industrial condition monitoring. Its support for multiple sensor types and seamless integration with the 3500 series make it ideal for safeguarding high-value machinery. While primarily sourced through third-party suppliers, its rugged design and global support network ensure reliable performance in demanding environments. For detailed technical documentation or customized solutions, contact Siemens’ industrial support teams or visit their official resource library.
133819-02-2

133819-02

Multi-Sensor Compatibility

RTD Support: Accepts 3-wire PT100/PT500 sensors for high-accuracy temperature monitoring in industrial heaters and heat exchangers.

Thermocouple Support: Integrates with J/K/T/E/R/S/B type TCs for extreme temperature environments (e.g., steam turbines, furnaces) .

Sensor Diagnostics: Detects open circuits, short circuits, and drift to ensure data integrity.
