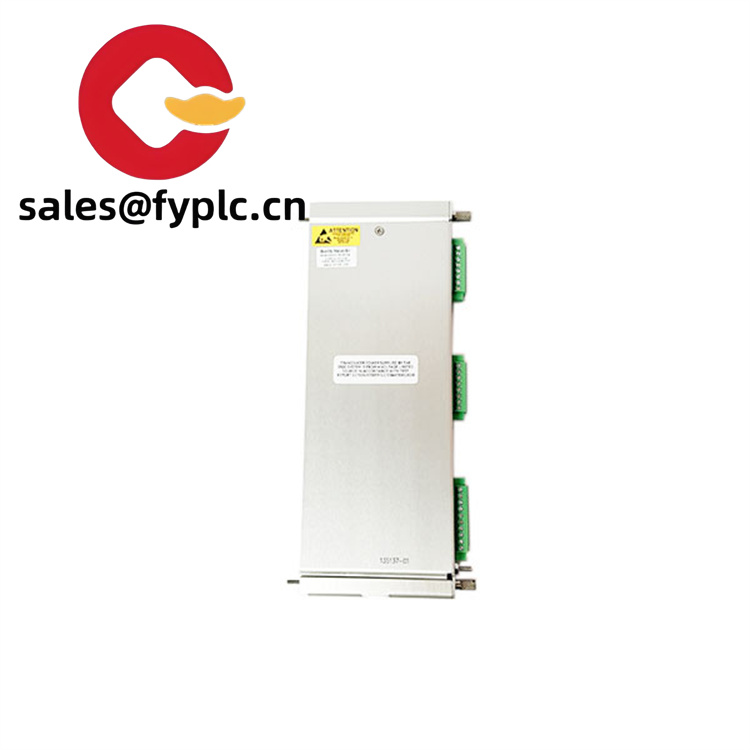

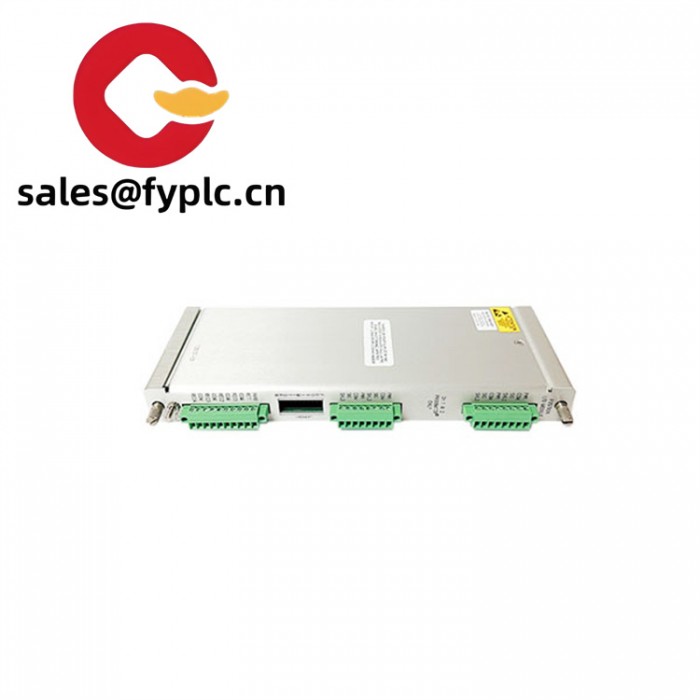

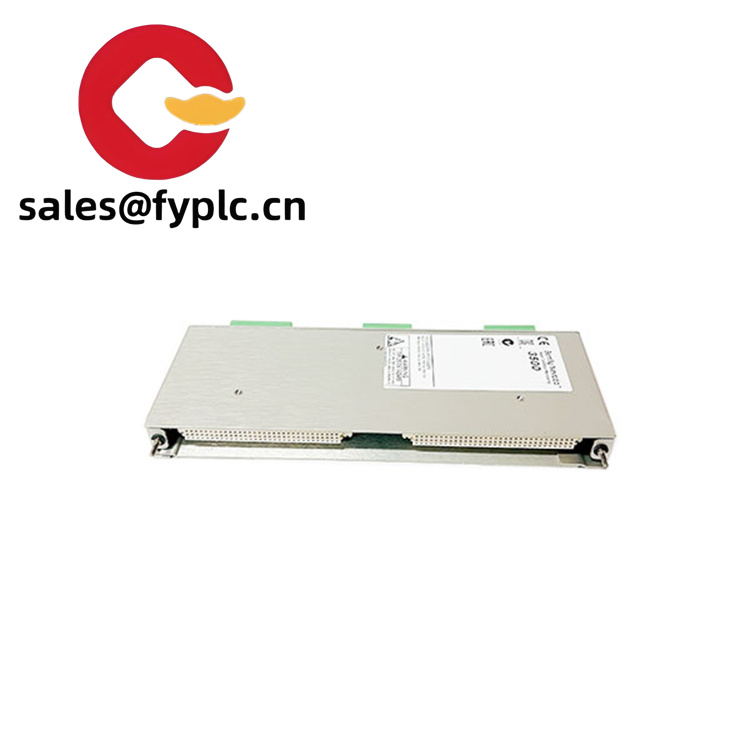

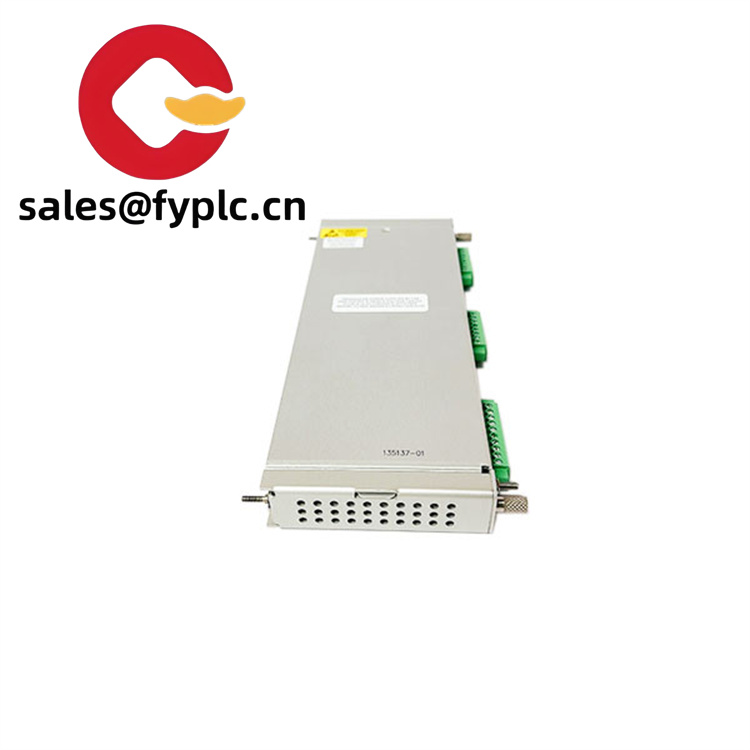

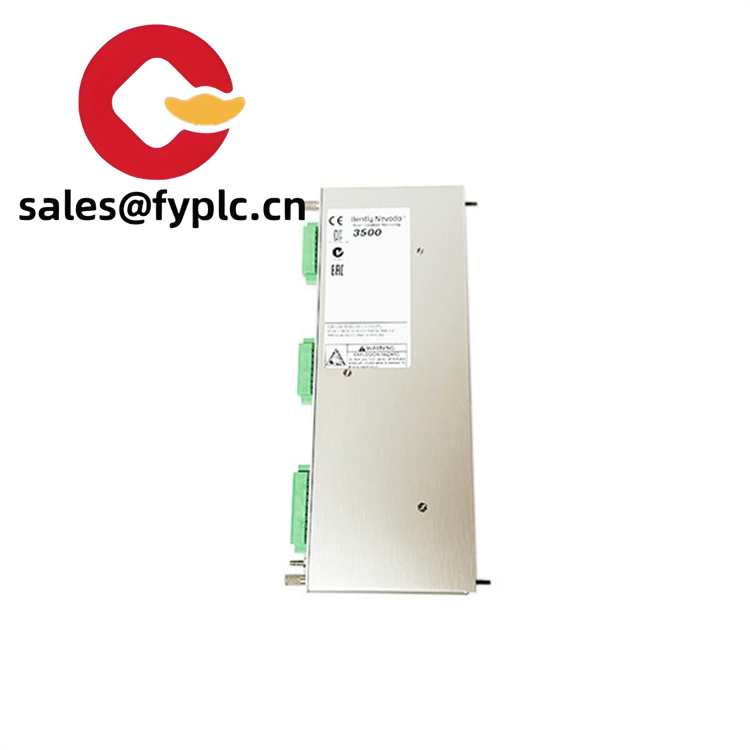

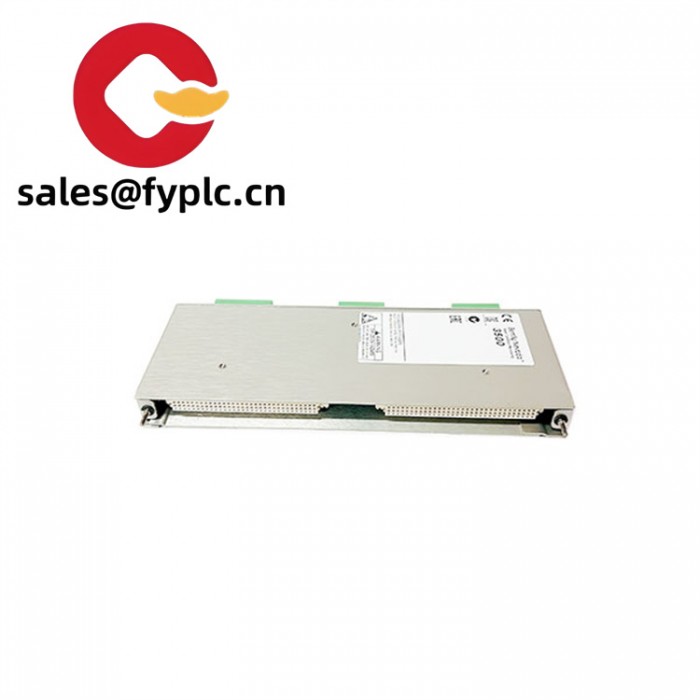

BENTLY 135137-01 Compact Controller Terminal Board



135137-01-5

135137-01

The BENTLY 135137-01 (also known as the 3500/45 Position Monitor) is a four-channel precision position monitoring module designed by Bently Nevada (now part of Siemens) for the 3500 Machinery Protection System. It specializes in measuring linear displacement and shaft position in rotating machinery, providing real-time data for condition monitoring and predictive maintenance. Below is a detailed breakdown of its technical specifications, functional capabilities, and practical applications.
Parameter Specification
Model 135137-01 (3500/45-01-00)
Type 4-channel position monitor
Input 4 independent channels for proximity transducers, LVDTs, or rotary potentiometers
Output 4-20mA analog signals per channel
Power Supply 12–24V DC (derived from 3500 rack)
Accuracy ±0.02% of full scale (FS)
Frequency Response DC–100 Hz (position)
Sensitivity 8 mV/mil (position)
Operating Temperature -40°C to +85°C
Physical Dimensions 241 × 24.4 × 99.1 mm (9.5 × 0.96 × 3.9 in)
Weight 0.44 kg (0.97 lb)
Compliance CSA/US Class I Division 2, ATEX Zone 2 (optional variants)
135137-01-3

135137-01

The BENTLY 135137-01 is a rugged, high-precision position monitoring module that plays a critical role in modern industrial condition monitoring. Its compatibility with the 3500 series and support for multiple sensor types make it ideal for safeguarding high-value machinery. While primarily sourced through third-party suppliers, its proven reliability and global support network ensure seamless integration into industrial workflows. For detailed technical documentation or customized solutions, contact Siemens’ industrial support teams or visit their official resource library.

135137-01-2

135137-01

  • Replacement Modules: Include 3500/45-02-00 (hazardous area variant) and 3500/45-03-00 (redundant outputs).
  • Third-Party Suppliers: Refurbished units available from AX Control, Teknihaus, and Amikon with 12-month warranties 718.
  • Standard Warranty: 12 months from purchase, covering defects in materials/workmanship.
  • Extended Service: Premium packages include predictive analytics and 24/7 technical support from Siemens-certified engineers.
  • Documentation: Access 3500/45 User Manuals (Part No. 161580) and datasheets via Siemens’ industrial automation portal
