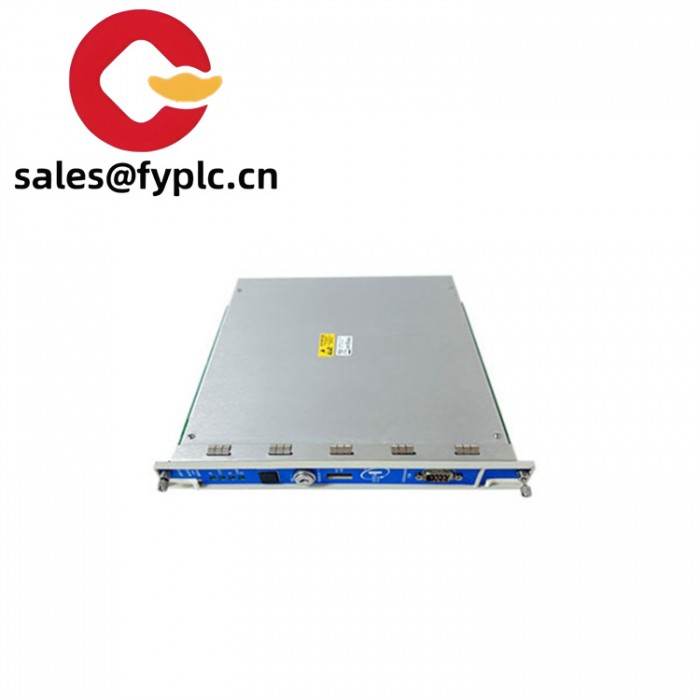

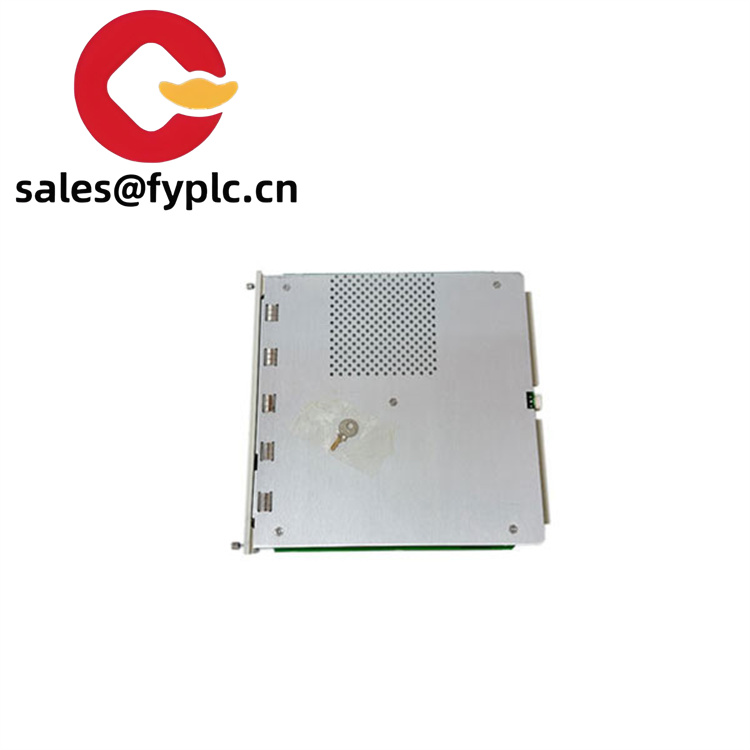

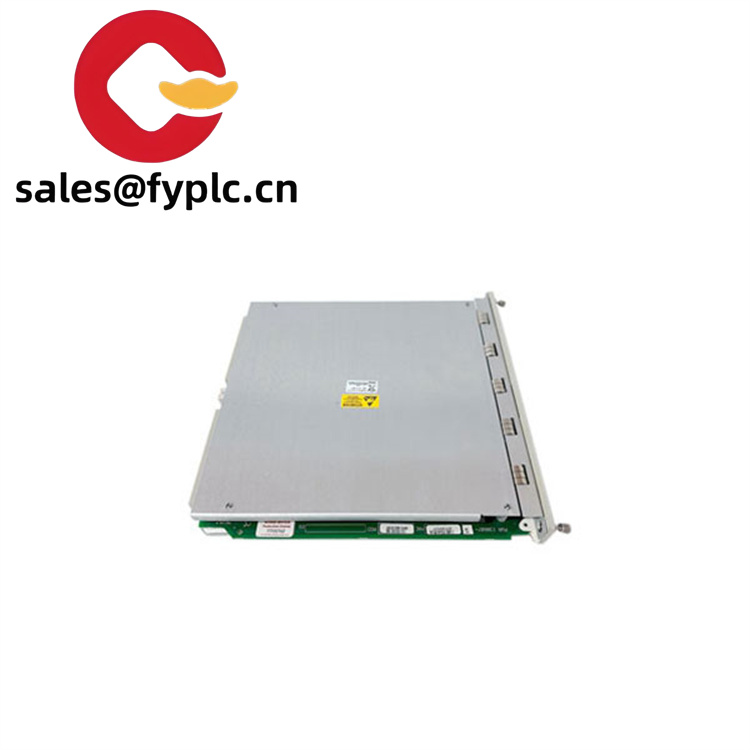

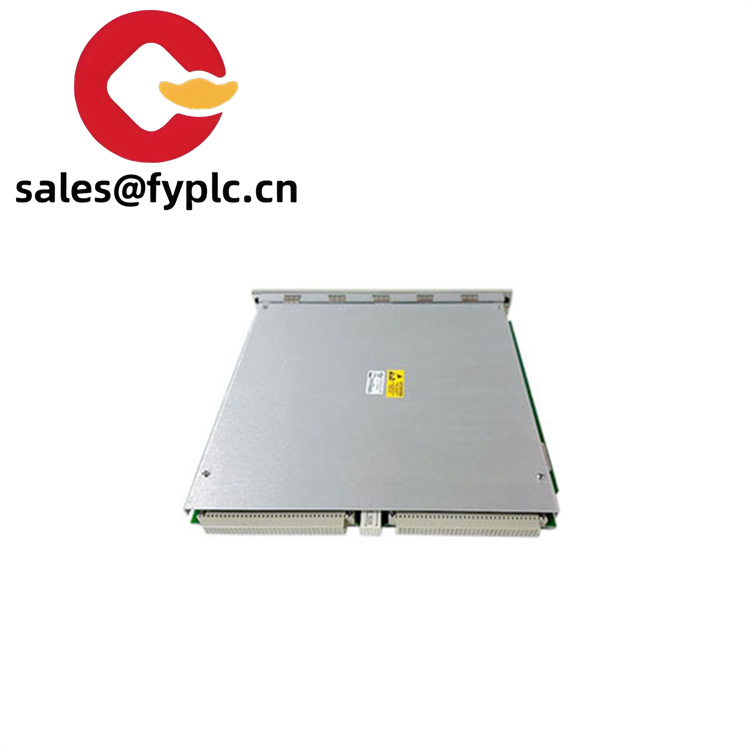

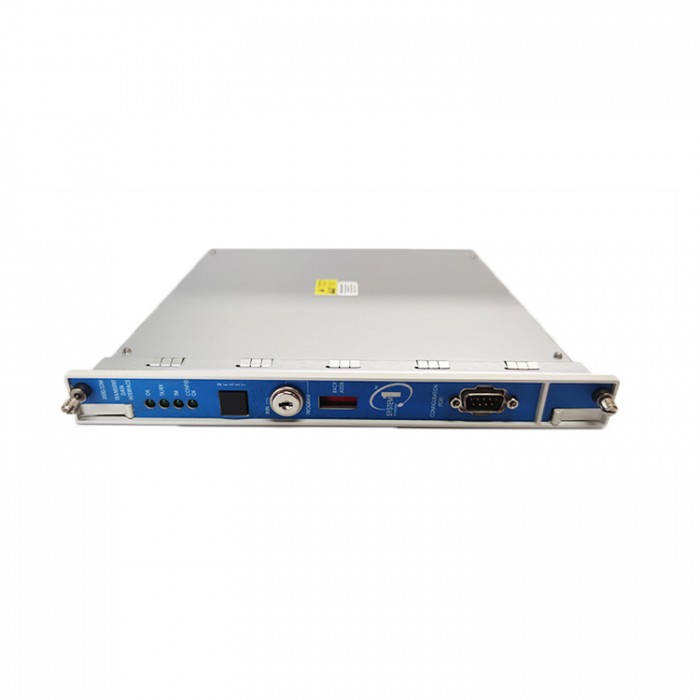

Bently 138607-01 Standard Transient Data Interface Module

138607-01

The Bently 138607 – 01 serves as the standard transient data interface module within the 3500 monitoring system. Its core function is to act as a crucial bridge between the 3500 monitoring setup and compatible software, such as the System 1 condition monitoring and diagnostic software, as well as the 3500 system configuration software. By doing so, it enables smooth data collection, transmission, and processing, which are vital for maintaining the optimal performance of industrial equipment.

Technical Highlights Table：

Label	Specification
Model Number	138607 – 01
Brand	Bently Nevada
Type	Standard Transient Data Interface Module
Input Voltage	[Specify the accurate input voltage range, if available]
Operating Temp	– 40°C to + 70°C
Communication Method	Ethernet
Mounting	Must be installed in the first slot (next to the power supply) of a 3500 rack
Weight	[Specify the weight, if available]
Certifications	[List relevant certifications, if available]
Dimensions	[Length] x [Width] x [Height] mm (if available)
Function	Combines the function of a 3500/20 rack interface module (RIM) with the data collection capability of a communication processor like Tdxnet
Data Handling	Continuously collects steady – state and transient dynamic (waveform) data from M – series monitors (3500/40M, 3500/42M, etc.) and transfers it via an Ethernet link to the host software

138607-01

Functional Strengths & Design Advantages

Engineered with precision, the 138607 – 01 offers several key advantages. It combines the functionality of a 3500/20 rack interface module and the data collection prowess of a communication processor. This integration allows for comprehensive data handling within the 3500 monitoring system. By continuously gathering both steady – state and transient dynamic data from M – series monitors, it provides a holistic view of the machinery’s condition. The Ethernet – based data transfer ensures high – speed and reliable transmission to the host software, enabling real – time analysis and decision – making.

In terms of design, the module is built to endure harsh industrial conditions. Its rugged construction and high – quality materials ensure that it can withstand extreme temperatures, vibrations, and other environmental stressors commonly found in industrial settings. This durability is crucial for maintaining uninterrupted data flow, which is essential for the reliable operation of critical industrial processes.

138607-01

Industrial Use Cases & Value Scenarios

In power generation plants, the Bently 138607 – 01 plays a pivotal role in monitoring the health of turbines and generators. By collecting and transmitting transient data, it can detect sudden changes in the equipment’s performance, such as unforeseen vibrations or electrical fluctuations. These early warnings allow maintenance teams to take immediate corrective actions, preventing potential breakdowns that could lead to costly power outages.

In the petrochemical industry, where machinery operates under high – pressure and high – temperature conditions, the 138607 – 01 helps in ensuring the safe and efficient operation of pumps, compressors, and other critical equipment. The continuous data collection and real – time transmission enable plant operators to optimize maintenance schedules, reducing the risk of unplanned shutdowns and production losses.

Setup & Service Guidance

Installing the Bently 138607 – 01 requires strict adherence to specific guidelines. It must be placed in the first slot adjacent to the power supplies within a 3500 rack. When connecting the module to the power source and establishing the Ethernet link for data transfer, it is essential to follow the wiring diagrams provided in the product manual precisely. This ensures proper functioning and minimizes the risk of incorrect connections that could cause malfunctions.
