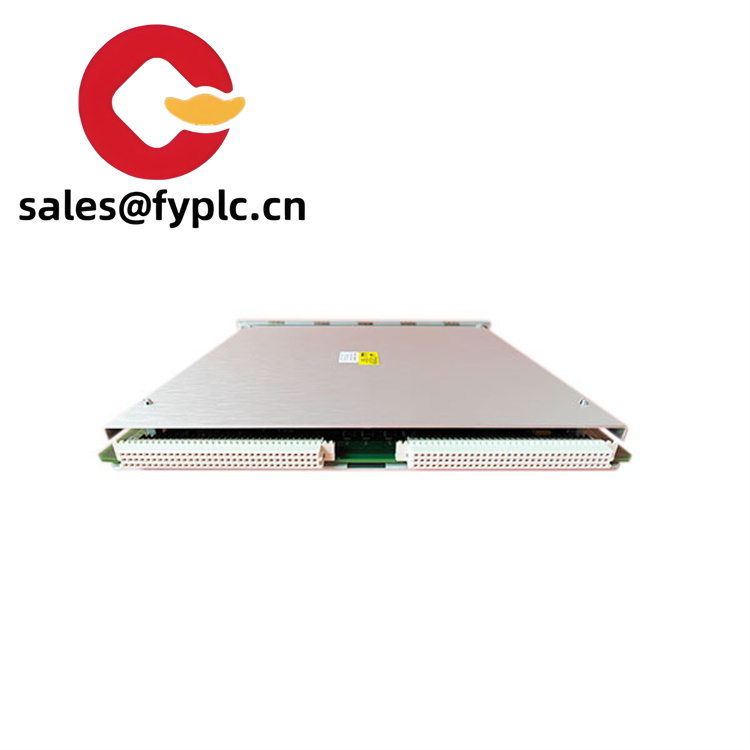

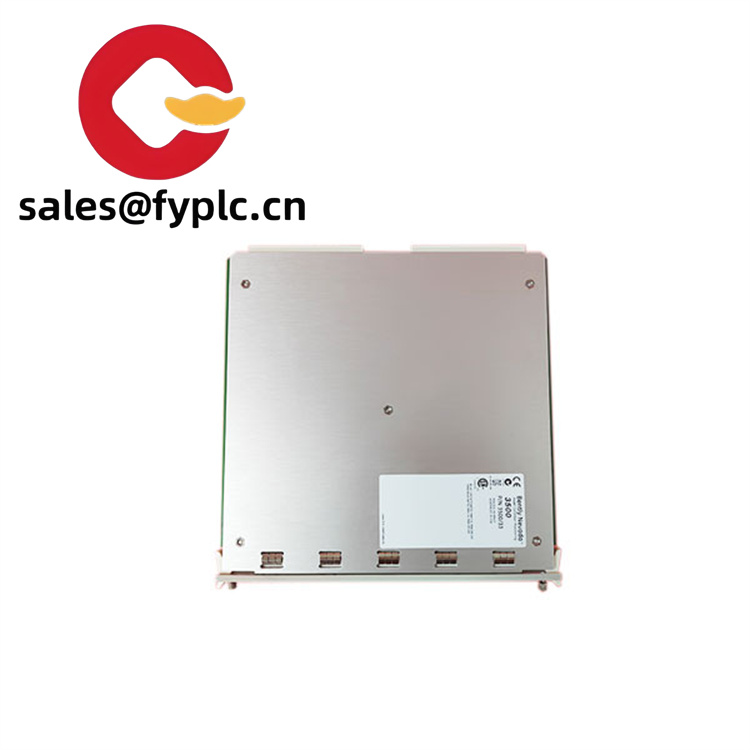

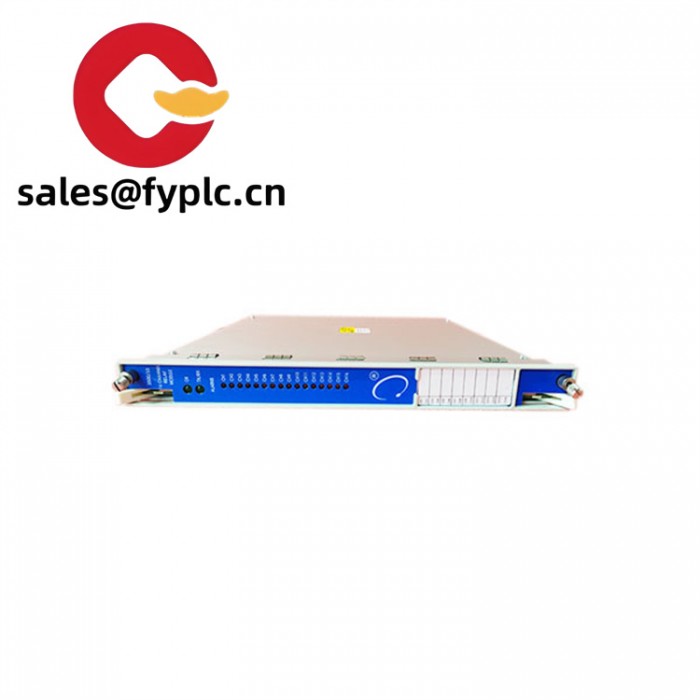

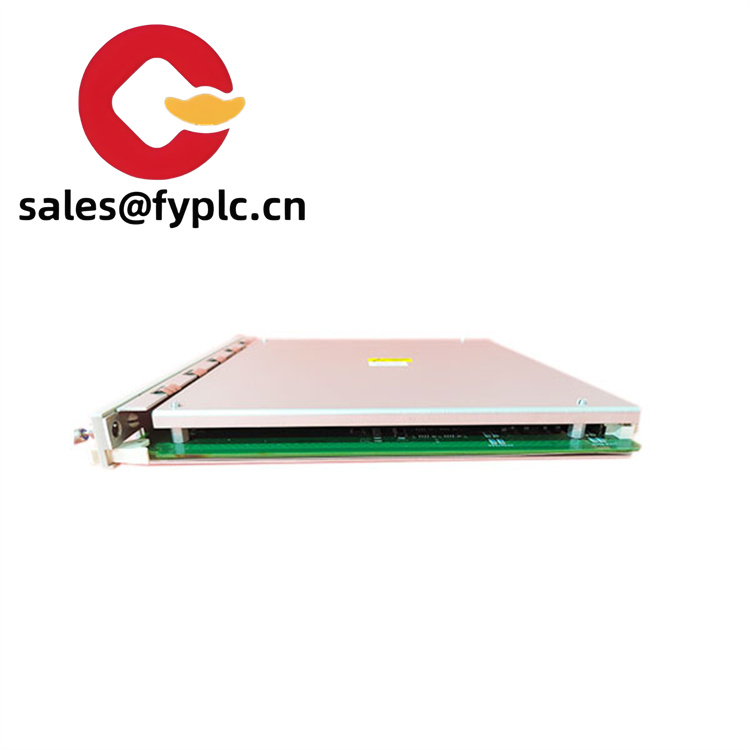

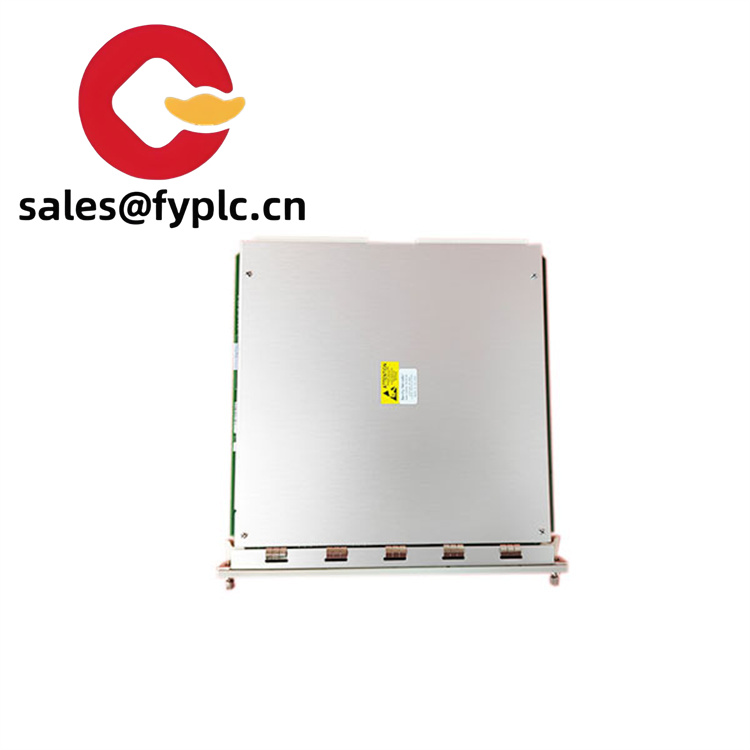

Bently 149986-01 Relay Control Module Monitor Channel
149986-01
The BENTLY 149986-01 (also known as the 3500/33-01-00 16-Channel Relay Module) is a high-reliability relay control module designed by Bently Nevada (now part of Siemens) for the 3500 Machinery Protection System. It serves as a critical component for converting monitoring system data into actionable control signals, such as triggering alarms, shutdowns, or process adjustments in industrial machinery. Below is a detailed breakdown of its technical specifications, functional capabilities, and practical applications.
| Parameter |
Specification |
| Model |
149986-01 (3500/33-01-00) |
| Type |
16-channel relay output module |
| Output |
16 independent SPDT (Single-Pole Double-Throw) electromechanical relays with arc suppressors 16 |
| Contact Rating |
5A at 250VAC or 30VDC (with voltage derating in hazardous areas) 16 |
| Input Voltage |
24V DC (derived from 3500 rack) |
| Response Time |
≤0.5 seconds |
| Power Consumption |
5.8W typical |
| Operating Temperature |
-40°C to +85°C |
| Physical Dimensions |
241.3 × 107 × 43 mm (9.5 × 4.2 × 1.7 in) |
| Weight |
1 kg (2.2 lb) |
| Compliance |
IEEE 1588 PTP, ATEX Zone 2, CSA Class I Division 2 (optional variants) 116 |
149986-01
The BENTLY 149986-01 is a versatile relay module that bridges monitoring systems and control actions in critical industrial environments. Its 16-channel design, rugged construction, and compatibility with the 3500 series make it ideal for safeguarding high-value machinery. While primarily sourced through third-party suppliers, its proven reliability and global support network ensure seamless integration into industrial workflows. For detailed technical documentation or customized solutions, contact Siemens’ industrial support teams or visit their official resource library.
149986-01
Relay Control
-
- 16 Independent Channels: Each relay can be configured to control external devices (e.g., pumps, valves, alarms) based on input signals from the 3500 system.
- Voting Logic: Supports AND/OR logic programming to trigger outputs based on combinations of alarm states (e.g., requiring two out of three sensors to trip before activating a relay) 216.
- Alarm Drive Logic: Integrates with monitor channels’ alert/danger statuses for automated fault responses.
