Description

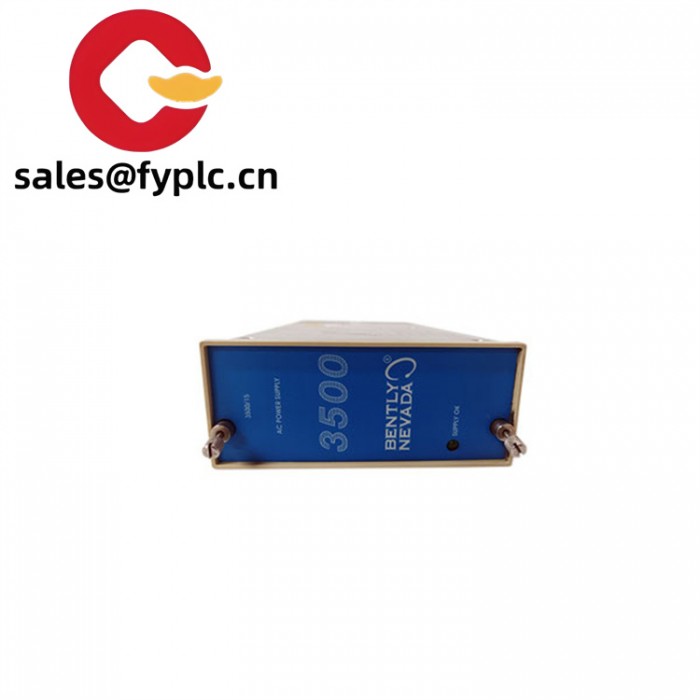

Bently 3500-15 System Control Module Backboard

3500-15-3

The Bently 3500 – 15 is a power module that serves as the lifeblood for numerous industrial setups. It’s not just an ordinary power supplier; it’s engineered to provide stable and precise power for a wide range of industrial applications. Whether it’s powering the complex machinery in a manufacturing plant, supporting the critical monitoring systems in a power generation facility, or enabling the smooth operation of equipment in an oil and gas installation, the Bently 3500 – 15 is up to the task. It acts as the power backbone, ensuring that all connected devices and modules function optimally.

Label	Specification
Model Number	3500 – 15
Brand	Bently
Type	Power Module
Input Voltage	Multiple options: 85 – 132 Vac rms (low – voltage AC), 175 – 264 Vac rms (high – voltage AC), 88 – 140 Vdc (high – voltage DC), 20 – 30 Vdc (low – voltage DC)
Operating Temp	– 30°C to + 65°C (-22°F to +150°F)
Mounting	Must be installed in a specially designed slot on the left side of the 3500 frame
Weight	1.39 kg
Certifications	Complies with standards like CSA/NRTL/C: Class 1 Division 2, Groups A – D; meets electromagnetic compatibility standards such as EN50081 – 2, EN55011
Dimensions	120.7mm x 50.8mm x 251.5mm
Output Voltage	Offers multiple DC output options like +8.5V, +21V, -31V to meet different 3500 module power demands
Output Current and Power	Varies with input voltage; e.g., for 175 – 254Vac input, max current is 2.3A rms; for 20 – 30 Vdc input, max current can reach 10.0A
Humidity Tolerance	95% non – condensing

The Bently 3500 – 15 power module stands out for several reasons in real – world industrial scenarios. Its build quality is exceptional, constructed with high – grade materials that can endure the harshest industrial environments. From the high – temperature and high – humidity conditions in a paper mill to the dusty and vibrating settings in a mining operation, this module maintains its integrity. It has been engineered to offer a wide input voltage range, making it highly adaptable to different power sources available in various industrial locations. This adaptability is a significant advantage as it reduces the need for complex voltage – conversion setups. Additionally, the module provides stable output voltages, ensuring that the connected industrial devices receive a consistent power supply, which is crucial for their accurate and reliable operation.

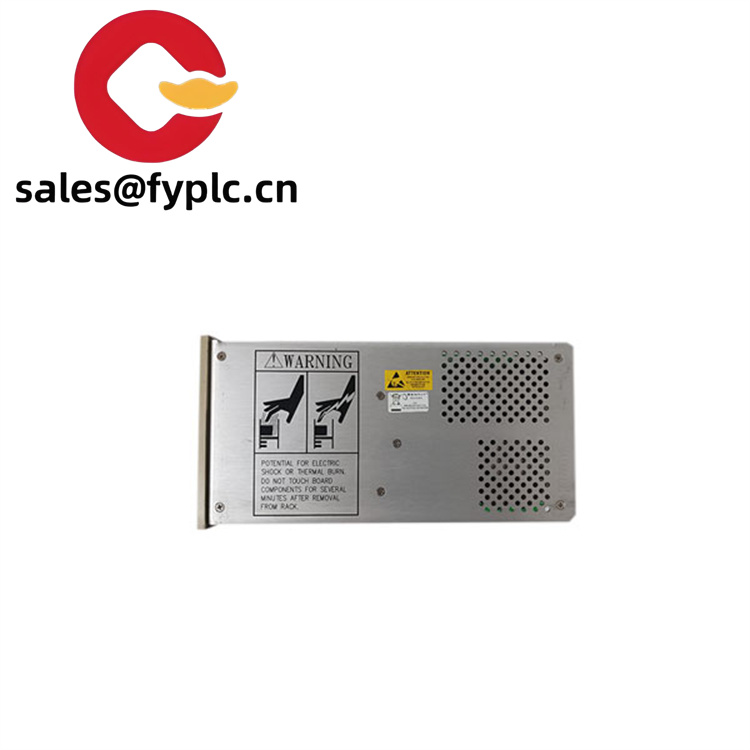

3500-15

​

The Bently 3500 – 15 finds extensive use in multiple industries. In the manufacturing industry, it powers the sensors and control modules in automated production lines, ensuring that the machinery operates precisely and without disruptions. For instance, in a car manufacturing plant, it supplies power to the robotic arms’ control systems, allowing for accurate and efficient assembly. In the power generation sector, it plays a vital role in powering the vibration monitoring systems of turbines. By providing stable power, it enables these systems to accurately detect any abnormal vibrations, which can be an early sign of turbine problems. This early detection helps in preventing major breakdowns, thus enhancing the overall reliability of the power generation process. In the oil and gas industry, the Bently 3500 – 15 powers the monitoring equipment for pumps and compressors. These devices are critical for the transportation and processing of oil and gas, and the stable power from this module ensures their continuous and safe operation.

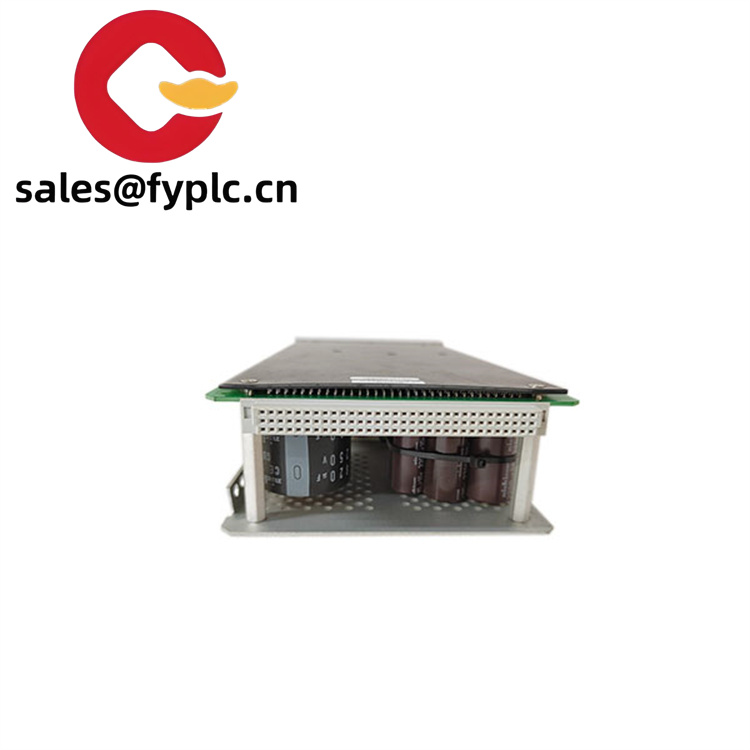

3500-15

​

Some related models to the Bently 3500 – 15 include the Bently 3500 – 22, which is a communication gateway module that can work in tandem with the 3500 – 15 to enable data transfer between different parts of the industrial control system. The Bently 3500 – 42 is a vibration monitoring module that can be powered by the 3500 – 15, allowing for comprehensive machinery health monitoring. The Bently 3500 – 53 is a displacement monitoring module, and when used in combination with the 3500 – 15, it helps in accurately measuring the position of machinery components. The Bently 3500 – 60 is a system monitor module that can be integrated with the 3500 – 15 – powered setup to provide overall system status information. The Bently 3500 – 70 is a speed/torque monitor module, and the stable power from the 3500 – 15 ensures its accurate operation for monitoring rotational speed and torque in industrial machinery.
