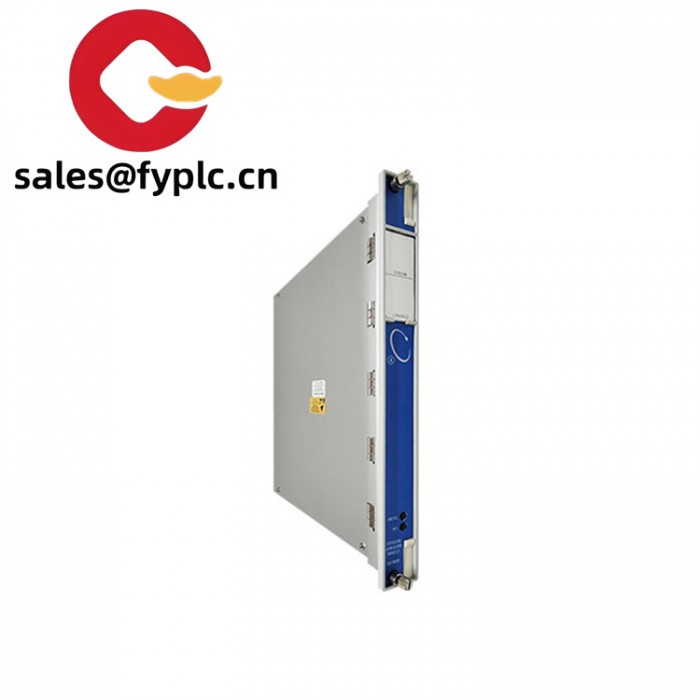

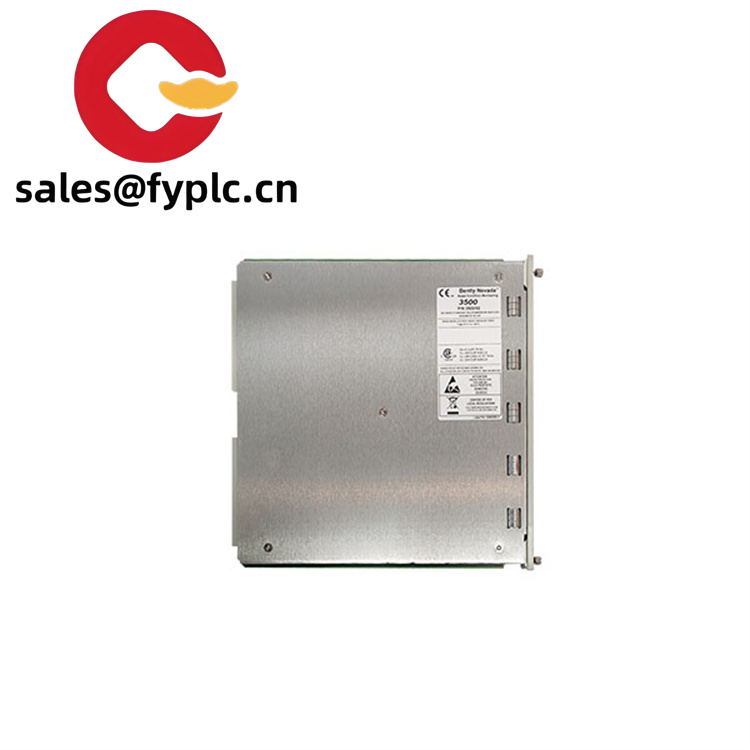

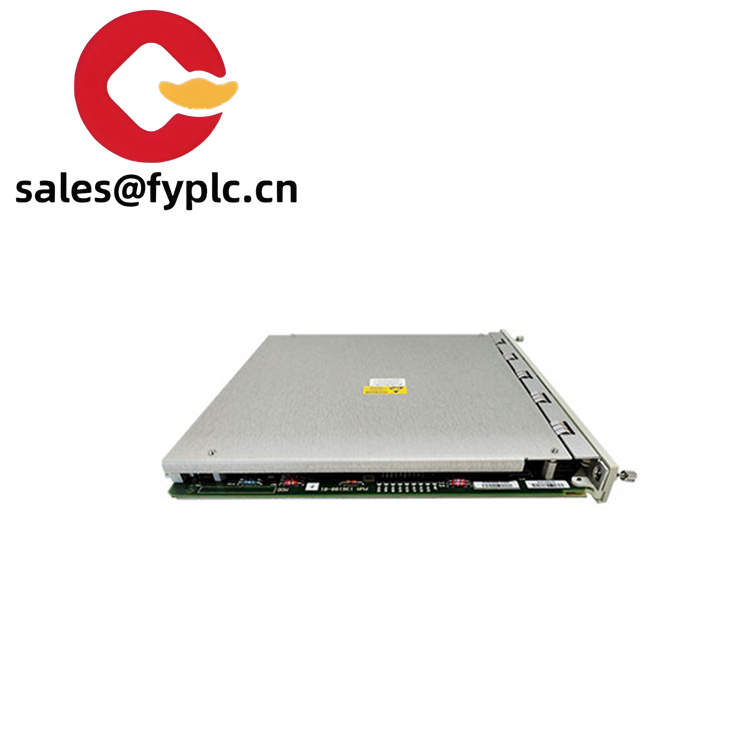

BENTLY 3500-92 Terminal Board Front Card and Rear Card Communication Gateway Module
3500-92
The BENTLY 3500 – 92 is a communication gateway module, and its primary mission is to break down communication barriers. It offers an extensive range of communication capabilities, acting as a bridge between the monitoring values and statuses of all racks within the BENTLY 3500 system and external process control and other automation systems. By leveraging both Ethernet TCP/IP and serial (RS232/RS422/RS485) communication capabilities, it enables the integration of data from various sources, ensuring that all components of an industrial ecosystem can “talk” to each other. This is crucial for industries where real – time data sharing and coordinated control are essential for smooth operations.
| Label |
Specification |
| Model Number |
3500 – 92 |
| Brand |
Bently Nevada |
| Type |
Communication Gateway Module |
| Input Voltage |
12 – 24 V DC |
| Operating Temp |
– 20 °C to + 60 °C ( – 4 °F to + 140 °F ) |
| Communication Method |
Ethernet TCP/IP, Serial (RS232/RS422/RS485) |
| Mounting |
Designed to be integrated into the BENTLY 3500 system’s standard mounting setup |
| Weight |
[Specify weight if available] |
| Certifications |
Complies with relevant industrial communication and safety standards |
| Dimensions |
[Provide length x width x height dimensions if available] |
| IP Rating |
IP67 (Dust – tight and protected against temporary immersion in water) |
| Protocols Supported |
Modbus (both serial and TCP/IP variants), Bently Nevada proprietary protocol |
| Data Transfer Rate |
Up to 1 Mbps |
3500 – 92
The BENTLY 3500 – 92 has been crafted with a focus on delivering top – notch performance in real – world industrial environments. One of its most remarkable features is its support for multiple communication protocols. It can handle Modicon Modbus over serial communication, which is widely used in industrial settings for its simplicity and reliability. Additionally, it supports Modbus/TCP, an Ethernet – based version of Modbus that enables faster data transfer over larger distances. The proprietary Bently Nevada protocol further enhances its compatibility with the 3500 system’s software packages, ensuring seamless communication for configuration and data acquisition tasks.
The module also offers a high – speed data transfer rate of up to 1 Mbps. This rapid data exchange is essential in industries where real – time monitoring and control are critical. For example, in a fast – paced manufacturing plant, the
BENTLY 3500 – 92 can quickly transmit vibration and temperature data from machinery sensors to the control system, allowing for immediate response to any potential issues.
3500 – 92
Build quality is another area where the
BENTLY 3500 – 92 shines. With an IP67 rating, it is dust – tight and can withstand temporary immersion in water. This makes it suitable for deployment in harsh industrial environments, such as those found in mining operations, chemical plants, or outdoor power generation facilities. Its Ethernet connection, which uses an RJ45 connector for 10BASE – T star – configured Ethernet networks, is both reliable and easy to set up. Moreover, the
BENTLY 3500 – 92 features a configurable Modbus register utility.
