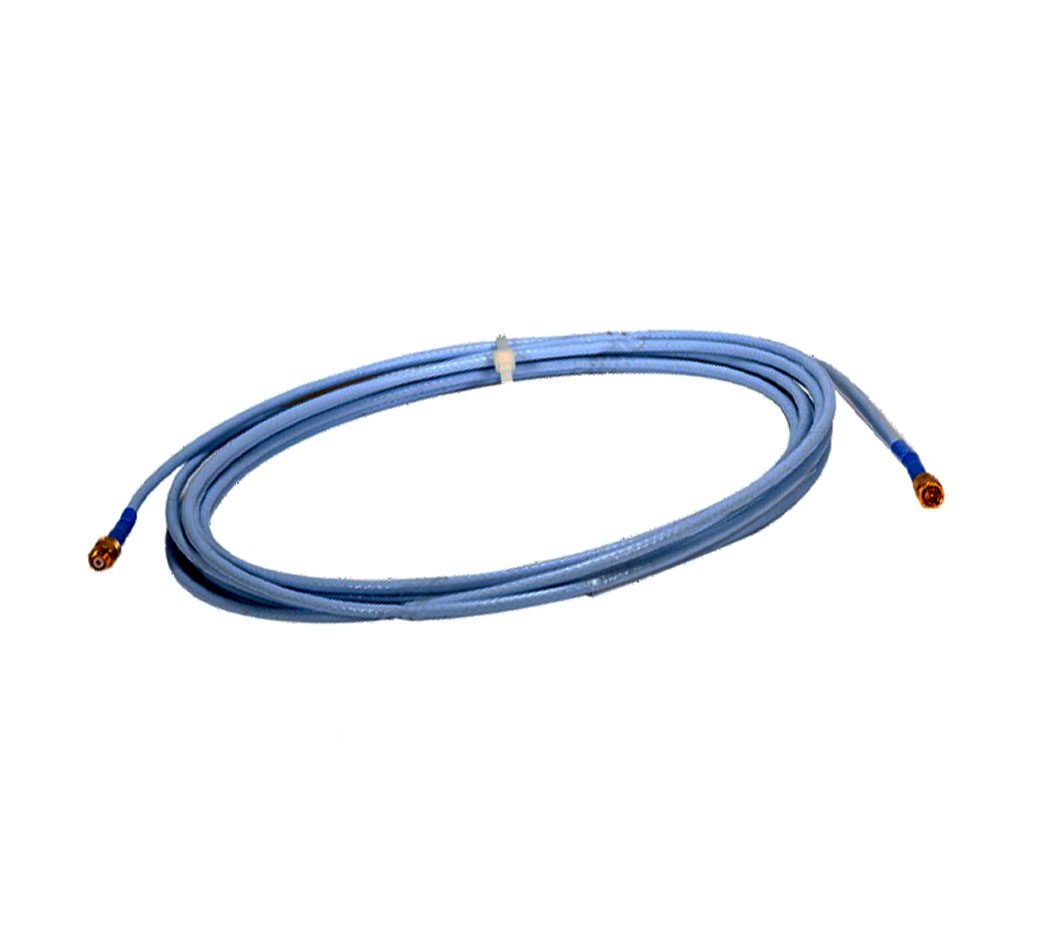

Bently Nevada 330130-045-00-05 3300 XL 8 mm Proximity Probe – Reliable shaft vibration and position measurement (4.5 m integral cable)

The 330130-045-00-05 is part of the Bently Nevada 3300 XL 8 mm proximity transducer system, used worldwide on turbines, compressors, pumps, and gearboxes. It’s the probe portion with an 8 mm tip and an integral 4.5 m cable, designed to pair with a 3300 XL extension cable and a matching 3300 XL Proximitor sensor. From my experience, this setup gives you stable, repeatable measurements for both dynamic vibration and static shaft position in demanding environments.

Company’s Order Placement Process and Guarantees

• Warranty: 365 days
• Delivery: 1 week when in stock; no more than one month at the latest
• Payment: 50% advance payment; full payment before delivery
• Express options: FedEx, UPS, DHL

Key Features

• 8 mm probe tip – Suitable for standard industrial targets and clearances on mid‑to‑large rotating machinery.
• Integral 4.5 m cable – The “-045” length simplifies routing to the junction box or Proximitor via an extension cable.
• Part of the 3300 XL system – Works with matching extension cable and 3300 XL Proximitor sensor for a complete eddy‑current transducer chain.
• Non-contact measurement – Captures dynamic vibration and static shaft position without mechanical wear.
• Stable scaling – With the appropriate 3300 XL Proximitor, you get the standard 200 mV/mil (7.87 V/mm) sensitivity used in most Bently Nevada installations.
• Rugged for harsh areas – The 3300 XL series is known for temperature tolerance and mechanical robustness on high-speed machines.
• Backwards compatibility – In many cases, it’s drop-in compatible with existing 3300 XL systems in the field.

Technical Specifications

Brand / Model	Bently Nevada 330130-045-00-05 (3300 XL 8 mm Proximity Probe)
HS Code	903180
Power Requirements	Powered via 3300 XL Proximitor sensor (nominal −24 Vdc system); probe itself is passive
Dimensions & Cable	8 mm probe tip; integral 4.5 m cable (suffix “-045”)
Operating Temperature (probe)	Typically −51 °C to +177 °C for 3300 XL probes
Signal I/O	Eddy‑current proximity system; with Proximitor provides dynamic vibration (mV) and DC gap; standard sensitivity ~200 mV/mil (7.87 V/mm)
Communication Interfaces	Analog measurement chain (no digital comms at the probe)
Installation Method	Threaded mounting into probe holder or bracket; non‑contact to target; initial gap set per 3300 XL guidelines (typically ~1 mm)

Application Fields

You’ll typically see the 330130-045-00-05 used for:

• Radial vibration on steam and gas turbines, centrifugal compressors, and large motors
• Axial thrust position on turbines and multi-stage pumps (with appropriate mounting)
• Shaft runout and phase reference when paired with Keyphasor configurations
• Condition monitoring and protection systems in refineries, petrochemical plants, and power generation

Advantages & Value

• Field-proven reliability – The 3300 XL line has a strong track record in continuous-duty critical machinery.
• System compatibility – Works with existing 3300 XL extension cables and Proximitor sensors to maintain calibration and scaling.
• Lower lifecycle cost – Non-contact sensing minimizes wear; the standard sensitivity simplifies spares across assets.
• Supportable choice – Easy to integrate with common protection/monitoring racks (e.g., 3500 series) and portable analyzers via buffered outputs.

“We installed the 330130 probes on a two‑casing compressor train. Gap checks were straightforward, and the vibration trends stabilized right away. It seems to be less sensitive to temperature swings than the older probes we had.” — Maintenance Supervisor, petrochemical plant

Compatible Accessories and Related Models

• 3300 XL Extension Cables – Common lengths (for example 5 m, 7 m, 9 m) to complete the specified system length.
• 3300 XL Proximitor Sensor (5 mm/8 mm) – Provides the powered conditioning and standard 200 mV/mil scaling for vibration and gap outputs.
• Mounting Hardware – Probe holders, brackets, and sleeve adapters to achieve the correct mechanical fit and target coverage.

You might notice that the “-05” suffix is often associated with specific build/approval options. If your site requires particular agency approvals, we’ll verify the exact variant before shipping.

Installation & Maintenance

• Environment – Mount in a rigid probe holder; avoid vibration of the holder itself. Ensure good ventilation around the Proximitor housing if panel‑mounted.
• Wiring – Route the probe cable separately from high‑power lines; observe minimum bend radius; ground the shield at the Proximitor end only.
• Gap/Calibration – Set the nominal gap using the DC output from the Proximitor (commonly around −10 Vdc corresponds to ~1 mm). Verify linear range and clearance.
• Safety – De‑energize associated machinery protection circuits before changing sensors. Use correct thread engagement and locking to prevent probe movement.
• Routine checks – Periodically confirm gap voltage, inspect cable integrity, and clean the probe tip if contamination is present. No firmware updates apply to probes.

Quality & Certifications

• Manufactured under ISO 9001 quality systems
• CE marking and RoHS compliance typically available for 3300 XL family builds
• Hazardous area approvals may be available depending on exact suffix; we’ll confirm per order
