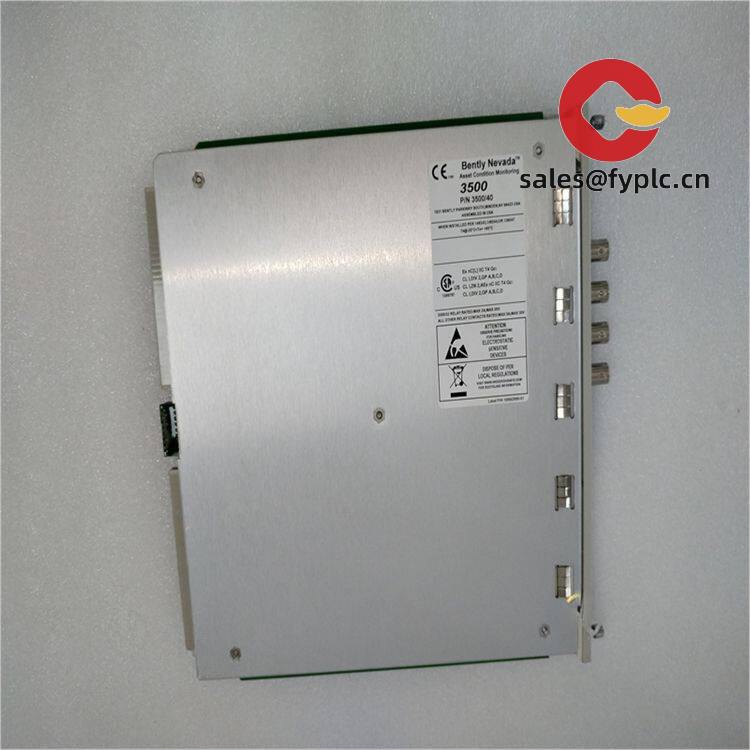

Bently Nevada 3500/20-01-01-00 Rack Interface Module — Framework communications for the 3500 protection system

The Bently Nevada 3500/20 Rack Interface Module (RIM) serves as the communication bridge for a 3500 rack, linking the monitoring system to configuration software and external systems. From my experience, the 3500/20 is a solid choice for plants standardizing on serial connectivity or maintaining installed bases that use 3500/90 or 3500/91 communication processors for Ethernet/Modbus integration. It typically occupies the leftmost position of the rack and manages rack identification, health status, and communications, without changing how individual monitoring cards operate.

You might notice that facilities running legacy serial links prefer 3500/20 for its predictable behavior and straightforward setup, while newer builds often move to the 3500/22 TDI. If you’re planning phased upgrades, the 3500/20-01-01-00 seems to be the practical “keep-it-running” option with minimal risk.

Our Order Process & Guarantees

• Warranty: 365 days
• Lead time: 1 week if in stock; no more than one month at the latest
• Payment: 50% advance payment; full payment before delivery
• Shipping: FedEx, UPS, DHL (expedited options available)

Key Features

• Rack communications hub: Provides the primary serial interface for a 3500 rack to engineering workstations and external systems.
• Supports system status and configuration: Exposes rack OK, module status, and configuration access so maintenance teams can work faster.
• Legacy system compatibility: Works with 3500/90 and 3500/91 communication processors for Ethernet/Modbus connectivity when required.
• Straightforward installation: Installs in the leftmost rack position; no field rewiring of monitoring channels.
• Stable in harsh environments: Designed for industrial panels and control rooms where temperature and electrical noise are typical concerns.

Technical Specifications

Brand / Model	Bently Nevada 3500/20-01-01-00 (Rack Interface Module)
HS Code	9032.89 (Automatic regulating or controlling instruments, other)
Power Requirements	Powered from the 3500 rack backplane; no external supply (supplied by the rack power modules)
Dimensions & Weight	Single-slot, full-height 3500 module; approx. 0.5 kg (typical)
Operating Temperature	Typically 0 to +65°C; 5–95% RH non-condensing
Signal I/O Types	Serial interface (RS-232/RS-422); rack status and control via backplane
Communication Interfaces	Local serial connection to configuration software; interoperates with 3500/90 or 3500/91 for Ethernet/Modbus
Installation Method	Plugs into the leftmost slot of the 3500 rack; secure with front-panel latches

Application Fields

Commonly deployed in oil & gas, petrochemical, and power generation where rotating assets need continuous protection and data visibility:

• Compressors, steam/gas turbines, pumps, and generators using Bently Nevada 3500 monitoring cards
• Control rooms and MCC panels with serial links to maintenance workstations
• Sites that still rely on 3500/90 or 3500/91 for Ethernet access but prefer a dependable rack-level interface

A maintenance engineer told us their team swapped in a 3500/20 during a short outage on a steam turbine train and were back online in under an hour—no rewiring or channel card changes needed.

Advantages & Value

• Reliability: Proven, stable behavior in mature 3500 architectures; minimal surprise factors during turnarounds.
• Compatibility: Works seamlessly with existing 3500 racks and communication processors; smooth fit for serial-centric plants.
• Lifecycle flexibility: Supports staged upgrades—keep the 3500/20 now and migrate to 3500/22 TDI later if Ethernet-first workflows are needed.
• Cost control: Avoids unnecessary system changes; reduces engineering time for plants that only need serial connectivity.
• Support: We provide configuration guidance and replacement planning, typically shortening commissioning time.

Installation & Maintenance

• Panel/cabinet: Install in a clean, ventilated control cabinet or 19-inch rack enclosure; maintain ambient within specified temperature.
• Wiring & grounding: Use shielded serial cables; ground shields at one end to reduce noise. Keep power and communication cables segregated.
• Placement: Fit the module into the leftmost rack slot; align guides and fully seat before fastening. In most cases, isolate rack power before replacing the RIM.
• Routine care: Periodically verify communications, clean dust from the front panel, and review event logs. Back up configuration after any changes.
• Firmware/config: Keep configuration files managed under change control; apply firmware updates according to site validation practices.

Recommended Supporting Modules

• Bently Nevada 3500/90 Communication Processor: Adds Ethernet/Modbus TCP connectivity for racks using the 3500/20.
• Bently Nevada 3500/91 EGD/Modbus Processor: For plants standardizing on Ethernet Global Data or Modbus integration.
• Bently Nevada 3500/22 TDI: Modern alternative that combines RIM and communications in one module; useful for Ethernet-first systems.
• Bently Nevada 3500/15 Power Supply: Redundant rack power; choose high-voltage AC or 24 Vdc versions per site standard.
• Bently Nevada 3500/05 Rack: Standard rack chassis for mounting monitoring and interface modules.

Quality & Certifications

• Certifications: CE marking; UL/cUL and CSA approvals are typical for the 3500 platform; RoHS compliance in many configurations.
• Reliability standards: Designed for industrial environments and continuous service.
• Warranty: 365-day coverage from us on this unit.

If you’re replacing a failed RIM or planning a like-for-like spare, the 3500/20-01-01-00 keeps your framework communications consistent—usually the fastest path back to a healthy rack without re-engineering.
