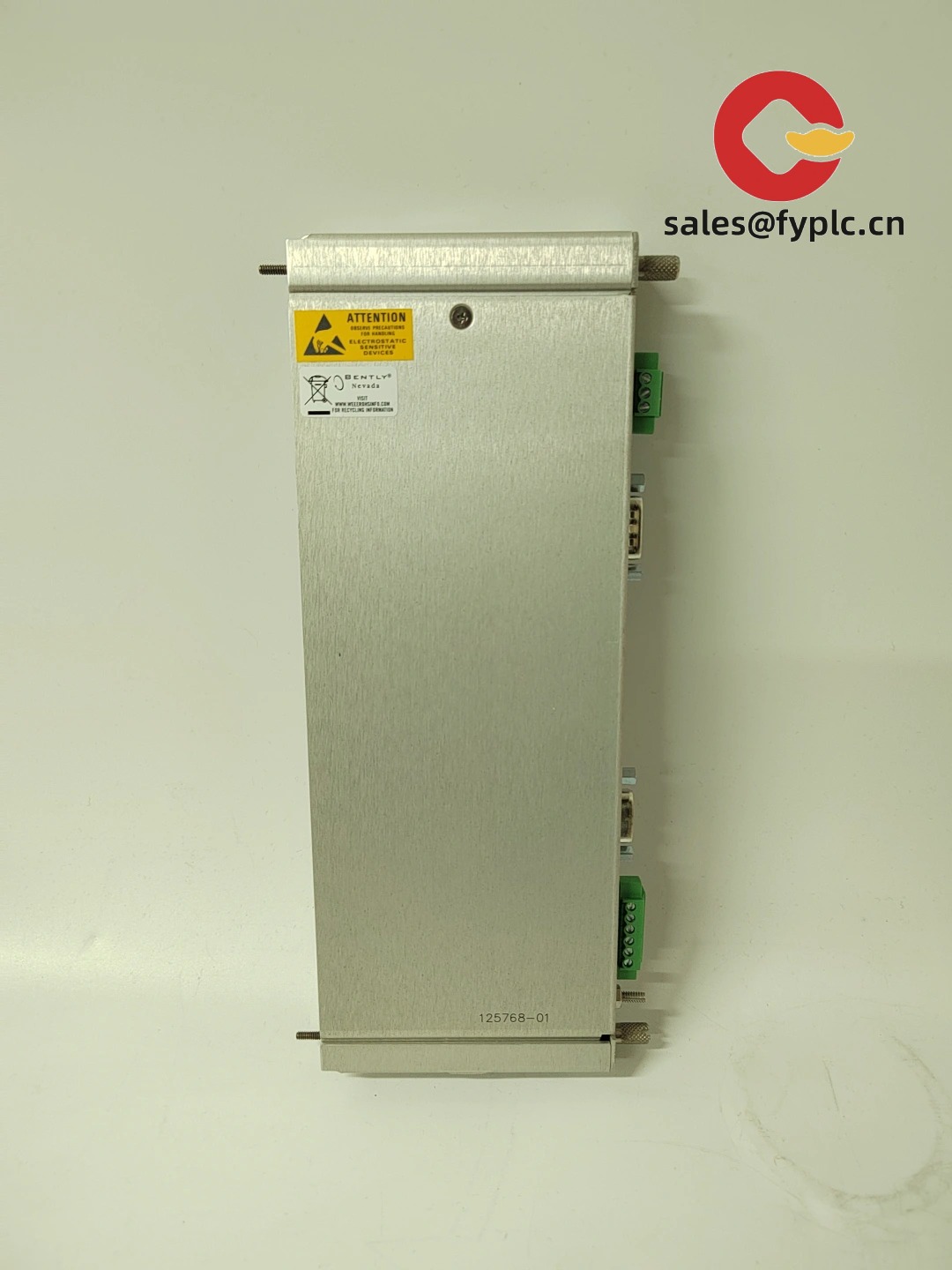

Bently Nevada 3500/20 125768-01 — Dual-Channel Monitor for Machinery Protection Systems

Used in over 80% of Fortune 500 oil & gas and power generation facilities, the Bently Nevada 3500/20 is the workhorse of the 3500 series—designed not just to monitor vibration, but to make intelligent, real-time decisions about machine health. The 125768-01 variant adds dual-channel capability with built-in relay outputs and configurable alarm logic, making it a go-to for critical centrifugal compressors, steam turbines, and large motors where redundancy and fast response matter.

One thing I appreciate is how straightforward it is to integrate into legacy 3500 racks—even if you’re upgrading from an older 3500/15 or 3500/25. It slots in without rewiring, and the front-panel LEDs give immediate status feedback (no laptop required for basic diagnostics). From my experience, field engineers typically get it commissioned in under 45 minutes, even on night shifts.

Key Features

• Dual independent channels — Each monitors velocity (0.1–10 kHz) or acceleration (0.5–20 kHz), with separate alarm and danger thresholds. In practice, this means you can assign Channel A to radial vibration and Channel B to axial position—without cross-talk or timing drift.
• Four programmable relays — Two per channel, supporting latched or auto-reset behavior. A refinery customer recently used these to trigger independent shutdowns for high-vibration *and* high-temperature events—something their old single-channel unit couldn’t handle cleanly.
• Real-time waveform capture — Stores up to 4,096 samples per channel at user-selectable rates (up to 100 kHz). Useful for post-event root-cause analysis—not just trending.
• Built-in self-test & sensor verification — Runs automatic checks during power-up and every 24 hours. If a probe cable degrades or a gap voltage drifts >10%, it flags it—before the first alarm ever fires.
• Compatible with all 3500 rack backplanes — No firmware upgrade needed for 3500/16, /22, or /25 chassis. You might notice that newer 3500/33 racks add Ethernet support, but the /20 doesn’t require it—it works fine over the native 3500 bus.

Technical Specifications

Application Fields

This module shines where machinery failure carries high consequence: offshore platform gas compressors running 24/7, combined-cycle power plant feedwater pumps, and petrochemical reactor agitators handling hazardous materials. It’s also widely deployed in pulp & paper mills—especially on refiners and calender stacks—where bearing wear patterns are subtle and early detection saves weeks of unplanned downtime. In many cases, users pair it with 3500/33 or 3500/42 modules to layer trend data with real-time protection logic.

Advantages & Value

From a procurement standpoint, the 3500/20 delivers strong ROI—not because it’s cheap (it isn’t), but because it reduces integration risk and long-term support friction. Since it shares firmware, documentation, and spare parts across decades of installed base, training costs stay low and replacement lead times predictable. Also worth noting: unlike some third-party alternatives, its relay outputs meet SIL 2 requirements when configured per ISA-84 guidelines—so no extra safety validation overhead for your functional safety team.

And yes—it’s still actively supported by Baker Hughes (who acquired Bently Nevada in 2002). Firmware updates continue through 2026, and technical bulletins are published quarterly. One midsize utility told us they’ve run identical 125768-01 units since 2011—with only one replacement due to lightning surge, not component fatigue.

Installation & Maintenance

Install it in a NEMA 12 or IP54-rated cabinet with ≥100 mm clearance above/below for convection cooling. Avoid mounting near VFDs or large transformers—the /20 tolerates moderate EMI, but sustained 2 kV/m fields will degrade signal integrity. Use shielded twisted-pair for probe wiring, grounded at the monitor end only.

For maintenance: clean vents every 6 months (compressed air, <30 psi), verify relay contact resistance annually (<50 mΩ), and re-calibrate input channels every 2 years—or after any physical shock exceeding 50 g. Firmware updates should be applied during scheduled outages; the process takes ~90 seconds and preserves all configuration.

Quality & Certifications

CE (2014/30/EU EMC Directive), UL 61010-1 (3rd Ed.), RoHS 2011/65/EU compliant. Certified to IEC 61508 SIL 2 (hardware fault tolerance = 1) when used per Bently Nevada’s Safety Manual (Doc. 22227-01). Backed by a full 365-day warranty—covering parts, labor, and return shipping if defective upon arrival.
