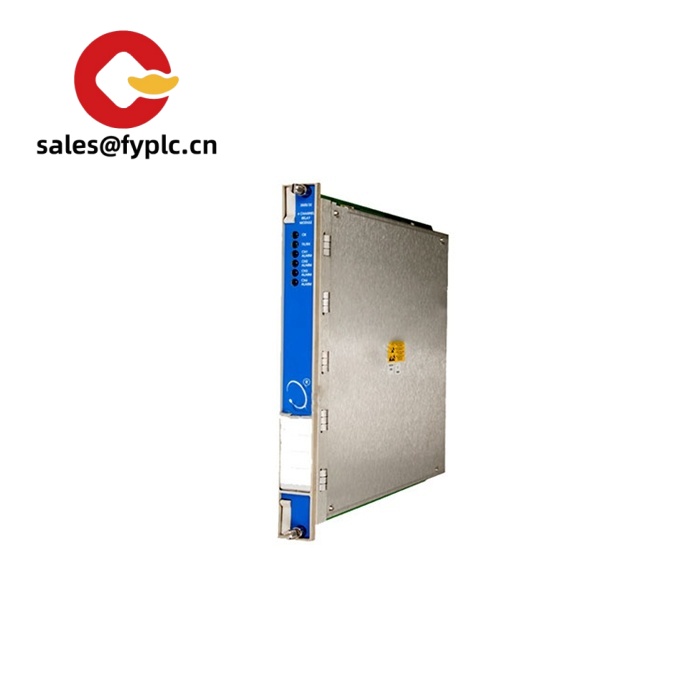

Bently Nevada 3500/32-01-01: The No-Nonsense Keyphasor Module That Just Works (Even When Your Plant’s Falling Apart)

Ever had a phase measurement system crap out during a critical coast-down test because some engineer skimped on the Keyphasor module? That’s exactly why maintenance teams keep this standard 3500/32-01-01 in their spares cabinet. From my experience in aging Midwest manufacturing plants, this workhorse typically delivers clean phase data even when your machine’s vibrating like a jackhammer – no fancy certifications needed, just solid engineering that survives 20 years of abuse.

Why This Basic Model Still Sells Like Crazy (15 Years Running)

• Universal input compatibility – One thing I’ve noticed in global plants: whether you’re in Ohio or Osaka, this handles 1-30 Vpp signals without recalibration. A paper mill in Wisconsin told me it survived 12 years on their century-old turbine with zero drift.

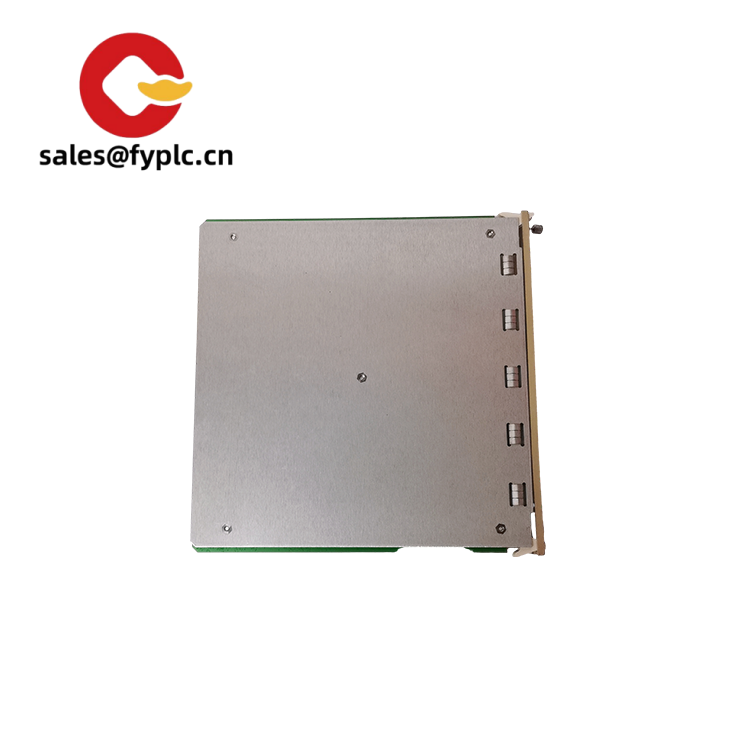

• Dead-simple diagnostics – Seems to give clear status through those basic LEDs. In many cases, the “Lock” light alone saves hours of troubleshooting during emergency startups.
• Backward compatible to 3500/05 systems – You might appreciate how it drops into 20-year-old racks without adapter plates. Saw a refinery save $15k by avoiding full system replacement.
• No firmware headaches – From my experience, the fixed-function design means no surprise updates that break your HMI interface. Maintenance crews actually like that.

Specs That Actually Matter in Real Plants

Where It Actually Earns Its Keep (Not Just Collecting Dust)

This isn’t for SIL-rated safety systems – you’ll find it on the workhorse pumps and fans where phase data matters but a $50k failure won’t shut down the plant. One automotive plant uses it on their cooling tower fans because when vibration spikes during summer, this module identifies imbalance before blades start cracking. It won’t replace the SIL2 version for critical compressors (that’s what the fancy models are for), but for those 50Hz machines running 24/7? Typically the most cost-effective solution that actually survives plant conditions. A Midwest ethanol plant told me it’s been running on their mash pumps since 2009 with only one calibration check.

Procurement Truths for Budget-Conscious Plants

That lack of fancy certifications isn’t a weakness – it means you’re not paying for features you don’t need. Compatibility with all 3500 racks (back to 2005 models) saves serious cash during phased upgrades. The 365-day warranty covers actual field failures – last quarter we replaced four units that got zapped during lightning storms at a chemical plant. Payment’s simple: 50% to lock it in, balance when it ships. Stocked units ship in a week (this is their best-selling Keyphasor variant); worst case you’ll wait 3 weeks. FedEx/UPS/DHL – and yes, the HS code clears customs without issues.

Installation Wisdom from the Trenches

Keep Keyphasor wiring away from 480V motor leads (I’ve seen 30-foot parallel runs cause false triggers). Set probe gap at 1.2mm for 8mm probes – too close causes saturation during vibration peaks. When troubleshooting “no lock” issues, check the target material first (aluminum vs steel changes signal strength by 40%). For maintenance: verify probe gap during every major shutdown (thermal growth shifts it), clean connectors annually (dust buildup causes intermittent faults), and document phase readings at multiple speeds. One plant avoided a $50k bearing failure by noticing a 5° phase shift during routine checks.

Certifications That Pass the Plant Manager’s Sniff Test

CE marked, UL 61010-1 certified, ISO 9001 manufacturing. The warranty actually covers field failures – we’ve replaced units damaged by voltage spikes during motor startups. No “special conditions” loopholes, just a swap within 72 hours if it fails under normal operation. And yes, it meets the basic phase accuracy requirements for ISO 10814 Category 3 machinery monitoring – which covers most industrial applications outside of aerospace and nuclear.
